Product Catalog

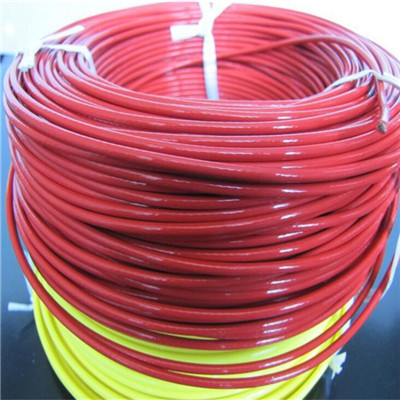

FEP PFA PTFE insulation silicone rubber cable
 |
Product Name:
FEP PFA PTFE insulation silicone rubber cable
Number :
 |
Product Description:
FEP, PFA, PTFE insulation silicone rubber cable
Product features:
Rated voltage: 300/500V
Working temperature: -60 ~ 200 ℃
Construction:
conductor material: tin copper wire or silver plated copper wire
insulation materials: FEP, PFA, PTFE
shielding materials: silver plated copper wire, tin copper wire or aluminum foil
sheath material: silicone rubber
colors: red, yellow, blue, white, black, green, brown, orange, gray, etc.,
Application:
used for various mobile machine, aviation, steel, power plants, glass manufacturing, petrochemical, temperature sensor and high temperature environment.
| Section | Conductor No./Dia |
Overall Diametre (mm) |
|||
| (mm2) | (mm) | Single | 2-core | 3-core | 4-core |
| 0.5 | 7×0.30 | 3.5 | 4.7*7.6 | 8 | 9.3 |
| 0.75 | 11×0.30 | 3.7 | 4.8*7.9 | 8.4 | 9.3 |
| 1 | 14×0.30 | 3.8 | 5.0*8.2 | 8.7 | 9.5 |
| 1.5 | 21×0.30 | 4 | 5.2*8.5 | 9.1 | 10.2 |
| 2 | 28×0.30 | 4.2 | 5.4*9.0 | 9.5 | 10.8 |
| 2.5 | 35×0.30 | 4.4 | 5.6*9.4 | 10 | 11.2 |
| 3.5 | 49/0.30 | 5 | 5.8*9.5 | 10.5 | 11.6 |
| 4 | 56×0.30 | 5.3 | 6.3*10.8 | 11.5 | 13 |
| 6 | 84×0.30 | 6 | 6.8*11.8 | 13.1 | 14.8 |
