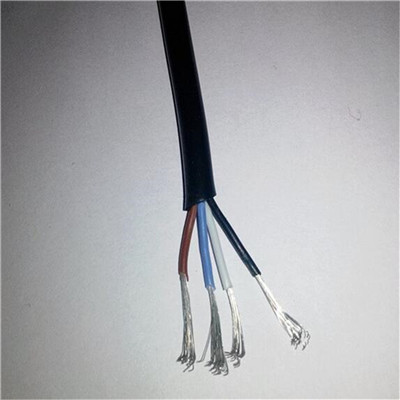

YG model silicone rubber high temperature cable 180 DEGREE
 |
Product Name:
YG model silicone rubber high temperature cable 180 DEGREE
Number :
 |
Product Description:
YG model silicone rubber high temperature cable 180 DEGREE
Product model: IEC 60245 03 (YG)
Standards: GB5013.3-2008
Product features:
1, Rated voltage: 300/500V
2, Working temperature: 300/500-60 ~ 180 ℃
Construction:
conductor: twisted copper wire or tin plated copper wire
insulation: silicon rubber
braiding: glass fiber
color: red/yellow/blue/white/black/green/brown
Characteristic:
It has excellent high temperature low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life.and soft, easy to install.
high voltage resistance, ageing resistance, long service life.and soft, easy to install.
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns,
burner and high temperature environment.
burner and high temperature environment.
| Cable Size (mm2) |
Conductor structure (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 2,5 | 50 x 0,26 | 9,2 | 50,0 | 146,0 |
| 3 x 2,5 | 50 x 0,26 | 9,7 | 75,0 | 179,0 |
| 4 x 2,5 | 50 x 0,26 | 10,6 | 100,0 | 222,0 |
| 5 x 2,5 | 50 x 0,26 | 11,6 | 125,0 | 268,0 |
| 7 x 2,5 | 50 x 0,26 | 12,6 | 175,0 | 339,0 |
| 12 x 2,5 | 50 x 0,26 | 17,1 | 300,0 | 609,0 |
