Zhengzhou Wubai Cable and Wire Co.,Ltd

solar DC cable, battery cable, earth cable,pump cable, DC/AC electrical cable

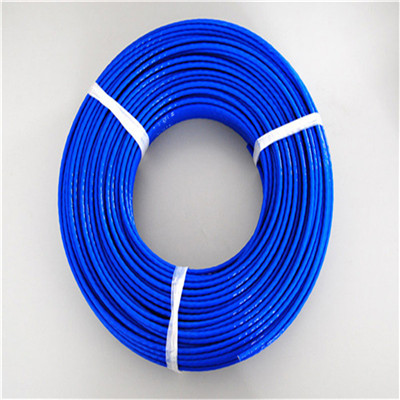

UL3068 30AWG TO 16AWG SILICONE RUBBER INSULATION WIRE CABLE

Product Name:

UL3068 30AWG TO 16AWG SILICONE RUBBER INSULATION WIRE CABLE

Number :

Product Description:

UL3068 30AWG TO 16AWG SILICONE RUBBER INSULATION WIRE CABLE

Rated voltage: 300/500V
Working temperature: -60 ~ 200 ℃,

Construction:
conductor: solid or stranded tinned copper wire,
insulation: silicon rubber,
color: red/yellow/blue/white/black/green/brown

Characteristic:
it has excellent high temperature &low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life.And soft, easy to install.

Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns,
burner and high temperature environment.

UL3068 30AWG TO 16AWG SILICONE RUBBER INSULATION WIRE CABLE

Silicone Rubber Insulated Wire
AWG	Conductor No./Dia	Overall Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Packing Length(metre)
30	7/0.103	0.31	0.76	1.83	610
28	7/0.127	0.38	0.76	1.9	610
26	7/0.160	0.49	0.76	2.01	305
24	7/0.203	0.61	0.76	2.13	305
22	7/0.254	0.76	0.76	2.28	305
20	7/0.310	0.94	0.76	2.47	305
18	7/0.39	1.17	0.76	2.71	305
16	7/0.5	1.5	0.76	3.02	305
