Heat Resistant Flex Electric Wiring Silicone cables

Product Name:

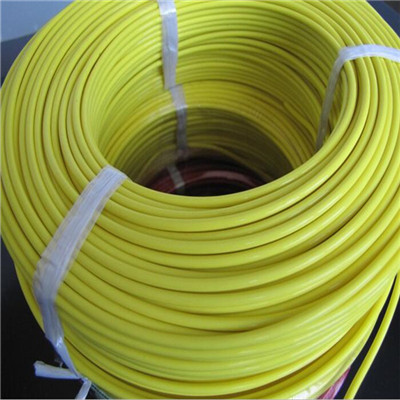

Heat Resistant Flex Electric Wiring Silicone cables

Number :

Product Description:

Heat Resistant Flex Electric Wiring Silicone cables
Application

Silicone cables are employed where insulations are subjected to extreme changes in temperature. They are heat resistant up
to 180 Deg C, intermittently 220 Deg C.

Due to good resistance in all weather conditions these cables can also be employed at temperatures as low as - 60 Deg C.

Upon and after combustion a residue of pure silica is produced and the cables continue to function.

However, it is usual to provide a glass braid around the cable to prevent a break down of the silica during and after a fire.
Silicone
cables are halogen free and are most suitable for power plants. They have become indispensable in a wide range of industrial
sectors,
in foundries, steel and hot rolling mills, cooking equipment, cement, glass and ceramic factories, ship and aircraft construction, and
oil burners.

Specification

Conductors: Flexible class 5 tinned copper conductors to BS 6360

Insulation: Silicone rubber:SIF

Treated glass fibre braid:SIF/ GL

Rated Voltage: 300/500V

Minimum bending radius 15*OD

Temp rating - 60 to + 180 Deg C

Available in various colours.

SIF /GL normally white.

Cable Size	Conductor structure	SIF		SIF / GL
(mm2)	(No./mm)	OD(mm)	Weight of cable (KG/KM)	OD(mm)	Weight of cable (KG/KM)
0.5	16/0.20	2.1	8	2.6	12
0.75	24/0.20	2.4	11	2.9	16
1	32/0.20	2.5	14	3	18
1.5	30/0.25	2.8	19	3.3	23
2.5	50/0.25	3.4	30	3.9	35
4	56/0.30	4.2	48	4.7	53
6	84/0.30	5.2	71	5.7	77
10	80/0.40	7	120	7.5	129
16	126/0.40	8.4	180	8.9	198
25	196/0.40	10.3	290	10.8	302
35	270/0.40	11.6	400	12.1	413
50	396/0.40	13.9	550	14.4	578
70	360/0.50	16	750	16.5	815
95	475/0.50	18.4	1000	18.9	1100
