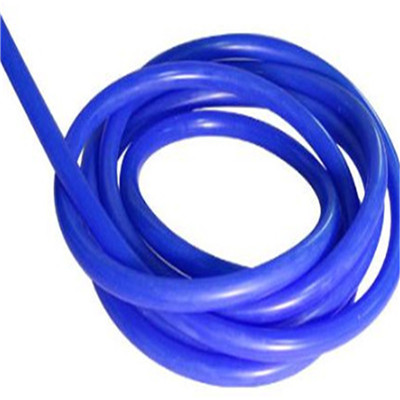

soft silicone rubber wire and cable
 |
Product Name:
soft silicone rubber wire and cable
Number :
 |
Product Description:
soft silicone rubber wire and cable
Application:
Application:
Widely used in a variety of lighting lamp, household appliances, internal fixation of the electrical connector.
Standard:UL
Rated temperature:60~+200°C
Rated Voltage:300V
Test voltage:2500V
Color:White,Blue,Red,Black,Brown,Yellow,Green,Yellow and green |
spec of structure and technical parameters（common）：
|
|||||
|
Nominal area(mm2)
|
Core construction
|
Nominal insulation thickness
|
Nominal OD
|
Maximum DC Resistance at 20℃
|
packing length
|
|
（mm2）
|
Strand/Diameter(mm)
|
（mm）
|
（mm）
|
（Ω/km）
|
（m）
|
|
0.2
|
1×0.50
|
0.65
|
1.8
|
95
|
500
|
|
|
12×0.15
|
0.6
|
1.8
|
95
|
500
|
|
0.3
|
16×0.15
|
0.6
|
1.85
|
71.2
|
500
|
|
0.4
|
23×0.15
|
0.5
|
1.85
|
49.6
|
200
|
|
0.5
|
28×0.15
|
0.6
|
2.2
|
40.1
|
200
|
|
0.75
|
42×0.15
|
0.7
|
2.6
|
26.7
|
200
|
|
1
|
32×0.20
|
0.7
|
2.8
|
20
|
200
|
|
1.5
|
48×0.20
|
0.7
|
3.1
|
13.7
|
100
|
|
2.5
|
49×0.25
|
0.8
|
3.7
|
8.21
|
100
|
|
4
|
56×0.30
|
0.8
|
4.3
|
5.09
|
100
|
|
6
|
84×0.30
|
0.8
|
5.2
|
3.39
|
100
|
|
10
|
84×0.40
|
1
|
6.8
|
1.95
|
100
|
|
16
|
126×0.40
|
1.2
|
8.4
|
1.24
|
100
|
|
25
|
196×0.40
|
1.4
|
10.4
|
0.795
|
100
|
|
Noted:Other sizes and colours available on request
|
|||||
