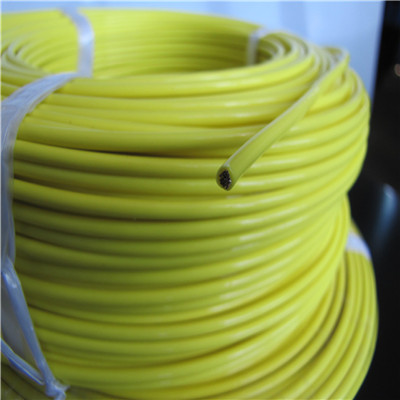

Fiberglass Braided Single Core Silicone Cable
 |
Product Name:
Fiberglass Braided Single Core Silicone Cable
Number :
 |
Product Description:
Fiberglass Braided Single Core Silicone Cable
Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.
Specification
Name: silicone wire cable
Size: 24AWG~16AWG
Feature
Ratings: -60ºC~+200ºC, 300V
Conductor: Nickel Copper, Tinned Copper,
Insulation: Extruded Silicone Rubber
Out covering: braided fiberglass with a high temperature finish
Application
For use as high temperature lead wire for internal wiring of appliances, electronic equipment, and lighting fixtures.
Specification
Name: silicone wire cable
Size: 24AWG~16AWG
Feature
Ratings: -60ºC~+200ºC, 300V
Conductor: Nickel Copper, Tinned Copper,
Insulation: Extruded Silicone Rubber
Out covering: braided fiberglass with a high temperature finish
| Silicone Single Core with Glass fibre braiding cable | ||||
| AWG | No. of Cores |
Conductor Cross Section (mm2) |
Cable OD (mm) |
Copper weight (KG/KM) |
| 24 | 1 | 0.25 | 2.4 | 2.4 |
| 20 | 1 | 0.5 | 2.6 | 4.8 |
| 18 | 1 | 0.75 | 2.9 | 7.2 |
| 17 | 1 | 1 | 3 | 9.6 |
| 16 | 1 | 1.5 | 3.3 | 14.4 |
| 14 | 1 | 2.5 | 3.9 | 24 |
| 12 | 1 | 4 | 4.7 | 38 |
| 10 | 1 | 6 | 5.7 | 58 |
| 8 | 1 | 10 | 7.5 | 96 |
| 6 | 1 | 16 | 8.9 | 154 |
| 4 | 1 | 25 | 10.8 | 240 |
| 2 | 1 | 35 | 12.1 | 336 |
| 1 | 1 | 50 | 14.4 | 480 |
