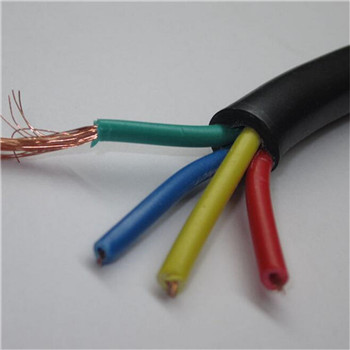

Multi Core Flexible Control Silicone Rubber Electronic Cable
 |
Product Name:
Multi Core Flexible Control Silicone Rubber Electronic Cable
Number :
 |
Product Description:
Multi Core Flexible Control Silicone Rubber Electronic Cable
Application
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant
for permanent temperature up to +180°C,
for permanent temperature up to +180°C,
for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables
can be used at temperatures down to -60°C.
can be used at temperatures down to -60°C.
Cable structure
Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228
Insulation: Silicone rubber.
Insulation: Silicone rubber.
Sheath: Silicone rubber.
Characteristics of cable
Continuous working temperature :
-60°C to +180°C. Max: at +220°C.
Minimum bending radius 7.5*OD
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Working Voltage:300/500 V
Test Voltage:2000 V
| Cable Size (mm2) |
Conductor structure (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 0,75 | 24 x 0,21 | 6,4 | 15,0 | 63,0 |
| 3 x 0,75 | 24 x 0,21 | 6,8 | 22,5 | 76,0 |
| 4 x 0,75 | 24 x 0,21 | 7,8 | 30,0 | 101,0 |
| 5 x 0,75 | 24 x 0,21 | 8,5 | 37,5 | 120,0 |
| 7 x 0,75 | 24 x 0,21 | 9,2 | 52,5 | 148,0 |
| 2 x 1 | 32 x 0,21 | 6,6 | 20,0 | 71,0 |
| 3 x 1 | 32 x 0,21 | 7,4 | 30,0 | 93,0 |
| 4 x 1 | 32 x 0,21 | 8,1 | 40,0 | 113,0 |
| 5 x 1 | 32 x 0,21 | 8,8 | 50,0 | 136,0 |
| 7 x 1 | 32 x 0,21 | 9,5 | 70,0 | 169,0 |
