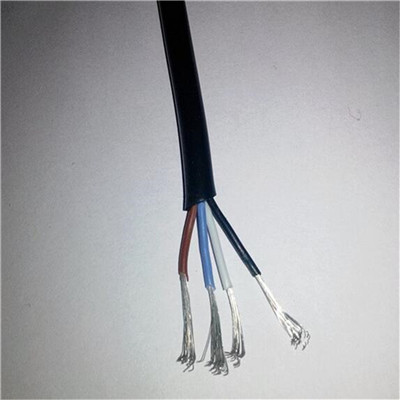

Low voltage multi core flexible silicone cable
 |
Product Name:
Low voltage multi core flexible silicone cable
Number :
 |
Product Description:
Low voltage multi core flexible silicone cable
Application
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant
for permanent temperature up to +180°C,
for permanent temperature up to +180°C,
for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables
can be used at temperatures down to -60°C.
can be used at temperatures down to -60°C.
Cable structure
Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228 Insulation: Silicone rubber.
Insulation: Silicone rubber.
Characteristics of cable
Continuous working temperature :
-60°C to +180°C. Max: at +220°C.
Minimum bending radius 7.5*OD
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Working Voltage:300/500 V
Test Voltage:2000 V
| Cable Size (mm2) |
Conductor structure (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 1,5 | 30 x 0,26 | 7,6 | 30,0 | 97,0 |
| 3 x 1,5 | 30 x 0,26 | 8,0 | 45,0 | 117,0 |
| 4 x 1,5 | 30 x 0,26 | 8,8 | 60,0 | 145,0 |
| 5 x 1,5 | 30 x 0,26 | 9,6 | 75,0 | 175,0 |
| 7 x 1,5 | 30 x 0,26 | 10,9 | 105,0 | 220,0 |
| 12 x 1,5 | 30 x 0,26 | 14,6 | 180,0 | 413,0 |
| 16 x 1,5 | 30 x 0,26 | 16,2 | 240,0 | 520,0 |
| 24 x 1,5 | 30 x 0,26 | 20,4 | 360,0 | 811,0 |
