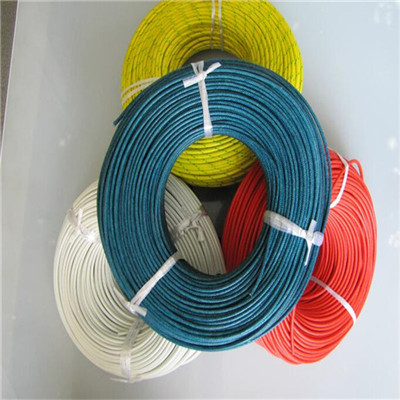

Silicone Cover Stranded-Core Wire
 |
Product Name:
Silicone Cover Stranded-Core Wire
Number :
 |
Product Description:
Silicone Cover Stranded-Core Wire
Rated voltage: 300/500V
Working temperature: -60 ~ 200 ℃,
Construction:
conductor: solid or stranded tinned copper wire,
insulation: silicon rubber,
color: red/yellow/blue/white/black/green/brown
conductor: solid or stranded tinned copper wire,
insulation: silicon rubber,
color: red/yellow/blue/white/black/green/brown
Characteristic:
it has excellent high temperature &low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life.And soft, easy to install.
Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns,
burner and high temperature environment.
|
Silicone Rubber Insulated Wire |
|||||
|
AWG
|
Conductor No./Dia
|
Overall Diameter (mm)
|
Insulation Thickness (mm)
|
Overall Diameter (mm)
|
Packing Length(metre)
|
|
30
|
7/0.103
|
0.31
|
0.76
|
1.83
|
610
|
|
28
|
7/0.127
|
0.38
|
0.76
|
1.9
|
610
|
|
26
|
7/0.160
|
0.49
|
0.76
|
2.01
|
305
|
|
24
|
7/0.203
|
0.61
|
0.76
|
2.13
|
305
|
|
22
|
7/0.254
|
0.76
|
0.76
|
2.28
|
305
|
|
20
|
7/0.310
|
0.94
|
0.76
|
2.47
|
305
|
|
18
|
7/0.39
|
1.17
|
0.76
|
2.71
|
305
|
|
16
|
7/0.5
|
1.5
|
0.76
|
3.02
|
305
|
