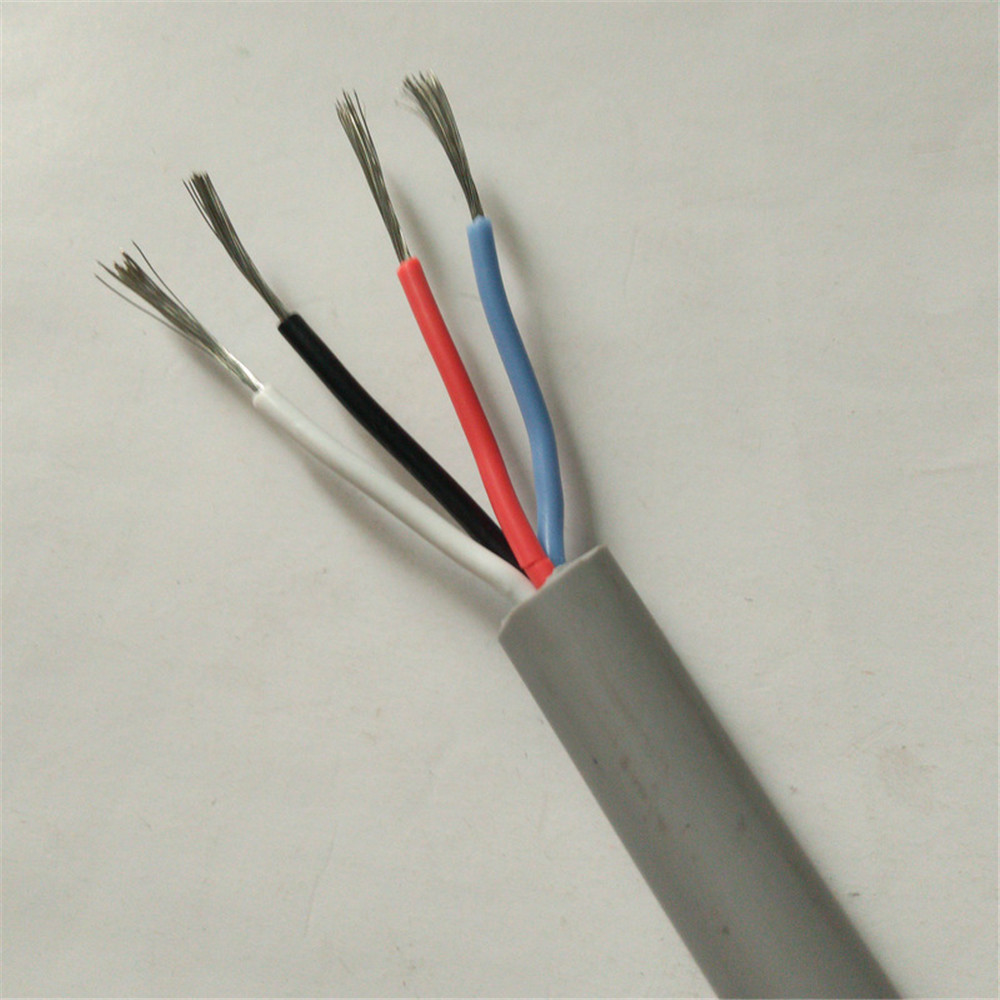

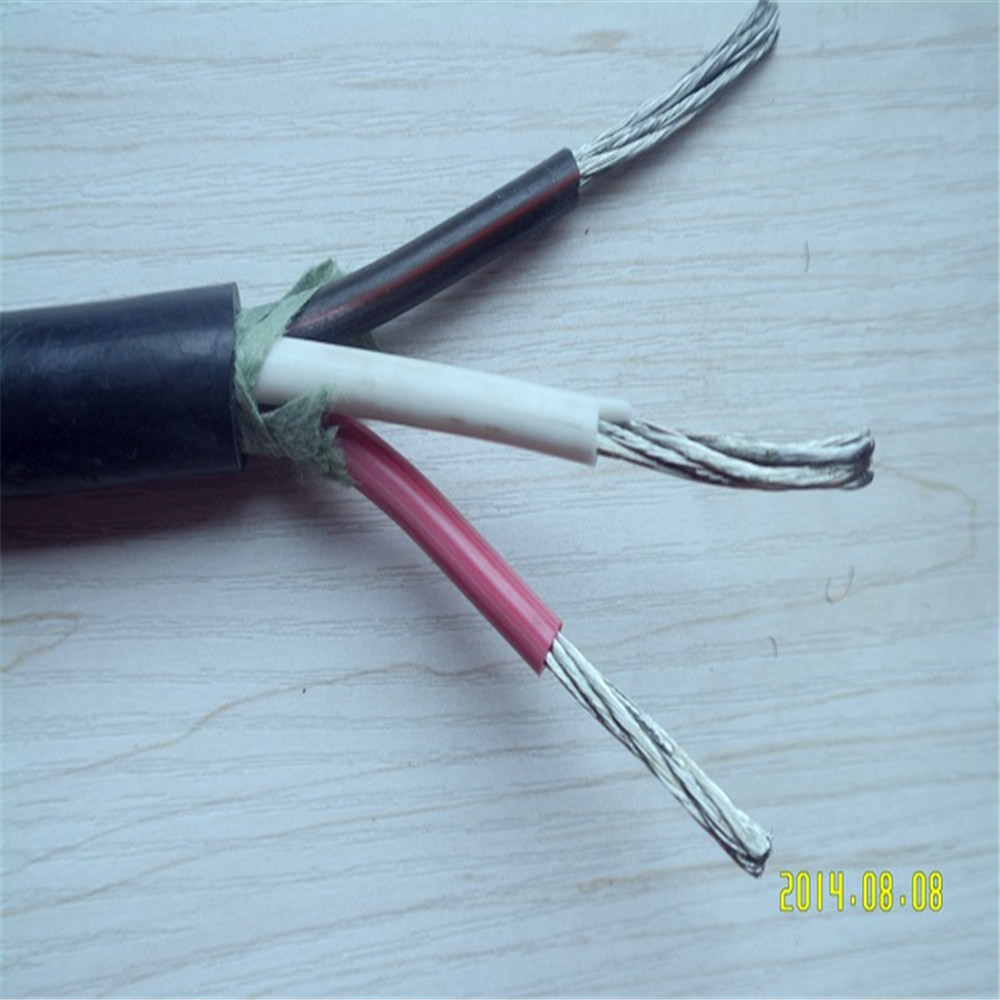

silicone rubber high temperature resistant power cable
 |
Product Name:
silicone rubber high temperature resistant power cable
Number :
 |
Product Description:
silicone rubber high temperature resistant power cable
Test Voltage:2000 V
Application
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant
for permanent temperature up to +180°C,
for permanent temperature up to +180°C,
for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables
can be used at temperatures down to -60°C.
can be used at temperatures down to -60°C.
Cable structure
Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228 Insulation: Silicone rubber.
Insulation: Silicone rubber.
Characteristics of cable
Continuous working temperature :
-60°C to +180°C. Max: at +220°C.
Minimum bending radius 7.5*OD
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Working Voltage:300/500 V
| Cable Size (mm2) |
Conductor structure (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 4 | 50 x 0,31 | 10,8 | 80,0 | 210,0 |
| 3 x 4 | 50 x 0,31 | 11,5 | 120,0 | 261,0 |
| 4 x 4 | 50 x 0,31 | 13,2 | 160,0 | 346,0 |
| 5 x 4 | 50 x 0,31 | 14,3 | 200,0 | 418,0 |
| 7 x 4 | 50 x 0,31 | 15,6 | 280,0 | 530,0 |
| 4 x 6 | 84 x 0,31 | 15,6 | 240,0 | 497,0 |
| 5 x 6 | 84 x 0,31 | 17,6 | 300,0 | 631,0 |
| 4 x 10 | 80 x 0,41 | 19,1 | 400,0 | 778,0 |
| 4 x 16 | 128 x 0,41 | 23,4 | 640,0 | 1.197,0 |
| 4 x 25 | 200 x 0,41 | 28,6 | 1,000,0 | 1.827,0 |
