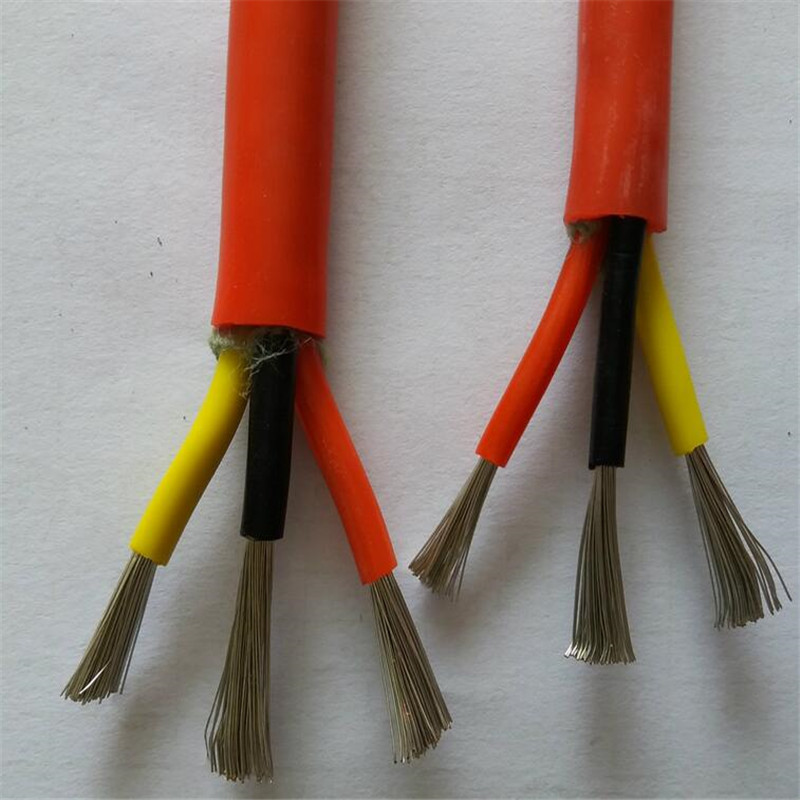

KGG KGGRP KGGP YGG-silicone rubber control cables

This product is suitable for AC rated voltage 450 / 750V, mobile or fixed installation.

Long-term allowable operating temperature of the cable is + 180 ℃ below allow for less than -60 ℃ ambient temperature range.



Features:

soft cable performance, high temperature corrosion resistance, voltage and other advantages.

Silicone rubber cable Model: KGG, KGGP specifications and reference data





Heat-resistant silicone rubber control cable

This product is applicable to the control and monitoring circuit of rated voltage 450 / 750V and below in high temperature industry, such as steel,
smelting, power plant, coking plant, aviation, metallurgy machinery and petrochemical industry. It has excellent resistance to high temperature,
flame retardant, radiation resistance, aging resistance, ozone resistance, water and other characteristics of a good cold resistance, weather resistance.





First, the implementation of standards

Using QB / T341181-0095





Second, the use of conditions

1. Operating temperature -50 ℃ ~ 180 ℃ Recommended bending radius of not less than 6 times the cable diameter

2. Has excellent oxygen resistance, ozone resistance, resistance to ultraviolet radiation, long-term use in the outdoor does not crack

3. Has excellent electrical properties, resistance to arc and arc resistance is also very good

4. Have excellent physical and mechanical properties, in 150 ℃ high temperature, its mechanical properties far superior to general-purpose rubber
cable, has good chemical resistance, resistance to fuel oil and oil properties.

5. Odorless, tasteless, non-toxic, with low surface activity and low moisture absorption properties.

Third, the silicone rubber cable model name and scope of use

Type	Designation	Main Usage
KGGR	Flexible control cables of copper conductor with silicone rubber insulation and sheath	Applicable in the case of indoor lovability, reusing flexibility, etc.
KGGRP	Flexible control cables of copper conductor with braided screen and silicone rubber insulation and sheath	Applicable in the case of indoor lovability, reusing flexibility screened, etc.
KGGRB	Flat control cables of copper conductor with silicone rubber insulation and sheath	Applicable in the case of indoor lovability, reusing flexibility, etc.
KGGRPB	Flat control cables of copper conductor with braided screen and silicone rubber insulation and sheath	Applicable in the case of indoor lovability, reusing flexibility, etc.
