Product Name:

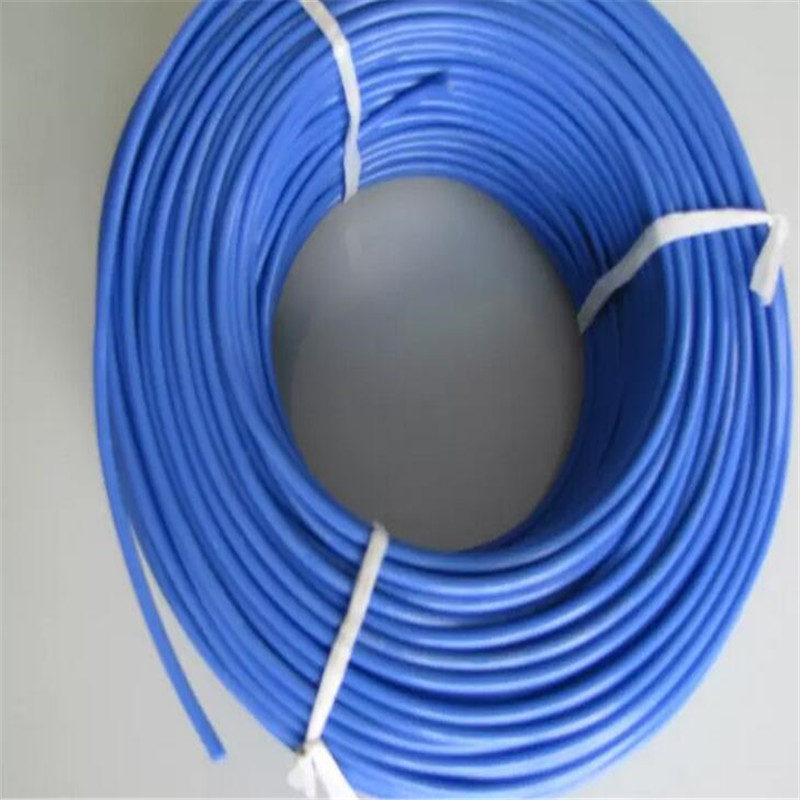

PFA Insulation Material high temperature Cable
Number :
 |
PFA Insulation Material high temperature Cable
Application:
FEP Insulated Thermocouple Wire may be used for general use extension wire for thermocouples
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement.
The construction is similar to pair instrumentation cable but the conductor material is different.
Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control.
The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables.
The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties
as that of the thermocouple used for sensing the temperature.
Construction:
Solid or stranded copper wire
Flame retardant extruded fluoropolymer FEP insulation
Parallel conductors
Flame retardant extruded fluoropolymer FEP jacket
Technical:
Maximum temp up to +200º C, continuous 250°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Excellent abrasion, chemical and moisture resistance
Service temperature of 200 º C
Low friction factor when pulled
Flame retardant; non-propagating in fire conditions
spec of structure and technical parameters（common）：
Nominal area(mm2)
Core construction
Nominal insulation thickness
Nominal OD
Maximum DC Resistance at 20℃
packing length
（mm2）
Strand/Diameter(mm)
（mm）
（mm）
（Ω/km）
（m）
0.2
1×0.50
0.65
1.8
95
500
12×0.15
0.6
1.8
95
500
0.3
16×0.15
0.6
1.85
71.2
500
0.4
23×0.15
0.5
1.85
49.6
200
0.5
28×0.15
0.6
2.2
40.1
200
0.75
42×0.15
0.7
2.6
26.7
200
1
32×0.20
0.7
2.8
20
200
1.5
48×0.20
0.7
3.1
13.7
100
2.5
49×0.25
0.8
3.7
8.21
100
4
56×0.30
0.8
4.3
5.09
100
6
84×0.30
0.8
5.2
3.39
100
10
84×0.40
1
6.8
1.95
100
16
126×0.40
1.2
8.4
1.24
100
25
196×0.40
1.4
10.4
0.795
100
Noted:Other sizes and colours available on request
