Application

Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant
for permanent temperature up to +180°C,

for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables
can be used at temperatures down to -60°C.



Cable structure

Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360  and IEC 60228 Insulation: Silicone rubber.

Insulation: Silicone rubber.

Characteristics of cable

Continuous working temperature :

-60°C to +180°C. Max: at +220°C.

Minimum bending radius 7.5*OD

Resistance to sunlight.

Halogen-free.

Does not spread flame.

Working Voltage:300/500 V



Test Voltage:2000 V

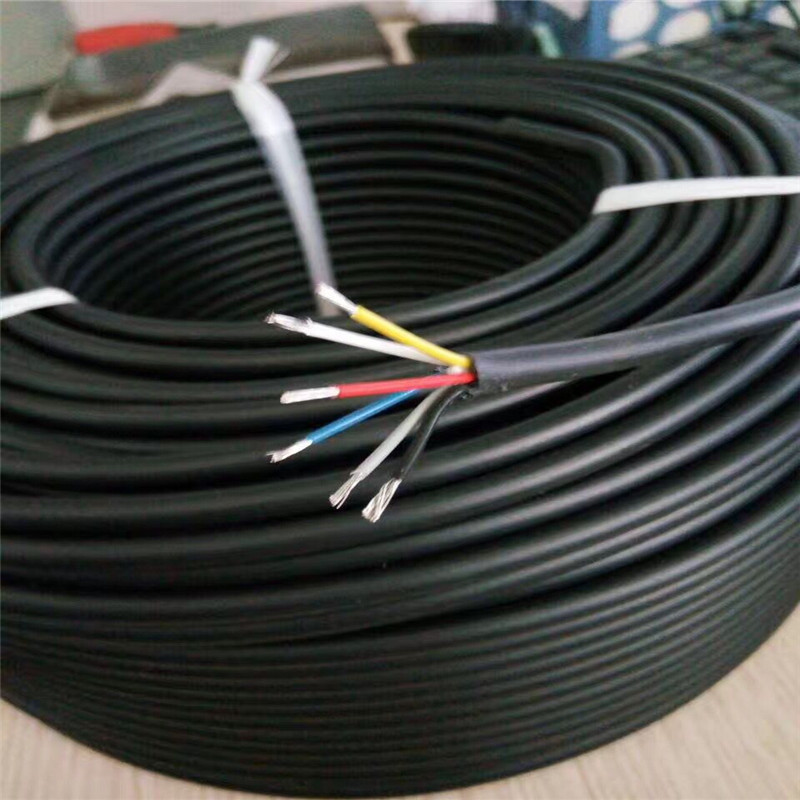

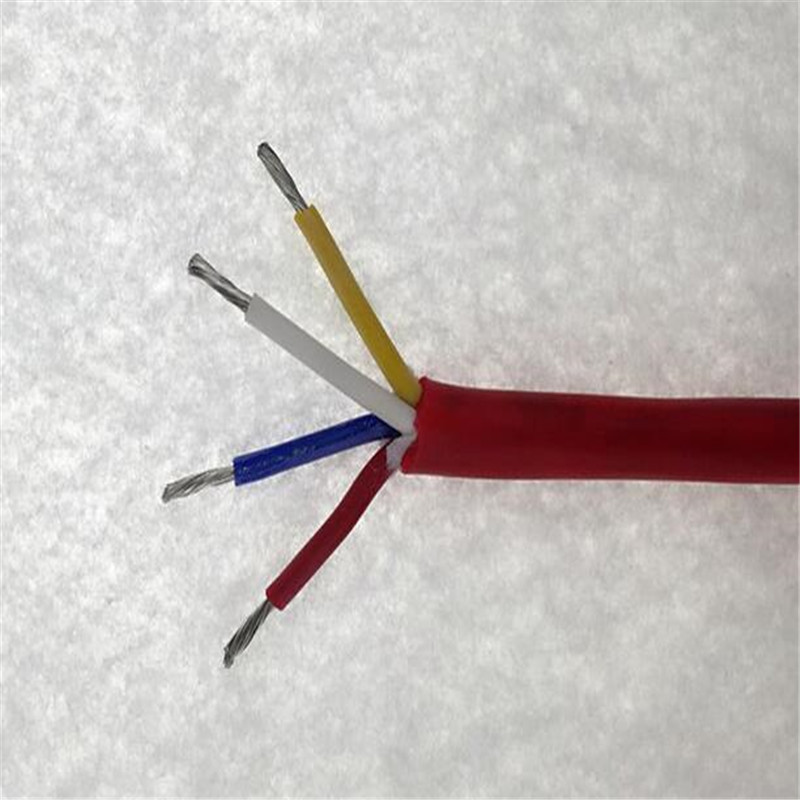

multi core, halogen-free silicone cable
Cable Size  (mm2)	Conductor  structure  (No./mm)	Cable OD (mm)	Copper  weight  (KG/KM)	Cable Weight  (KG/KM)
2 x 1,5	30 x 0,26	7,6	30,0	97,0
3 x 1,5	30 x 0,26	8,0	45,0	117,0
4 x 1,5	30 x 0,26	8,8	60,0	145,0
5 x 1,5	30 x 0,26	9,6	75,0	175,0
7 x 1,5	30 x 0,26	10,9	105,0	220,0
12 x 1,5	30 x 0,26	14,6	180,0	413,0
16 x 1,5	30 x 0,26	16,2	240,0	520,0
24 x 1,5	30 x 0,26	20,4	360,0	811,0
