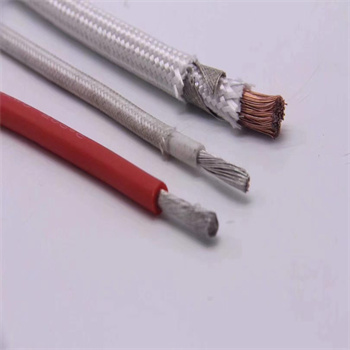

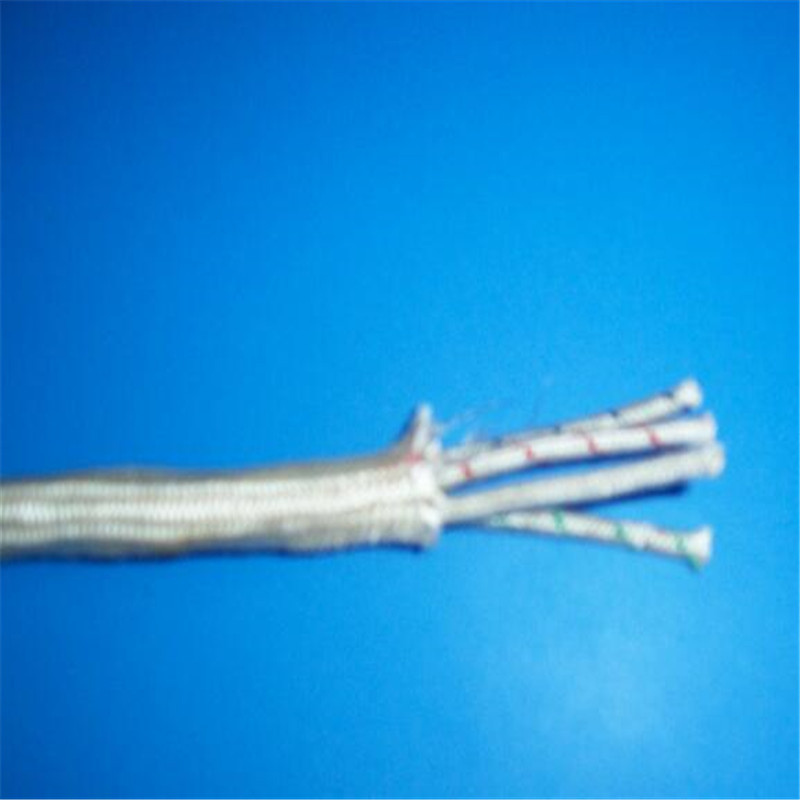

high temperature ignition wire GN500-05 (350 350 degrees ~ 1500degrees)



Conductor Material:Nickel plated copper





Insulation Material:PTFE tape+Fiberglass&coating





Jacket:Stainless Steel Shield





Number of Conductors:3 or 4





cores:2~6 cores





type:MGT -B





temperature range:160deg.C -450deg.C





voltage:300V 600V





color:red balck yellow blue opyional





insulation:fiber mica or other material





shiled:304 316 ss shield











Characteristics





Unique insulation system offers outstanding heat-aged flexibility for longer service life.





Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.





Provides dimensional consistency and uniformity.





Suitable for applications to -60°C





Resists braid pushback.





Application





Used for internal wiring of commercial, industrial,household ovens and lighting fixture.





Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.



500deg.C high temperature heat wire
Size	Conductor	Insulation  Thickness	Braid  Thickness	Diameter
AWG	Structure	(mm)	(mm)	(mm)
24	7/0.2	≥0.4	≥0.18	1.8±0.2
22	7/0.254			2.0±0.2
20	10/0.254			2.2±0.2
18	16/0.254			2.4±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.1±0.2
12	65/0.254			3.8±0.2
10	103/0.254	≥0.51	≥0.38	4.7±0.2
8	163/0.254			6.1±0.2
