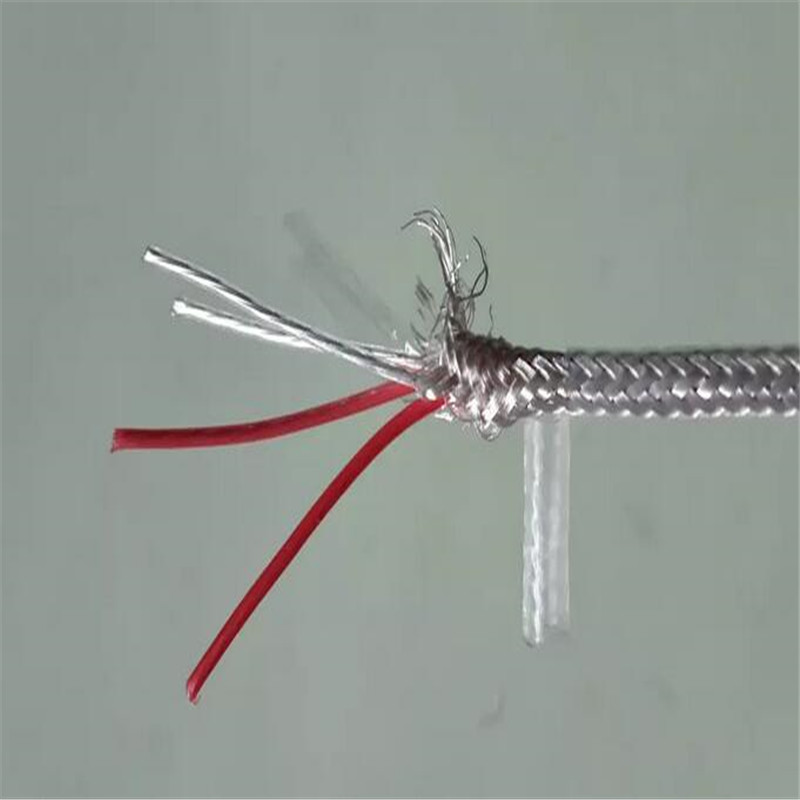

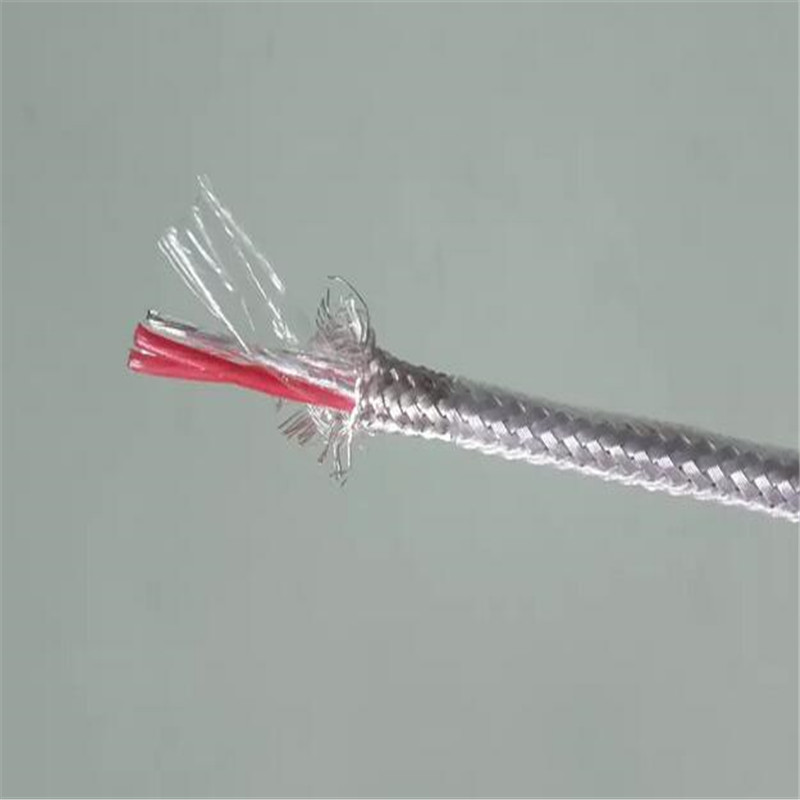

Boiler application High temperature Wire 350 degrees
 |
Product Name:
Boiler application High temperature Wire 350 degrees
Number :
 |
Product Description:
Boiler application High temperature Wire 350 degrees
Product Features:
1, Rated voltage: 300-350V
2, Working temperature: -60 ~ + 450 ℃
3, Conductor: stranded nickel-plated copper wire
4, Insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.
Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required
high temperature wire 350 degrees -1500 degrees
Section
Conductor
No./Dia
Overall Diametre(mm)
(mm2)
(mm)
Single
2-core
3-core
4-core
0.5
7×0.30
3.5
4.7*7.6
8
9.3
0.75
11×0.30
3.7
4.8*7.9
8.4
9.3
1
14×0.30
3.8
5.0*8.2
8.7
9.5
1.5
21×0.30
4
5.2*8.5
9.1
10.2
2
28×0.30
4.2
5.4*9.0
9.5
10.8
2.5
35×0.30
4.4
5.6*9.4
10
11.2
3.5
49/0.30
5
5.8*9.5
10.5
11.6
4
56×0.30
5.3
6.3*10.8
11.5
13
6
84×0.30
6
6.8*11.8
13.1
14.8
Product Features:
2, Working temperature: -60 ~ + 450 ℃
3, Conductor: stranded nickel-plated copper wire
4, Insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required
