fire resistant flame retardant electric wire and cable 500-1000 degree

Product Name:

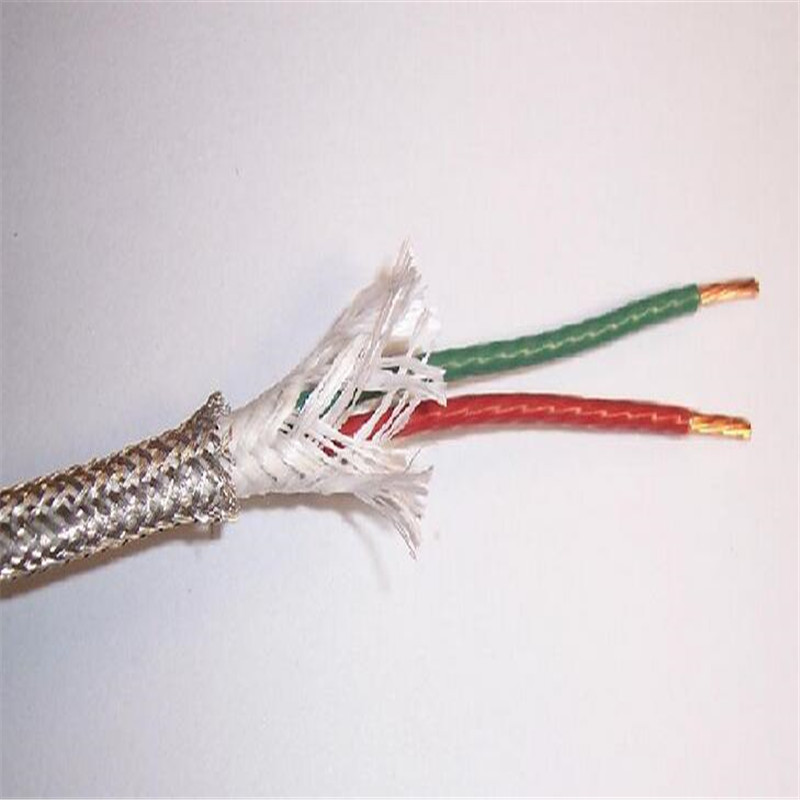

fire resistant flame retardant electric wire and cable 500-1000 degree

Number :

Product Description:

fire resistant flame retardant electric wire and cable 500-1000 degree

Executive Standard: Q / IRMV5-2009
Product Features:
1, Rated voltage: 300 / 500V
2, Working temperature: -60 ~ + 500 ℃
3, Conductor: stranded pure nickel wire
4, insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.

Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.

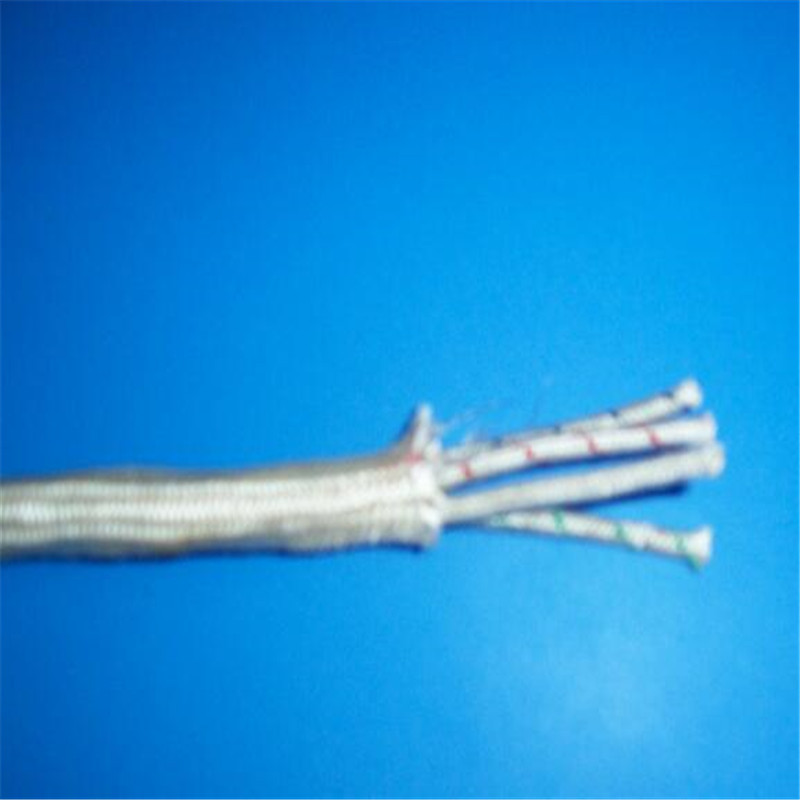

500deg.C high temperature heat wire
Size	Conductor	Insulation Thickness	Braid Thickness	Diameter
AWG	Structure	(mm)	(mm)	(mm)
24	7/0.2	≥0.4	≥0.18	1.8±0.2
22	7/0.254			2.0±0.2
20	10/0.254			2.2±0.2
18	16/0.254			2.4±0.2
16	26/0.254			2.7±0.2
14	41/0.254			3.1±0.2
12	65/0.254			3.8±0.2
10	103/0.254	≥0.51	≥0.38	4.7±0.2
8	163/0.254	≥0.51	≥0.38	6.1±0.2
