Product Name:

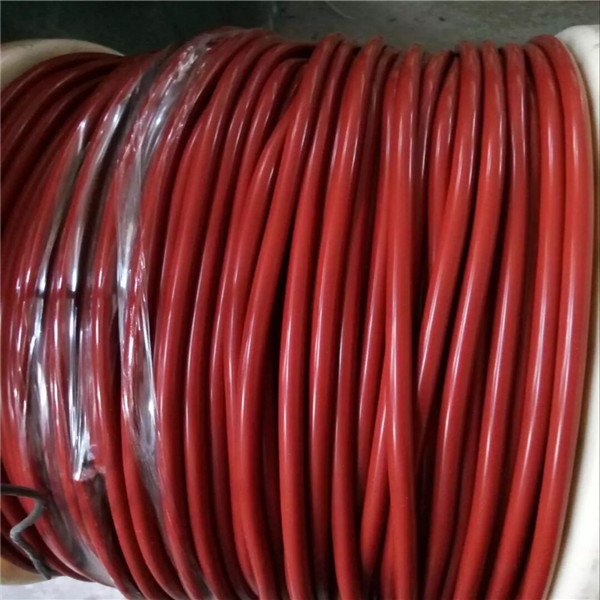

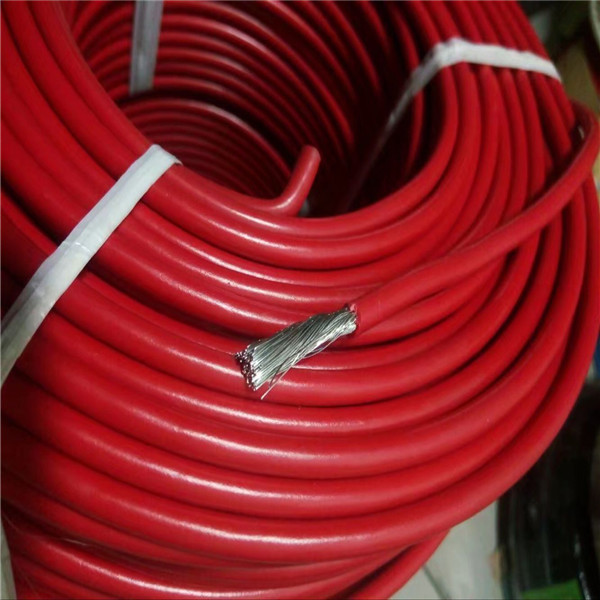

silver plated copper PFA insulated installation wire
Number :
 |
Specification:
Operating Temperature: silver plated copper -60~+200 degree nickel plated copper -60~+250degree
Application:(Under high temperature )used as the linking line of radio device and circuit of precise instrument
Features:light weight, cold resistance, high temperature resistance, Corrosion resistance,soft
AFK-200 silver plated copper PFA insulated installation wire
AFKP-200 silver plated copper PFA insulated, none jackets, screened installation wire
AFK-250 nickel plated copper PFA insulated installation wire
AFKP-250 nickel plated PFA insulated, none jackets, screened installation wire
silver plated copper PFA insulated installation wire
|
Nominal area |
Strand/Diameter |
Nominal insulation thickness |
No. of cores |
Nominal |
Maximum DC Resistance |
|
|
(mm2) |
(mm) |
（mm） |
|
(mm） |
tinned copper wire |
silver plated copper wire |
|
0.035 |
7/0.08 |
0.15 |
≤37cores |
≥1.0 |
568 |
525 |
|
0.05 |
7/0.10 |
0.2 |
|
|
356 |
330 |
|
0.08 |
7/0.12 |
0.2 |
|
|
245 |
227 |
|
0.12 |
7/0.15 |
0.25 |
|
|
160 |
146 |
|
0.2 |
7/0.20 |
0.25 |
|
|
90.4 |
83.5 |
|
0.35 |
19/0.16 |
0.25 |
|
|
53.1 |
49.5 |
|
0.5 |
19/0.18 |
0.25 |
|
|
36.7 |
36 |
|
0.75 |
19/0.23 |
0.28 |
≤19cores |
≥1.2 |
24.6 |
22.7 |
|
1 |
19/0.26 |
0.28 |
|
|
20.4 |
19 |
|
1.5 |
19/0.32 |
0.32 |
|
|
12.7 |
11.7 |
|
2 |
19/0.37 |
0.32 |
|
|
10 |
9.45 |
|
2.5 |
19/0.41 |
0.4 |
|
|
7.43 |
6.86 |
|
4 |
37/0.37 |
0.4 |
≤7cores |
≥1.5 |
4.88 |
4.51 |
|
6 |
37/0.45 |
0.5 |
|
|
3.3 |
3.05 |
|
Noted:Other sizes and colours available on request |
||||||
