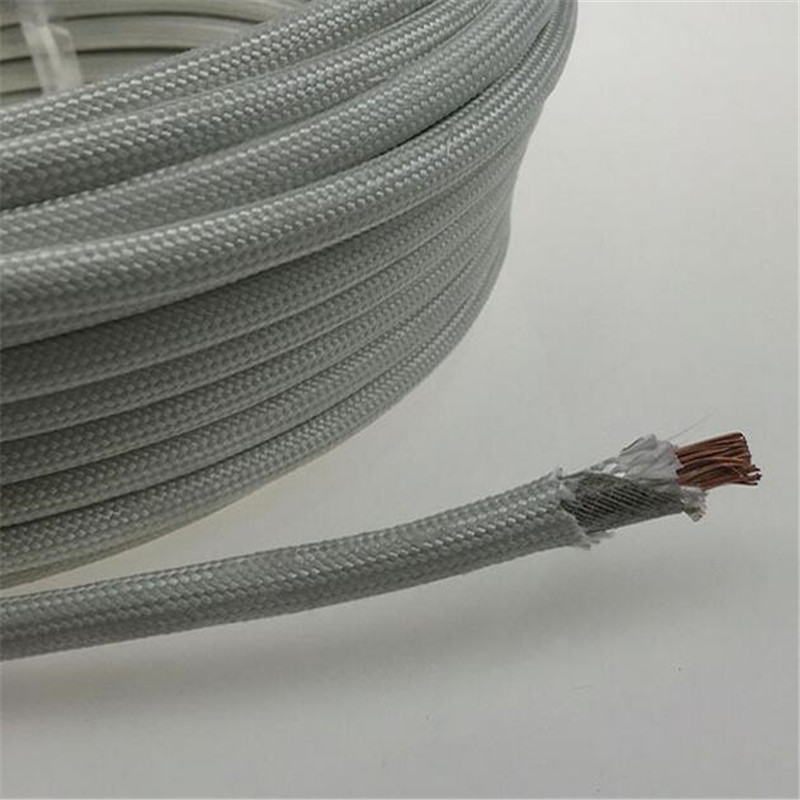

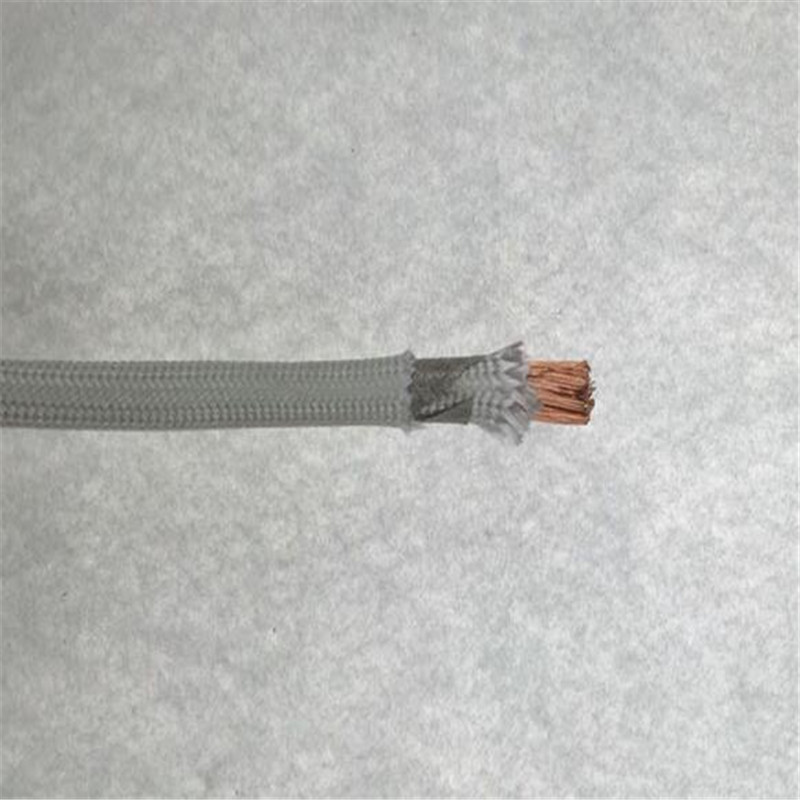

Heat Fire Resistant High Temperature Braided Glass Fibre Wire cable

Executive Standard: Q / IRMV5-2009
Product Features:
1, Rated voltage: 300 / 500V
2, Working temperature: -60 ~ + 500 ℃
3, Conductor: stranded pure nickel wire
4, insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.



Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.



450C special High temperature Shielded Wire or cable
Cable type	Conductor  construction	Insulation  Thickness  (mm)	Shielding  Density%		OD(mm)	Control of       hazardous
3*0.75	24/0.20	0.6±0.1	>85		6.0±0.3	Meet  ROHS  instructions
3*1.0	32/0.20	0.6±0.1			6.3±0.3
3*1.5	30/0.25	0.65±0.1			7.2±0.3
3*2.5	50/0.25	0.7±0.1			8.4±0.3
