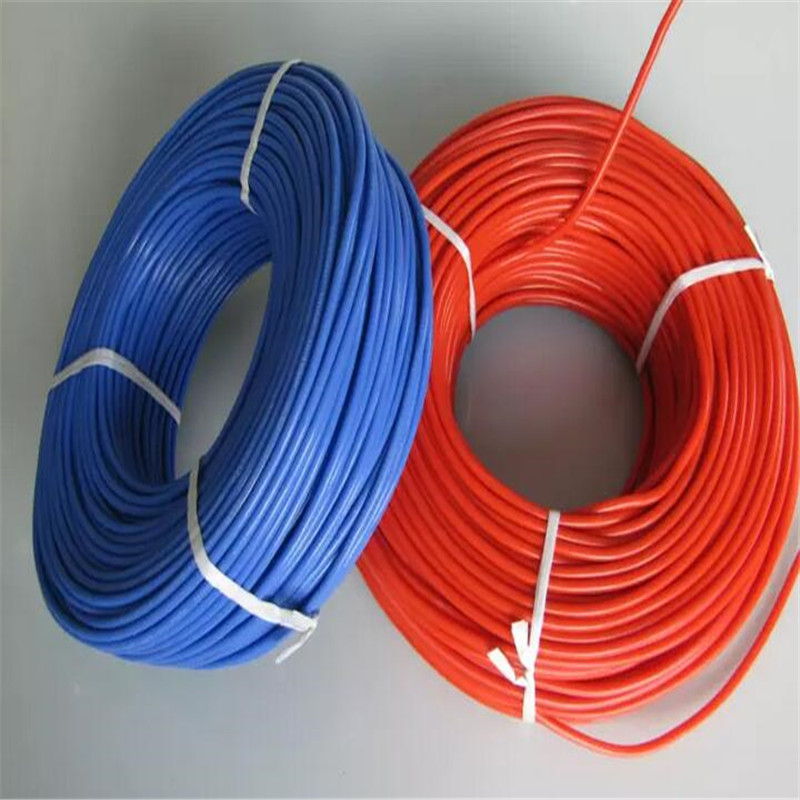

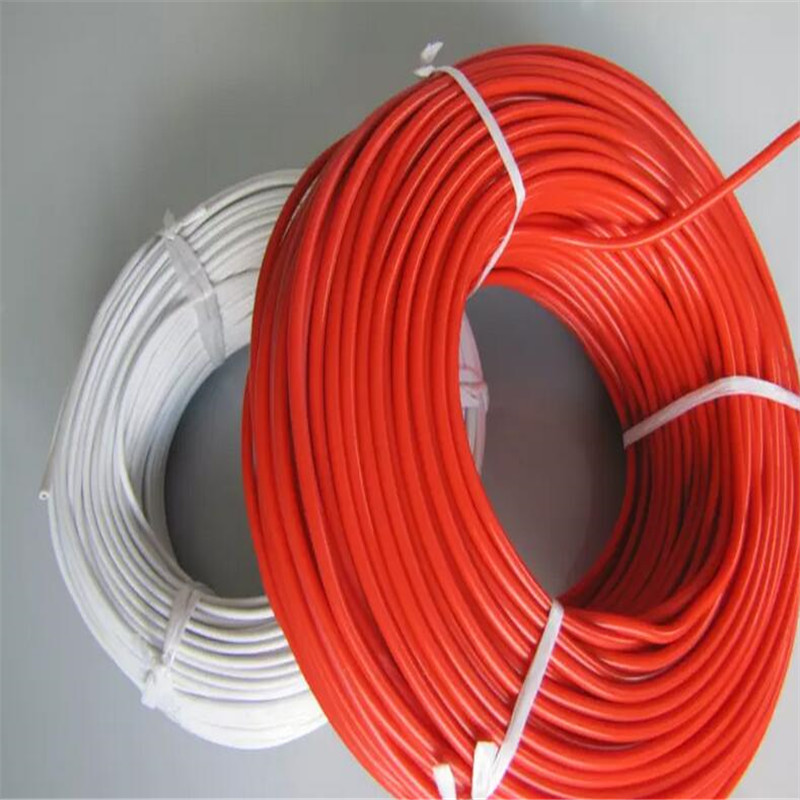

AFP, AFPF, AFBF telfon insulation and sheath multicore cable high temperature cable

Product features:

Working temperature:

65 ℃ 200 ℃  (FEP)

65 ℃ 250 ℃ (PFA),

Rated voltage: 300/500V



Construction:

conductor material: silver plated copper wire, tin copper wire or nickel plated copper wire,

insulation materials: FEP, PFA, PTFE,

shielding materials: silver plated copper wire, tin copper wire or aluminum foil,

sheath material, FEP, PFA sheath

colors: red, yellow, blue, white, black, green, brown, orange, gray, transparent, and so on.



Application:

used for various mobile machine, aviation, steel, power plants, glass manufacturing, petrochemical, temperature sensor
and high temperature environment

AFP, AFPF, AFBF telfon insulation and sheath multicore cable high temperature cable
Nominal  area	Strand/Diameter	Nominal  insulation  thickness	No. of cores	Nominal  sheath  thickness	Maximum DC  Resistance  at 20℃(Ω/km)
(mm2)	(mm)	(mm)		(mm)	tinned  copper  wire	silver plated  copper  wire
0.035	7/0.08	0.15	≤37cores	≥1.0	568	525
0.05	7/0.10	0.2			356	330
0.08	7/0.12	0.2			245	227
0.12	7/0.15	0.25			160	146
0.2	7/0.20	0.25			90.4	83.5
0.35	19/0.16	0.25			53.1	49.5
0.5	19/0.18	0.25			36.7	36
0.75	19/0.23	0.28	≤19cores	≥1.2	24.6	22.7
1	19/0.26	0.28			20.4	19
1.5	19/0.32	0.32			12.7	11.7
2	19/0.37	0.32			10	9.45
2.5	19/0.41	0.4			7.43	6.86
4	37/0.37	0.4	≤7cores	≥1.5	4.88	4.51
6	37/0.45	0.5			3.3	3.05
