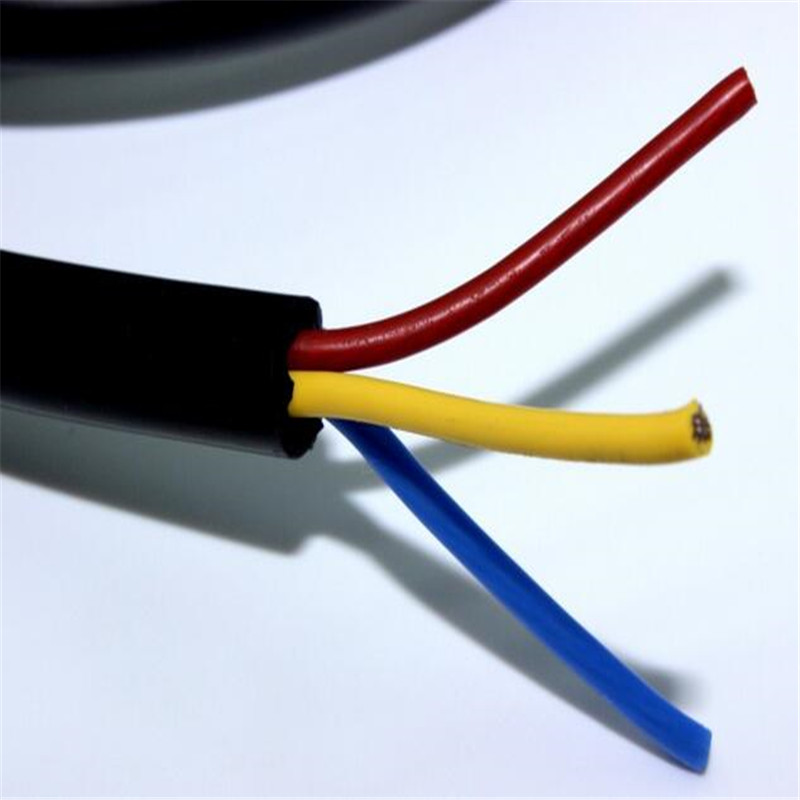

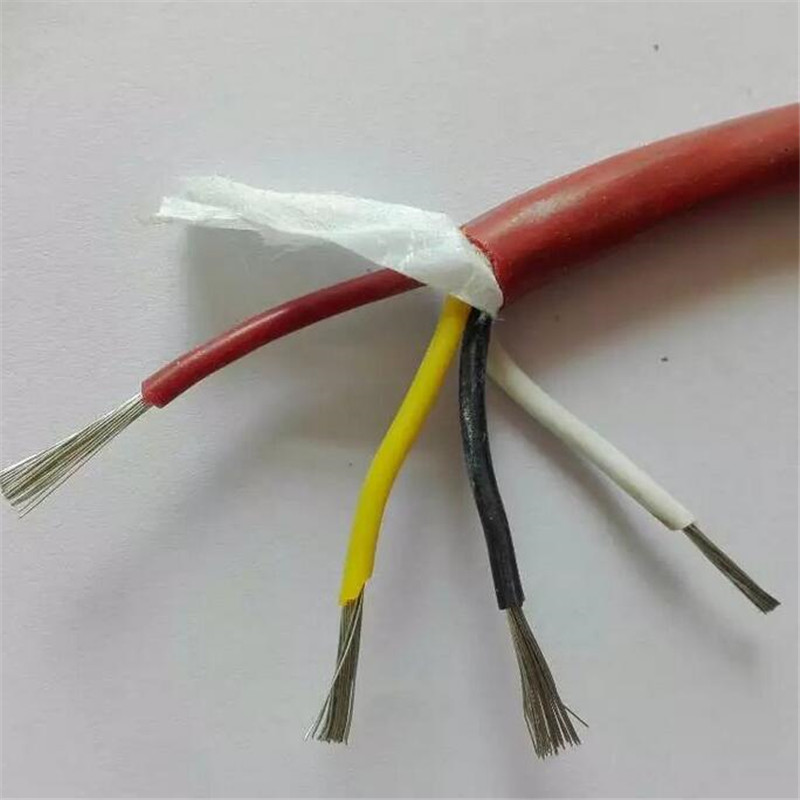

YGZ, YGZP, YGC, YGCP multicore cable of high temperature
 |
Product Name:
YGZ, YGZP, YGC, YGCP multicore cable of high temperature
Number :
 |
Product Description:
YGZ, YGZP, YGC, YGCP multicore cable of high temperature
Product features:
Working temperature: 65 ℃ ∽200 ℃
Rated voltage: 300/500V
Construction:
conductor material: tin copper wire or silver plated copper wire
insulation materials, FEP, PFA, PTFE
shielding materials: silver plated copper wire, tin copper wire or aluminum foil
sheath material: silicone rubber sheath
colors: red, yellow, blue, white, black, green, brown, orange, gray, etc.
Application:
used for various mobile machine, aviation, steel, power plants, glass manufacturing, petrochemical, temperature sensor etc.
YGZF, YGZPF telfon insulation, silicone rubber sheath multicore high temperature cable
Nominal area
Strand/Diameter
Nominal insulation thickness
No. of cores
Nominal sheath thickness
Maximum DC Resistance at 20℃（Ω/km）
(mm2)
(mm)
（mm）
(mm）
tinned copper wire
silver plated copper wire
0.035
7/0.08
0.15
≤37cores
≥1.0
568
525
0.05
7/0.10
0.2
356
330
0.08
7/0.12
0.2
245
227
0.12
7/0.15
0.25
160
146
0.2
7/0.20
0.25
90.4
83.5
0.35
19/0.16
0.25
53.1
49.5
0.5
19/0.18
0.25
36.7
36
0.75
19/0.23
0.28
≤19cores
≥1.2
24.6
22.7
1
19/0.26
0.28
20.4
19
1.5
19/0.32
0.32
12.7
11.7
2
19/0.37
0.32
10
9.45
2.5
19/0.41
0.4
7.43
6.86
4
37/0.37
0.4
≤7cores
≥1.5
4.88
4.51
6
37/0.45
0.5
3.3
3.05
Noted:Other sizes and colours available on request
Product features:
Working temperature: 65 ℃ ∽200 ℃
Rated voltage: 300/500V
Construction:
conductor material: tin copper wire or silver plated copper wire
insulation materials, FEP, PFA, PTFE
shielding materials: silver plated copper wire, tin copper wire or aluminum foil
sheath material: silicone rubber sheath
colors: red, yellow, blue, white, black, green, brown, orange, gray, etc.
Application:
used for various mobile machine, aviation, steel, power plants, glass manufacturing, petrochemical, temperature sensor etc.
|
YGZF, YGZPF telfon insulation, silicone rubber sheath multicore high temperature cable
|
||||||
|
Nominal area
|
Strand/Diameter
|
Nominal insulation thickness
|
No. of cores
|
Nominal sheath thickness
|
Maximum DC Resistance at 20℃（Ω/km）
|
|
|
(mm2)
|
(mm)
|
（mm）
|
(mm）
|
tinned copper wire
|
silver plated copper wire
|
|
|
0.035
|
7/0.08
|
0.15
|
≤37cores
|
≥1.0
|
568
|
525
|
|
0.05
|
7/0.10
|
0.2
|
356
|
330
|
||
|
0.08
|
7/0.12
|
0.2
|
245
|
227
|
||
|
0.12
|
7/0.15
|
0.25
|
160
|
146
|
||
|
0.2
|
7/0.20
|
0.25
|
90.4
|
83.5
|
||
|
0.35
|
19/0.16
|
0.25
|
53.1
|
49.5
|
||
|
0.5
|
19/0.18
|
0.25
|
36.7
|
36
|
||
|
0.75
|
19/0.23
|
0.28
|
≤19cores
|
≥1.2
|
24.6
|
22.7
|
|
1
|
19/0.26
|
0.28
|
20.4
|
19
|
||
|
1.5
|
19/0.32
|
0.32
|
12.7
|
11.7
|
||
|
2
|
19/0.37
|
0.32
|
10
|
9.45
|
||
|
2.5
|
19/0.41
|
0.4
|
7.43
|
6.86
|
||
|
4
|
37/0.37
|
0.4
|
≤7cores
|
≥1.5
|
4.88
|
4.51
|
|
6
|
37/0.45
|
0.5
|
3.3
|
3.05
|
||
|
Noted:Other sizes and colours available on request
|
||||||
