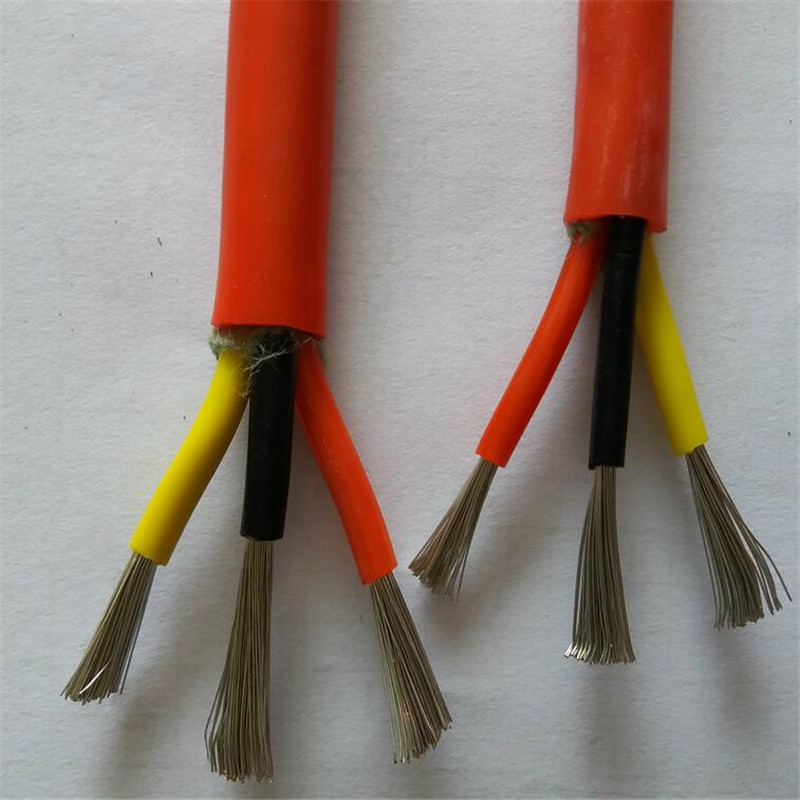

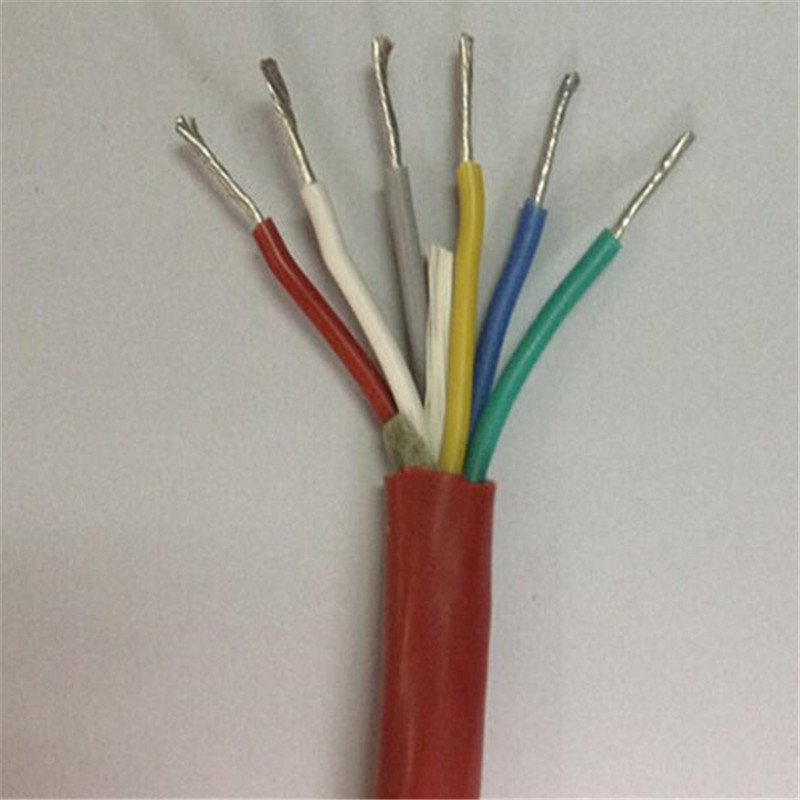

AGRP model Silicone rubber insulated glass fiber braided copper core high temperature cable

Model: AGRP

Product Features:

1, rated voltage: 500V

2, the working temperature: -60 ~ +200 ℃

3, Conductor: Stranded tinned copper wire

4, insulation: silicone rubber

5, weaving: glass fiber + silicone

6, color: red / yellow / blue / white / black / yellow green / brown and so on





Features / Uses:

Has excellent high temperature and low temperature performance, has excellent electrical insulation properties, excellent
chemical stability, high voltage resistance, aging resistance, long service life. And soft and easy to install.

Widely used in lighting, household appliances, electric appliances, instrumentation equipment, electrical wiring and electronic,
lighting, gas appliances and other high-temperature environment.

Cable Size  (mm2)	Conductor  structure  (No./mm)	Cable OD  (mm)	Copper weight  (KG/KM)	Cable Weight  (KG/KM)
2 x 4	50 x 0,31	10,8	80,0	210,0
3 x 4	50 x 0,31	11,5	120,0	261,0
4 x 4	50 x 0,31	13,2	160,0	346,0
5 x 4	50 x 0,31	14,3	200,0	418,0
7 x 4	50 x 0,31	15,6	280,0	530,0
4 x 6	84 x 0,31	15,6	240,0	497,0
5 x 6	84 x 0,31	17,6	300,0	631,0
4 x 10	80 x 0,41	19,1	400,0	778,0
4 x 16	128 x 0,41	23,4	640,0	1.197,0
4 x 25	200 x 0,41	28,6	1,000,0	1.827,0
