Product Name:

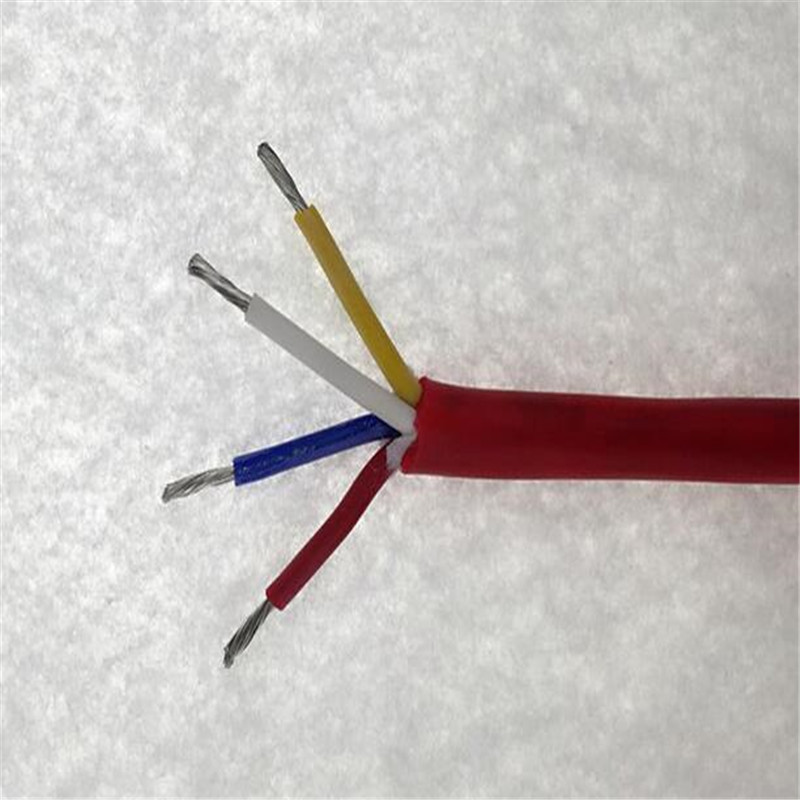

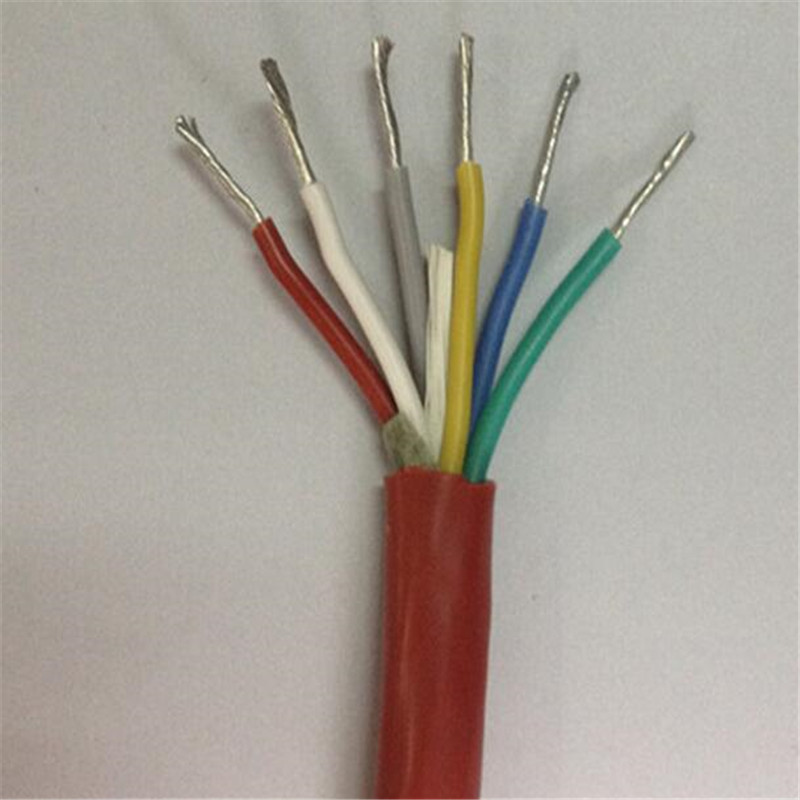

tinned copper wire conductor silicone rubber high temperature cable
Number :
 |
tinned copper wire conductor silicone rubber high temperature cable
Product features:
1, Rated voltage: 500V
2, Working temperature: -60 ~ 200 ℃
Construction:
conductor: stranded tinned copper wire
insulation: silicon rubber
braiding: glass fiber
color: red/yellow/blue/white/black/green/brown
Characteristic:
it has excellent high temperature low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life,and soft, easy to install.
Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns,
burner and high temperature environment.
Product features:
high voltage resistance, ageing resistance, long service life,and soft, easy to install.
Application:
burner and high temperature environment.
tinned copper wire conductor silicone rubber high temperature cable
|
Cable Size (mm2) |
Conductor (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 0,75 | 24 x 0,21 | 7,0 | 45 | 72 |
| 3 x 0,75 | 24 x 0,21 | 7,4 | 53 | 88 |
| 4 x 0,75 | 24 x 0,21 | 8,4 | 64 | 114 |
| 5 x 0,75 | 24 x 0,21 | 9,1 | 77 | 135 |
| 7 x 0,75 | 24 x 0,21 | 9,8 | 95 | 166 |
| 2 x 1 | 32 x 0,21 | 7,2 | 50 | 79 |
| 3 x 1 | 32 x 0,21 | 8,0 | 63 | 105 |
| 4 x 1 | 32 x 0,21 | 8,7 | 79 | 129 |
| 5 x 1 | 32 x 0,21 | 9,4 | 90 | 150 |
| 7 x 1 | 32 x 0,21 | 10,1 | 113 | 189 |
