Product Name:

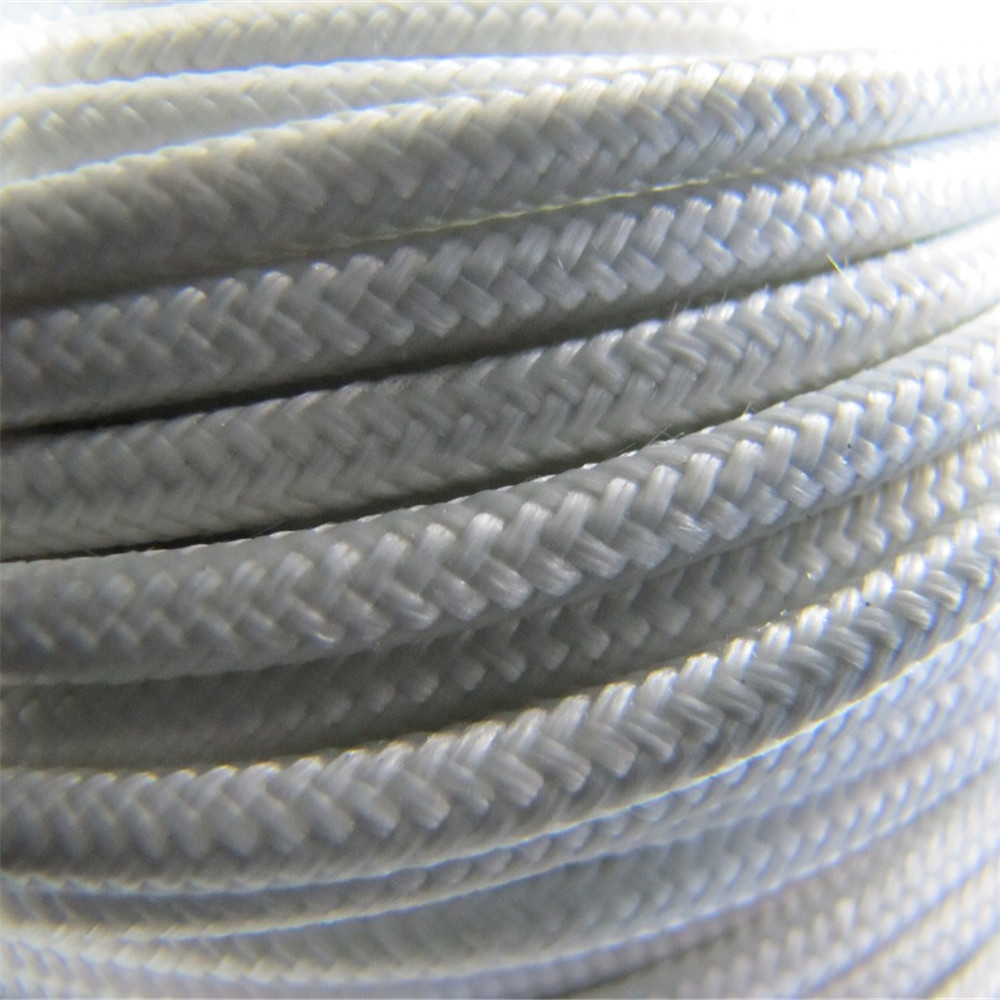

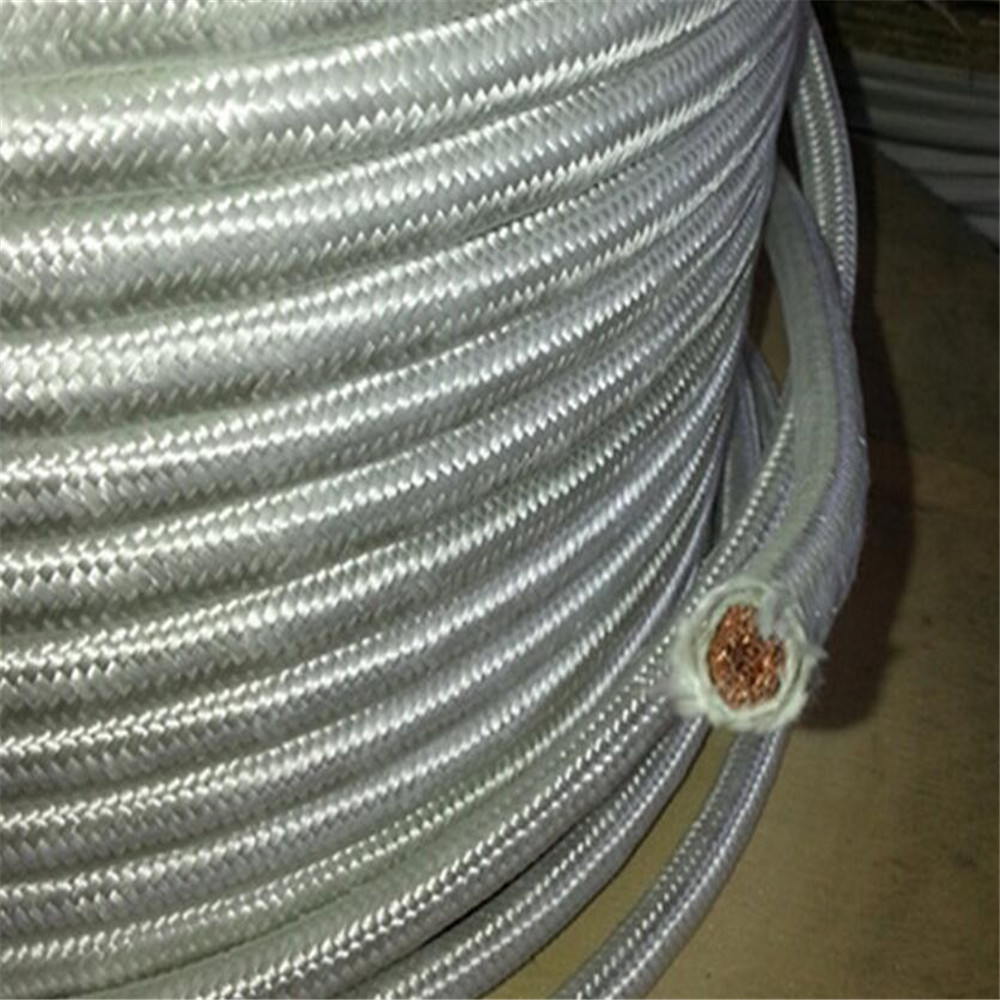

GN500 series wire and cable fire-resistant wire
Number :
 |
GN500 series wire and cable fire-resistant wire
Executive Standard: Q / IRMV5-2009
Product Features:
1, Rated voltage: 300 / 500V
2, Working temperature: -60 ~ + 500 ℃
3, Conductor: stranded pure nickel wire
4, insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.
Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.
GN500 series wire and cable fire-resistant wire
Section
Conductor No./Dia
Overall Diametre(mm)
(mm2)
(mm)
Single
2-core
3-core
4-core
0.5
7×0.30
3.5
4.7*7.6
8.0
9.3
0.75
11×0.30
3.7
4.8*7.9
8.4
9.3
1
14×0.30
3.8
5.0*8.2
8.7
9.5
1.5
21×0.30
4.0
5.2*8.5
9.1
10.2
2
28×0.30
4.2
5.4*9.0
9.5
10.8
2.5
35×0.30
4.4
5.6*9.4
10.0
11.2
3.5
49/0.30
5.0
5.8*9.5
10.5
11.6
4
56×0.30
5.3
6.3*10.8
11.5
13.0
6
84×0.30
6.0
6.8*11.8
13.1
14.8
Product Features:
1, Rated voltage: 300 / 500V
2, Working temperature: -60 ~ + 500 ℃
3, Conductor: stranded pure nickel wire
4, insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.
Section
Conductor No./Dia
Overall Diametre(mm)
(mm2)
(mm)
Single
2-core
3-core
4-core
0.5
7×0.30
3.5
4.7*7.6
8.0
9.3
0.75
11×0.30
3.7
4.8*7.9
8.4
9.3
1
14×0.30
3.8
5.0*8.2
8.7
9.5
1.5
21×0.30
4.0
5.2*8.5
9.1
10.2
2
28×0.30
4.2
5.4*9.0
9.5
10.8
2.5
35×0.30
4.4
5.6*9.4
10.0
11.2
3.5
49/0.30
5.0
5.8*9.5
10.5
11.6
4
56×0.30
5.3
6.3*10.8
11.5
13.0
6
84×0.30
6.0
6.8*11.8
13.1
14.8
