Product Name:

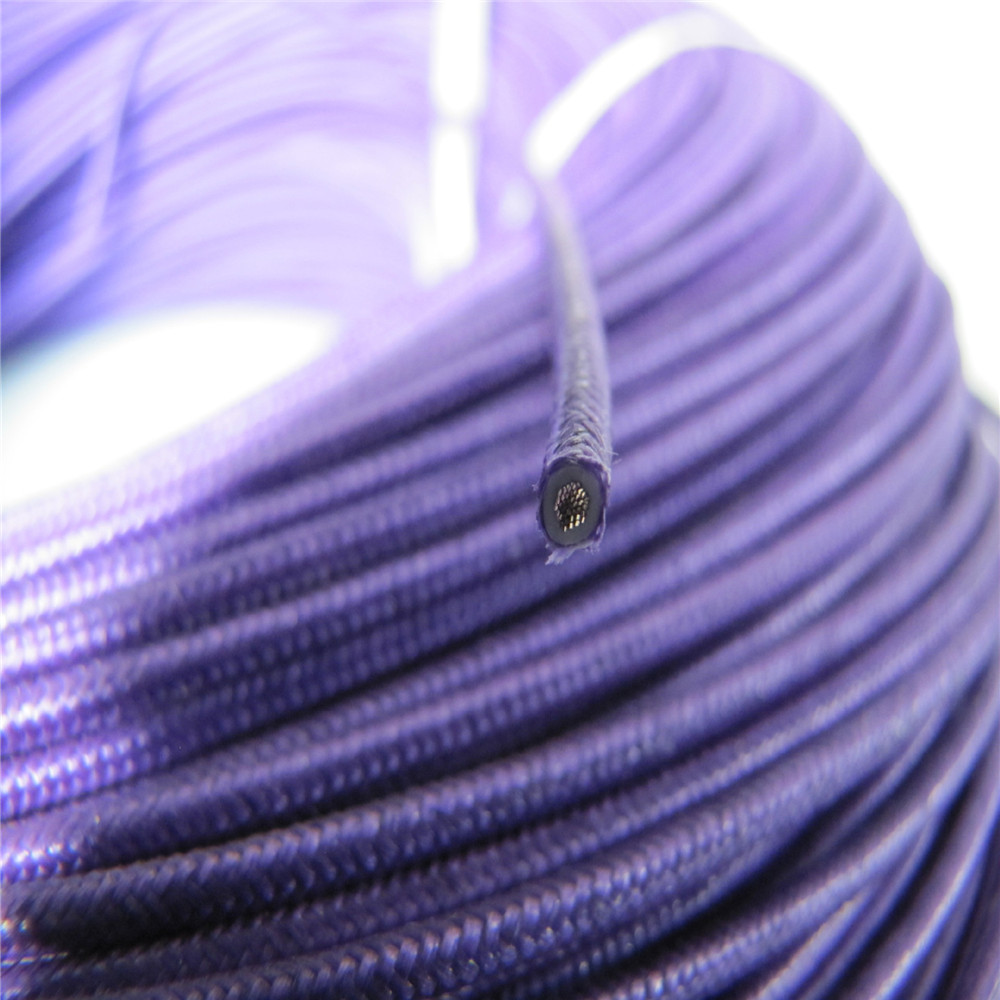

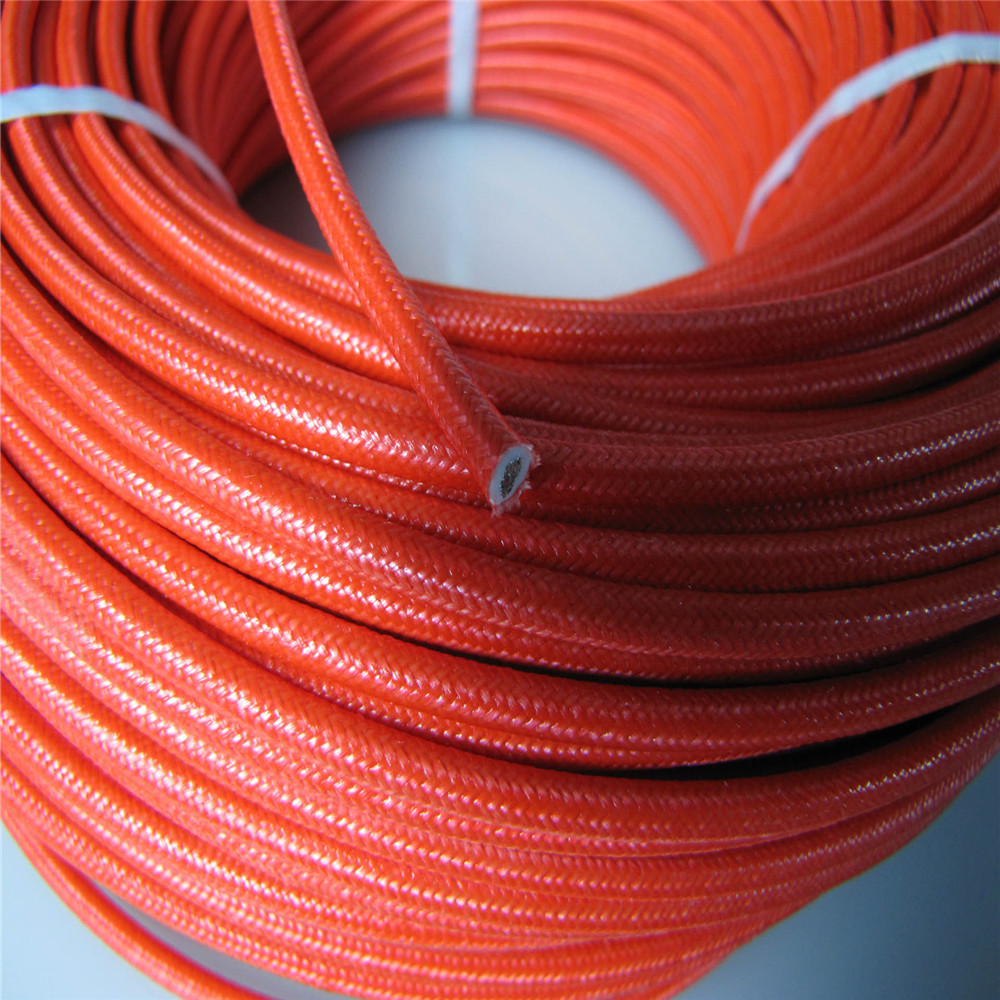

GBB - M series high temperature resistant wire
Number :
 |
Product features:
1, Rated voltage: 500V
2, Working temperature: 500-60 ~ 200 ℃
Construction:
conductor: stranded tinned copper wire
insulation: silicon rubber
braiding: glass fiber
color: red/yellow/blue/white/black/green/brown
Characteristic:
it has excellent high temperature low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltageresistance, ageing resistance, long service life,and soft, easy to install.
Application:
Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns, burner
and high temperature environment.
GBB glass fibre braiding silicone rubber high temperature wire
spec of structure and technical parameters
Nominal area
Conductor construction
Nominal insulation thickness
Nominal braiding thickness
Nominal OD
Maximum DC Resistance at 20℃
（mm2）
Strand/Diameter(mm)
（mm）
（mm）
（mm）
（Ω/km）
0.2
12×0.15
0.5
0.15
1.8
95
0.3
16×0.15
0.5
0.15
2
71.2
0.4
23×0.15
0.5
0.15
2.2
49.6
0.5
28×0.15
0.5
0.15
2.2
40.1
0.75
42×0.15
0.5
0.15
2.5
26.7
1
32×0.20
0.5
0.15
2.7
20
1.2
40×0.20
0.5
0.15
2.8
15.9
1.5
48×0.20
0.55
0.15
3
13.7
2
40×0.25
0.6
0.15
3.4
9.9
2.5
49×0.25
0.65
0.15
3.7
8.21
4
56×0.30
0.65
0.2
4.4
5.09
6
84×0.30
0.7
0.2
5.4
3.39
10
84×0.40
0.8
0.2
6.8
1.95
16
126×0.40
1.2
0.25
8.9
1.24
25
196×0.40
1.2
0.25
10.5
0.795
35
494×0.30
1.8
0.25
13
0.565
50
396×0.40
1.8
0.3
14.8
0.393
70
551×0.40
1.8
0.3
17
0.277
Noted:Other sizes and colours available on request
