pure nickel high temperature mineral insulated cable and wires 800 degrees

Product Features:
1, Rated voltage: 300-350V
2, Working temperature: -60 ~ + 450 ℃
3, Conductor: stranded nickel-plated copper wire
4, Insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.



Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.







 pure nickel high temperature mineral insulated cable  and wires  800 degrees

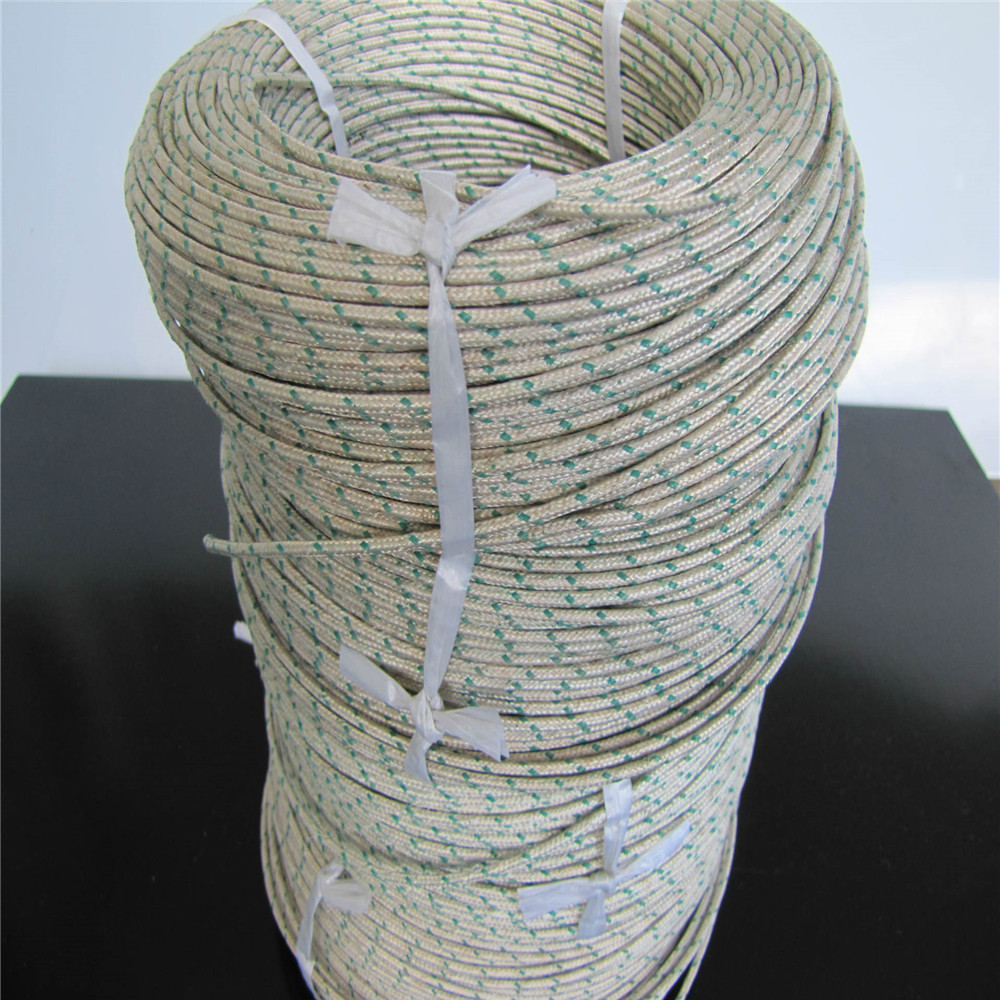

Mica Fiberglass High Temperature Heat Resistance Wire Cable
AWG  Size	Conductor  Structure	Insulation  Thickness      mm	Braid  Thickness  mm	Diameter  mm	Ref.
					weight
					kg/km
24	7/0.20	≥0.63	≥0.18	2.3±0.20	9.1
22	7/0.254	≥0.63	≥0.18	2.4±0.20	12.2
20	10/0.254	≥0.63	≥0.18	2.6±0.20	14.9
18	16/0.254	≥0.63	≥0.18	2.8±0.20	18.1
16	26/0.254	≥0.63	≥0.18	3.2±0.20	24.2
14	41/0.254	≥0.63	≥0.18	3.6±0.20	34.5
12	65/0.254	≥0.63	≥0.18	4.2±0.20	46.3
10	103/0.254	≥0.76	≥0.38	5.2±0.20	77.6
8	163/0.254	≥0.76	≥0.38	6.6±0.20	116.2
