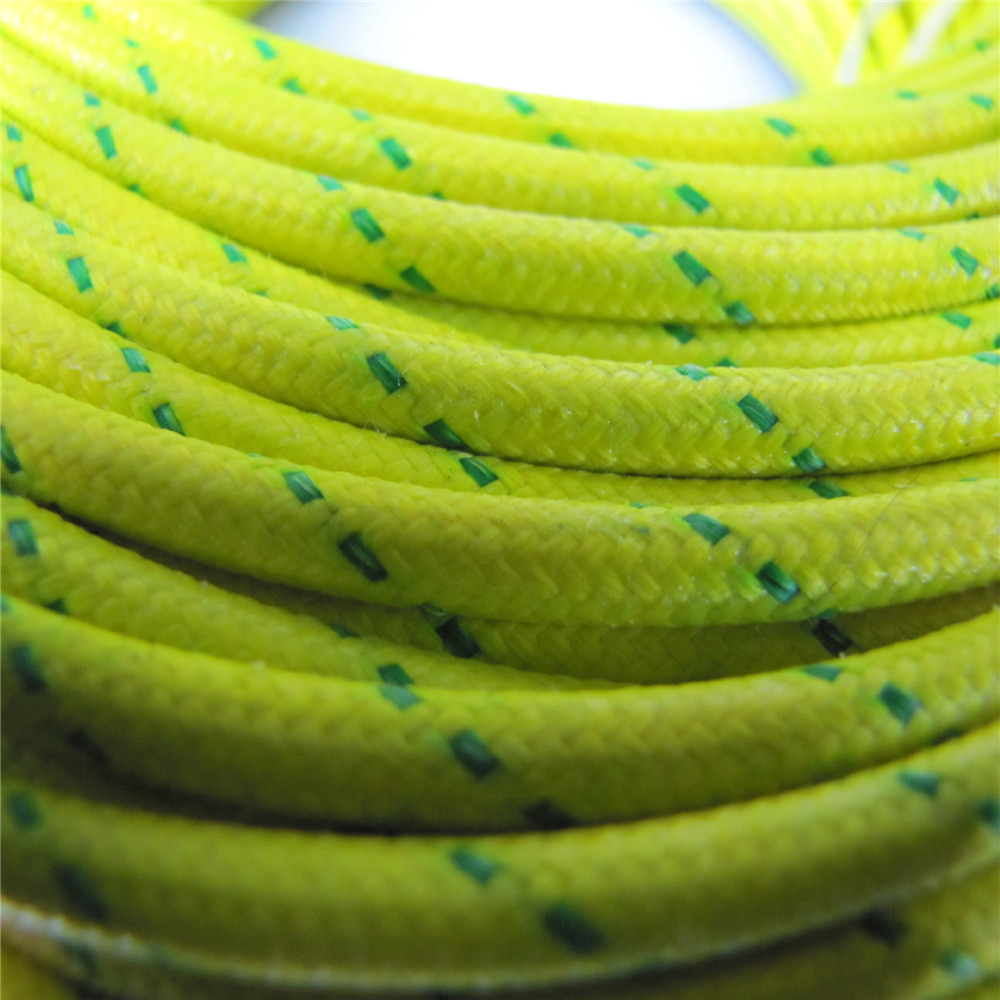

yellow green Glass fiber Silicone Heat electrical Wires and cables
 |
Product Name:
yellow green Glass fiber Silicone Heat electrical Wires and cables
Number :
 |
Product Description:
yellow green Glass fiber Silicone Heat electrical Wires and cables
Standards: BS479
Standards: BS479
Applications
These cables are used at high ambient temperatures and for ambient air temperature between -60degree and +180degree in dry locations.
They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.
Cable structure
Conductor: Plain or tinned annealed flexible copper wire;
Insulation: silicone rubber
Sheath/Jacket: fiber glass
Rated Voltage: 300/500v
Operating temperature: Maximum 185°C, Minimum bending -40°C
yellow green Glass fiber Silicone Heat electrical Wires and cables
| Silicone Single Core with Glass fibre braiding cable | |||||
| AWG | No. of Cores |
Conductor Cross Section (mm2) |
Cable OD (mm) |
Copper weight (KG/KM) |
|
| 24 | 1 | 0.25 | 2.4 | 2.4 | |
| 20 | 1 | 0.5 | 2.6 | 4.8 | |
| 18 | 1 | 0.75 | 2.9 | 7.2 | |
| 17 | 1 | 1 | 3 | 9.6 | |
| 16 | 1 | 1.5 | 3.3 | 14.4 | |
| 14 | 1 | 2.5 | 3.9 | 24 | |
| 12 | 1 | 4 | 4.7 | 38 | |
| 10 | 1 | 6 | 5.7 | 58 | |
| 8 | 1 | 10 | 7.5 | 96 | |
| 6 | 1 | 16 | 8.9 | 154 | |
| 4 | 1 | 25 | 10.8 | 240 | |
| 2 | 1 | 35 | 12.1 | 336 | |
| 1 | 1 | 50 | 14.4 | 480 | |
