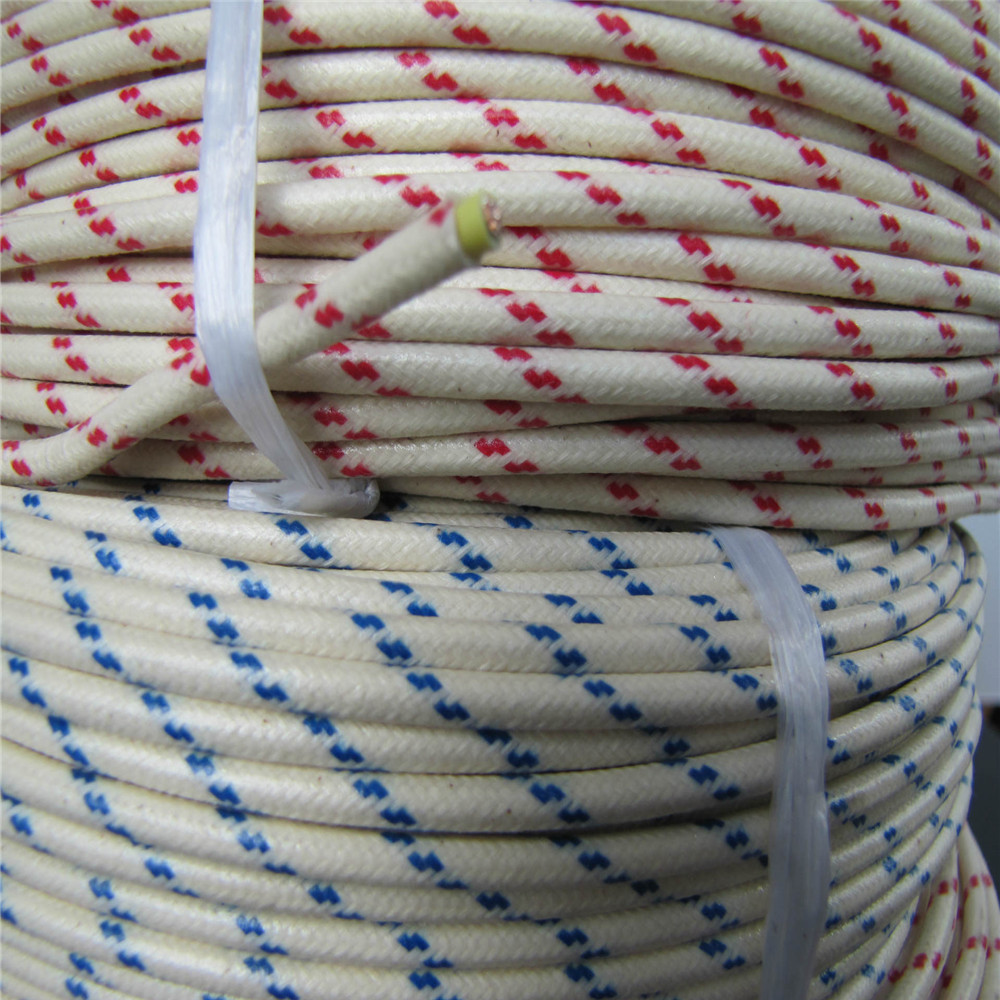

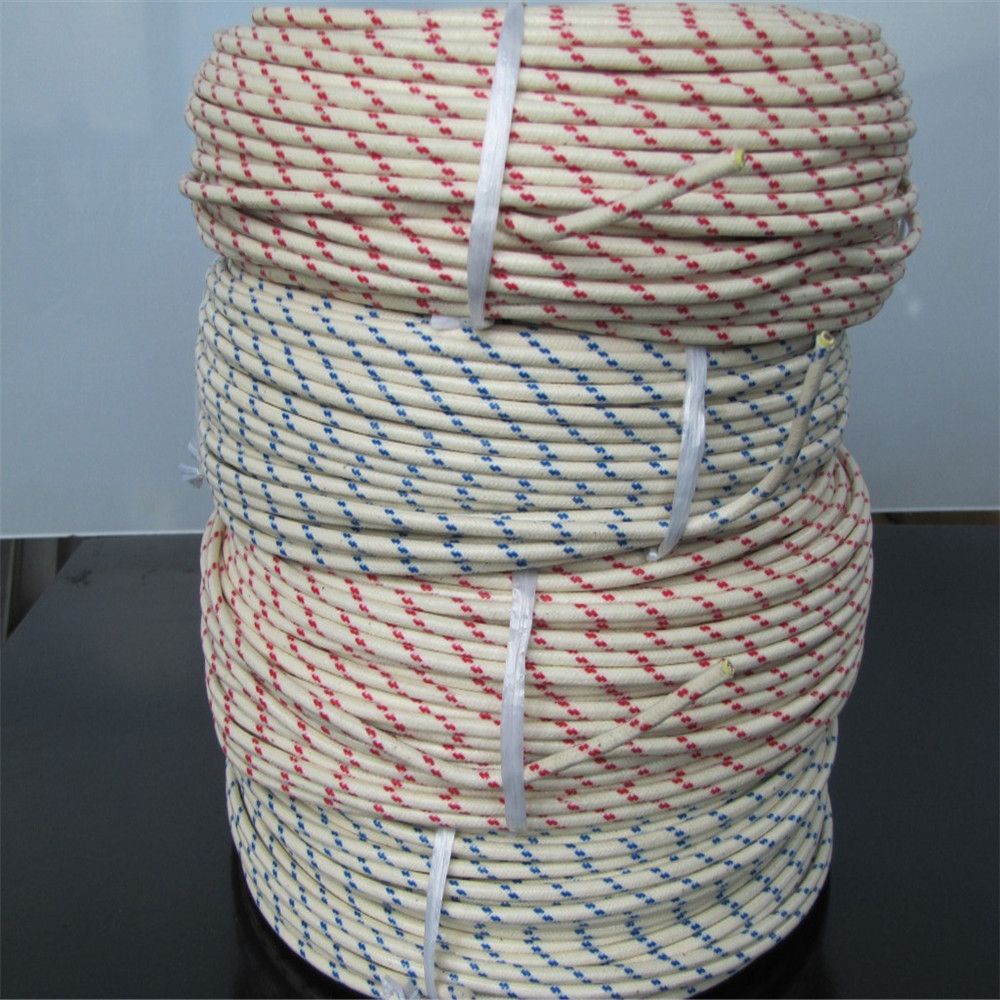

Pure Ni Conductor Fire resistance,High Temperature Cable

Product Name:

Pure Ni Conductor Fire resistance,High Temperature Cable

Number :

Product Description:

Pure Ni Conductor Fire resistance,High Temperature Cable

Application:
high-temperature environment such as metallurgy, petroleum, chemical, natural gas and so on, various electrical
equipment with fire performance are needed

Cable structure

Conductor: bare copper wire, nickel plated copper wire

Insulation:mica+glass fiber

Color: red, blue, white, yellow, green, brown, black

Rated temperature: 500 ℃, long-term working temperature of 300 ℃ -500 ℃ -800 ℃

Rated voltage: 450-750

Fire resistance: 1000 ℃ below 90 minutes fuse constantly

Pure Ni Conductor Fire resistance,High Temperature Cable

High temperature Wire
Nominal area	Conducotr construction	Nominal insulation thickness	Nominal OD	Max DC Resistance at 20℃	Packing length
(mm2)	Strand/Dia (mm)	(mm)	(mm)	(Ω/km)	(m)
0.5	7×0.30	0.5	2.3±0.3	40.8	200
0.75	11×0.30	0.5	2.5±0.3	24.3	200
1	14×0.30	0.5	2.6±0.3	20	200
1.5	21×0.30	0.5	2.9±0.3	12.6	100
2	28×0.30	0.6	3.3±0.5	9.84	100
2.5	35×0.30	0.6	3.6±0.5	7.37	100
4	56×0.30	0.8	4.7±0.5	4.83	100
6	84×0.30	0.8	5.5±0.5	3.26	100
10	84×0.40	0.8	6.6±0.5	1.8	100
16	228×0.30	0.8	7.8±0.5	1.31	100
Noted:Other sizes and colours available on request
