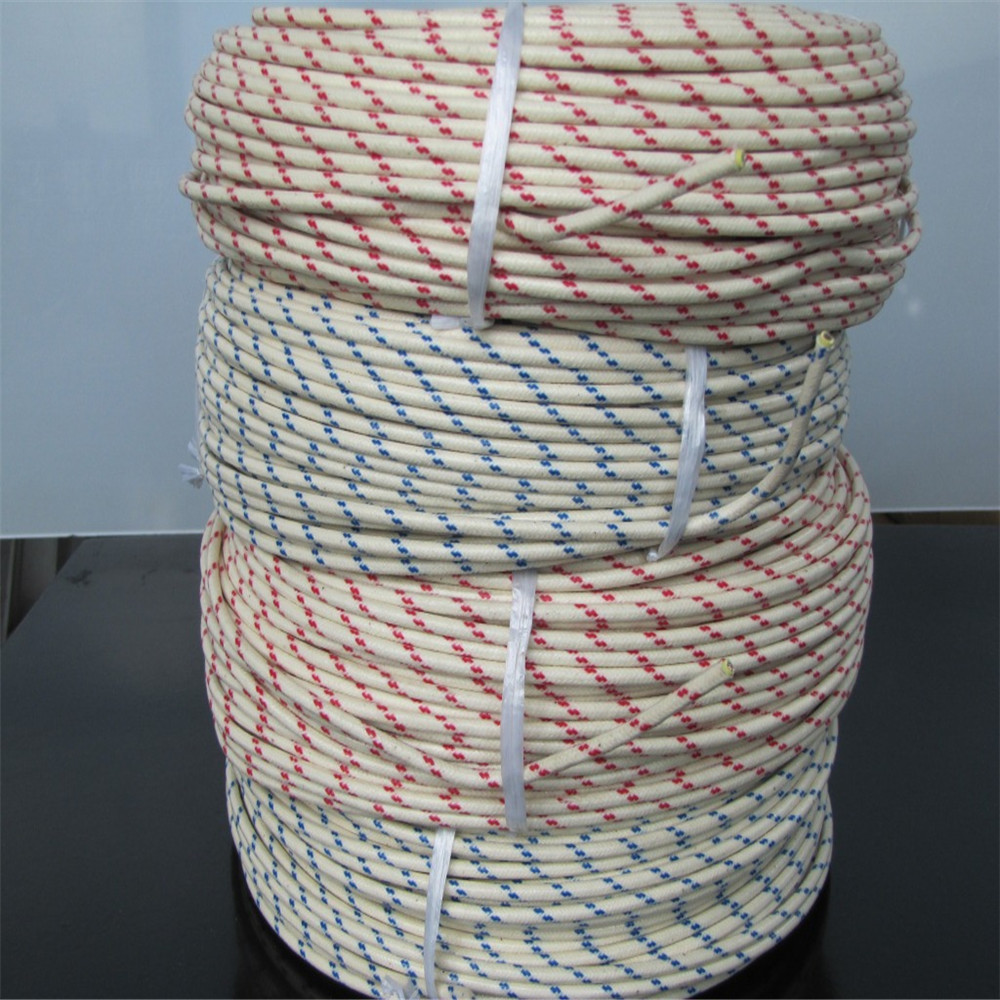

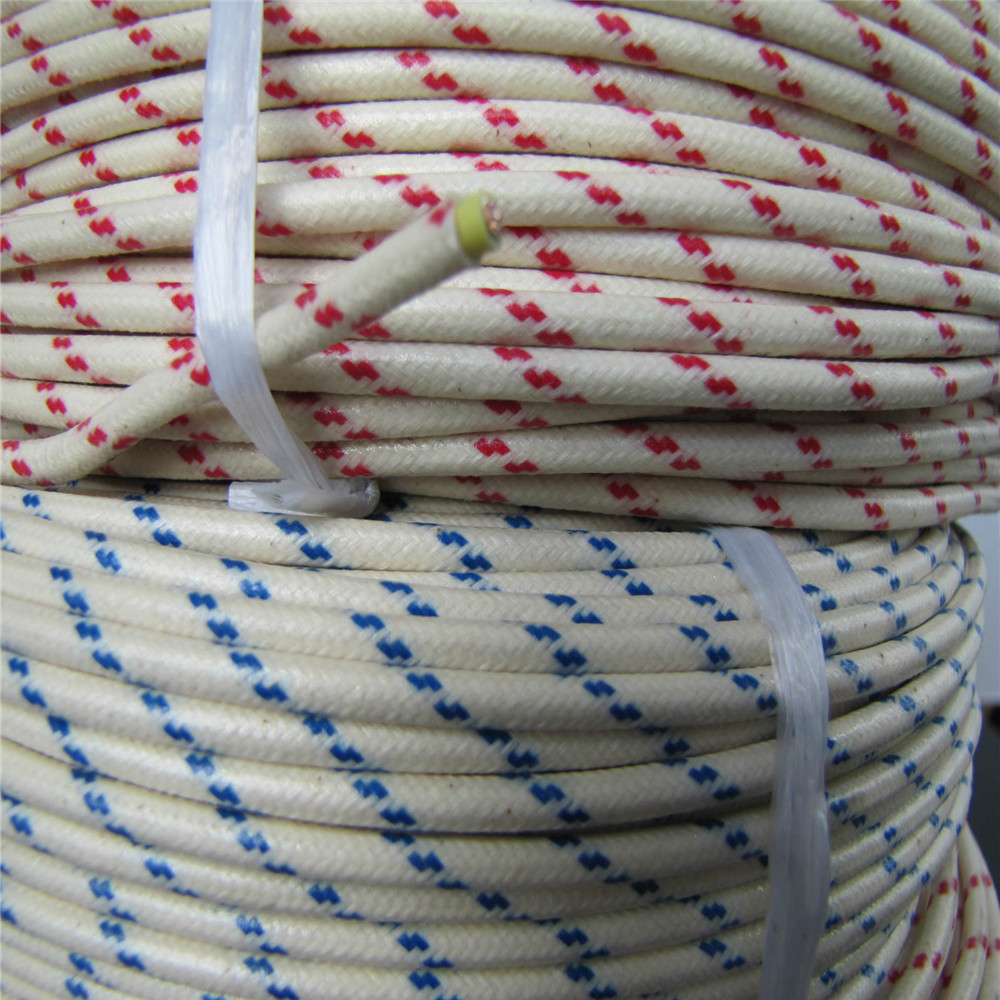

600V copper nickel plated High Temperature Wire

Executive Standard: Q / IRMV5-2009
Product Features:
1, Rated voltage: 300 / 500V
2, Working temperature: -60 ~ + 500 ℃
3, Conductor: stranded pure nickel wire
4, insulation: fiberglass weave + fluorine gold mica
5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.

Applications:
Fixed laying, plus flame burning, no harmful toxic gases.
This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special
circumstances, where fire performance is required.





high temperature wire 350  degrees -1500 degrees
Section	Conductor No./Dia	Overall Diametre(mm)
(mm2)	(mm)	Single	2-core	3-core	4-core
0.5	7×0.30	3.5	4.7*7.6	8	9.3
0.75	11×0.30	3.7	4.8*7.9	8.4	9.3
1	14×0.30	3.8	5.0*8.2	8.7	9.5
1.5	21×0.30	4	5.2*8.5	9.1	10.2
2	28×0.30	4.2	5.4*9.0	9.5	10.8
2.5	35×0.30	4.4	5.6*9.4	10	11.2
3.5	49/0.30	5	5.8*9.5	10.5	11.6
4	56×0.30	5.3	6.3*10.8	11.5	13
6	84×0.30	6	6.8*11.8	13.1	14.8
