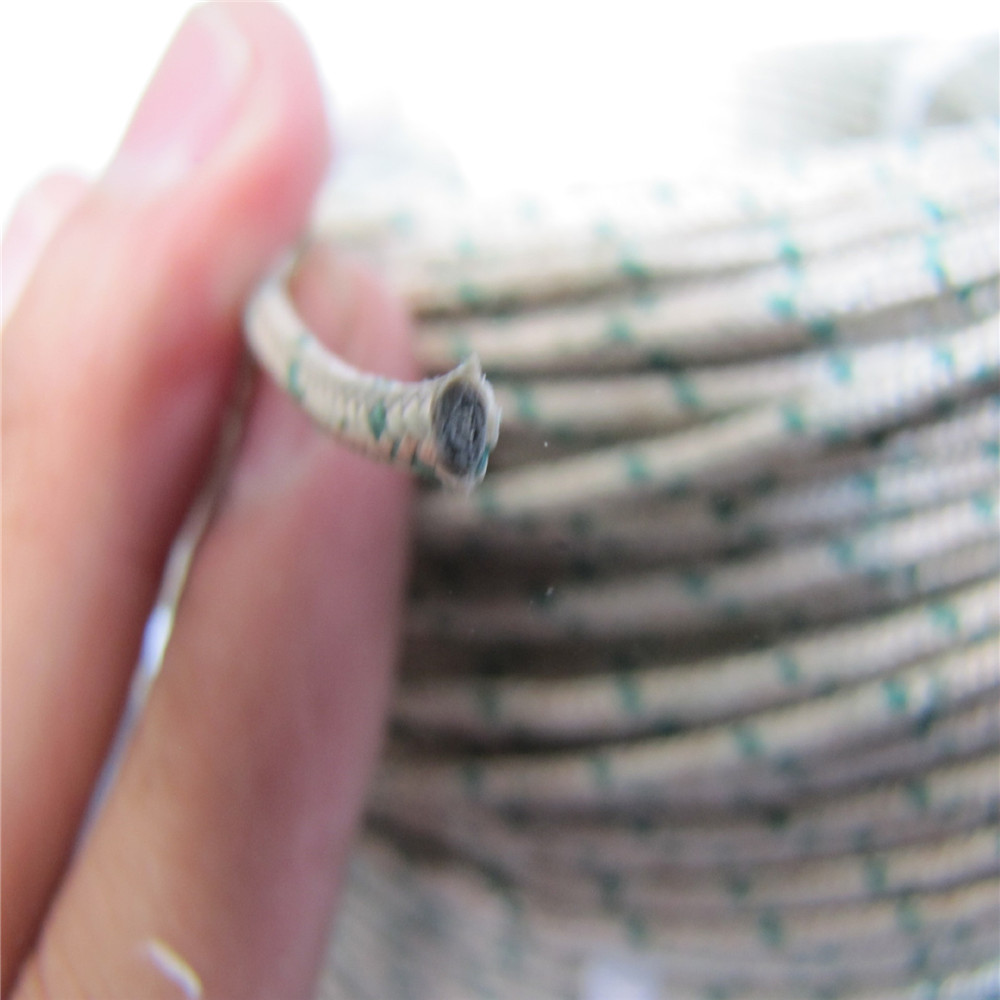

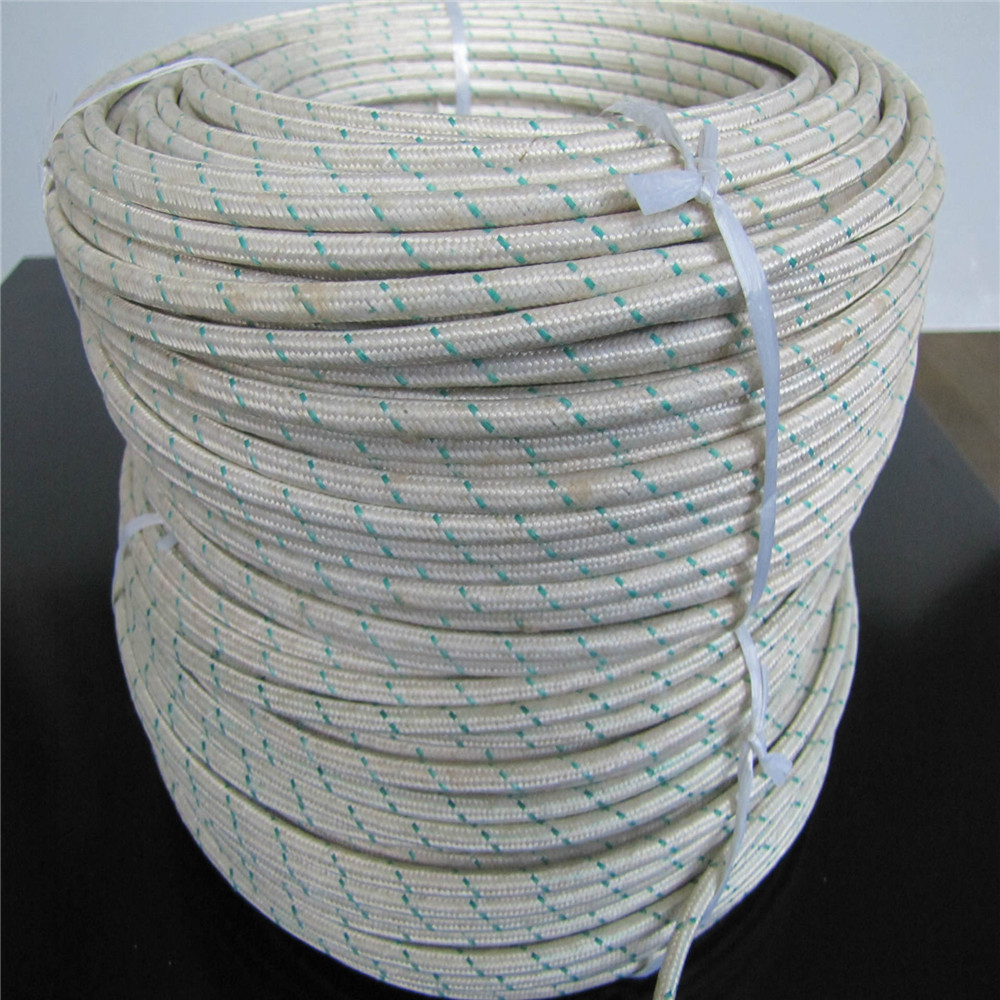

pure nickel wire or silver wire conductor high temperature wire

Product Features:

1, Rated voltage: 300-350V

2, Working temperature: -60 ~ + 450 ℃

3, Conductor: stranded nickel-plated copper wire

4, Insulation: fiberglass weave + fluorine gold mica

5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.



Applications:

Fixed laying, plus flame burning, no harmful toxic gases.

This product is a variety of electrical devices metallurgical, thermal, oil, chemicals, natural gas, kerosene and other special circumstances,
where fire performance is required.





pure nickel wire or silver wire conductor high temperature wire

Silicone Rubber Insulated Wire
AWG	Conductor No./Dia	Overall  Diameter (mm)	Insulation Thickness (mm)	Overall  Diameter (mm)	Packing Length(metre)
30	7/0.103	0.31	0.76	1.83	610
28	7/0.127	0.38	0.76	1.9	610
26	7/0.160	0.49	0.76	2.01	305
24	7/0.203	0.61	0.76	2.13	305
22	7/0.254	0.76	0.76	2.28	305
20	7/0.310	0.94	0.76	2.47	305
18	7/0.39	1.17	0.76	2.71	305
16	7/0.5	1.5	0.76	3.02	305
