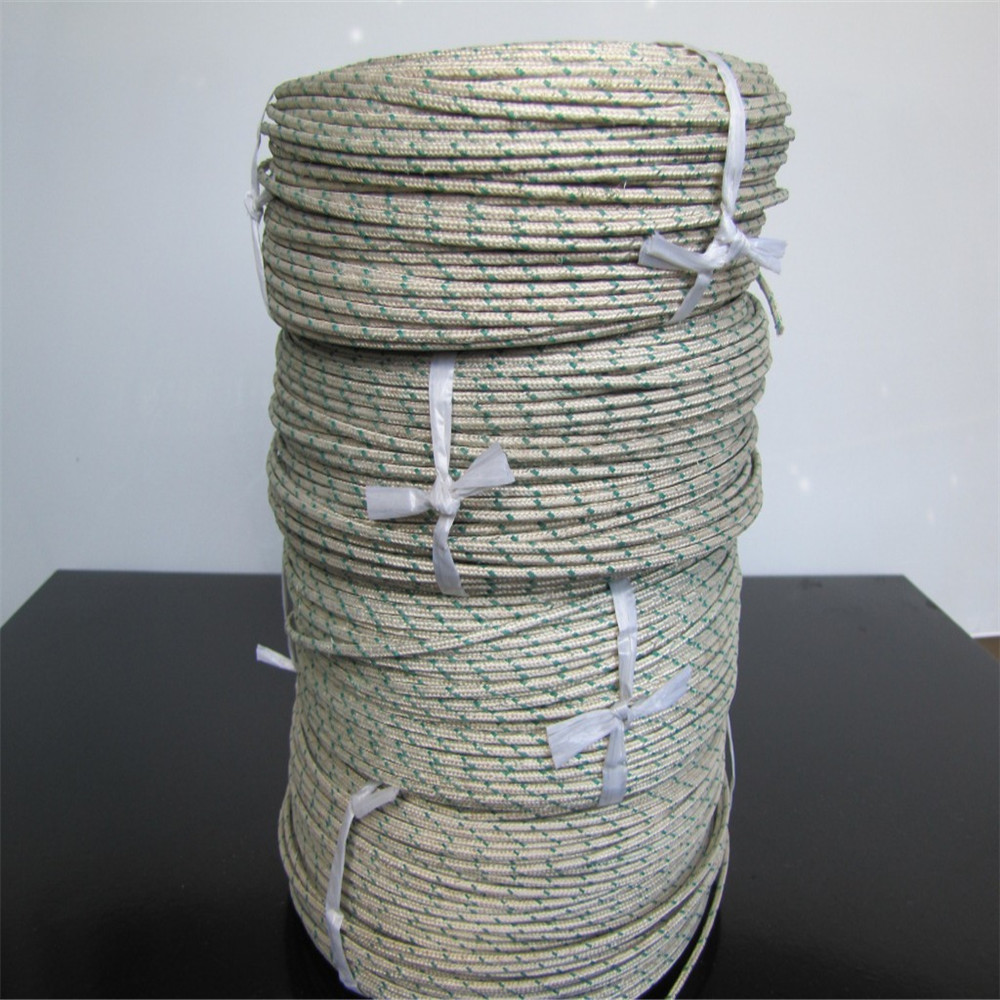

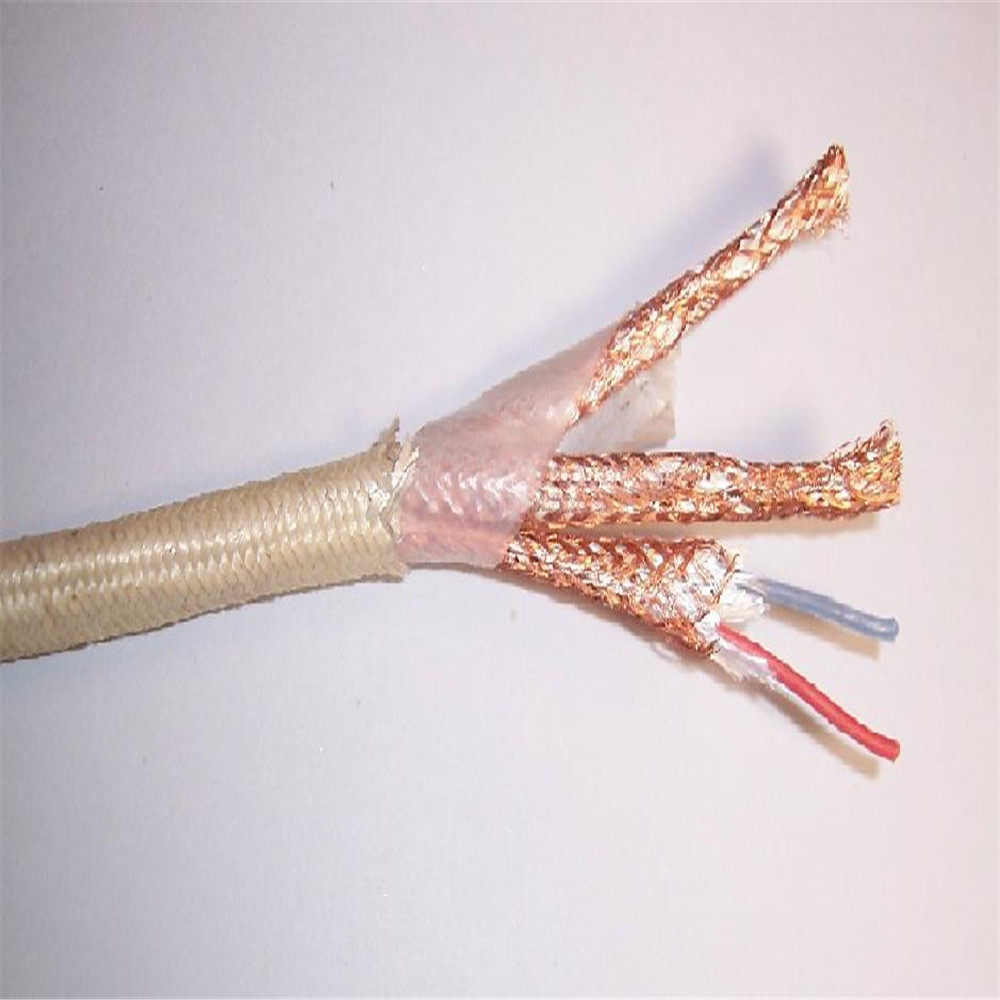

450C special High temperature Shielded Wire or cable
 |
Product Name:
450C special High temperature Shielded Wire or cable
Number :
 |
Product Description:
450C special High temperature Shielded Wire or cable
1) Rated Voltage: 300V/500V
2) Rated Temperature: -60°C~+300°C
3) Conductor: Nickel Copper, Nickel
4) Insulator: Fiber Glass, High Temperature Coating
5)Shield:Steel Stainless wire
|
450C special High temperature Shielded Wire or cable
|
||||||
|
Cable type
|
Conductor construction
|
Insulation Thickness (mm)
|
Shielding Density%
|
OD(mm)
|
Max DC Resis at 20℃（Ω/km）
|
Control of hazardous
|
|
3*0.75
|
24/0.20
|
0.6±0.1
|
>85
|
6.0±0.3
|
26.7
|
Meet ROHS instructions
|
|
3*1.0
|
32/0.20
|
0.6±0.1
|
6.3±0.3
|
20
|
||
|
3*1.5
|
30/0.25
|
0.65±0.1
|
7.2±0.3
|
13.7
|
||
|
3*2.5
|
50/0.25
|
0.7±0.1
|
8.4±0.3
|
8.21
|
||
