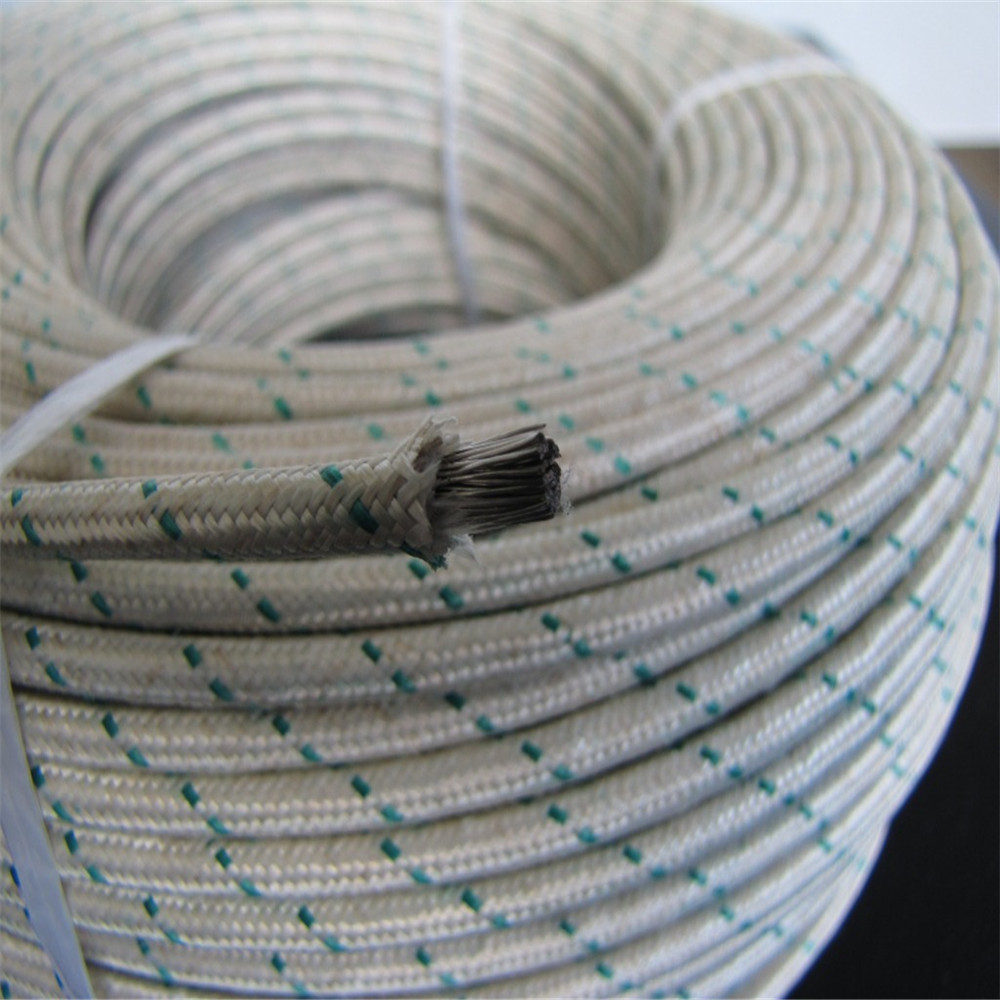

Mica Fiberglass High Temperature Heat Resistance Wire Cable
 |
Product Name:
Mica Fiberglass High Temperature Heat Resistance Wire Cable
Number :
 |
Product Description:
Mica Fiberglass High Temperature Heat Resistance Wire Cable
Feature:
Rated temperature:-60℃~+250℃
Rated voltage:600V
Conductor: copper, tinned copper, nickel copper, nickel
Insulation: mica tape with fiberglass composite
Jacket: fiberglass braid with high temperature finish
Characteristics
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Suitable for applications to -60°C
Resists braid pushback.
Application
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
|
Mica Fiberglass High Temperature Heat Resistance Wire Cable
|
||||||
|
AWG Size
|
Conductor Structure
|
Insulation Thickness mm
|
Braid Thickness mm
|
Diameter mm
|
Ref.
|
Ref.
|
|
weight
|
weight
|
|||||
|
kg/1000ft
|
kg/km
|
|||||
|
24
|
7/0.20
|
≥0.63
|
≥0.18
|
2.3±0.20
|
2.7
|
9.1
|
|
22
|
7/0.254
|
≥0.63
|
≥0.18
|
2.4±0.20
|
3.6
|
12.2
|
|
20
|
10/0.254
|
≥0.63
|
≥0.18
|
2.6±0.20
|
4.5
|
14.9
|
|
18
|
16/0.254
|
≥0.63
|
≥0.18
|
2.8±0.20
|
5.5
|
18.1
|
|
16
|
26/0.254
|
≥0.63
|
≥0.18
|
3.2±0.20
|
7.3
|
24.2
|
|
14
|
41/0.254
|
≥0.63
|
≥0.18
|
3.6±0.20
|
10.4
|
34.5
|
|
12
|
65/0.254
|
≥0.63
|
≥0.18
|
4.2±0.20
|
14.1
|
46.3
|
|
10
|
103/0.254
|
≥0.76
|
≥0.38
|
5.2±0.20
|
23.6
|
77.6
|
|
8
|
163/0.254
|
≥0.76
|
≥0.38
|
6.6±0.20
|
35.4
|
116.2
|
