KX, JX, VX & TX Instrumentation & Thermocouple Cable

Product Name:

KX, JX, VX & TX Instrumentation & Thermocouple Cable

Number :

Product Description:

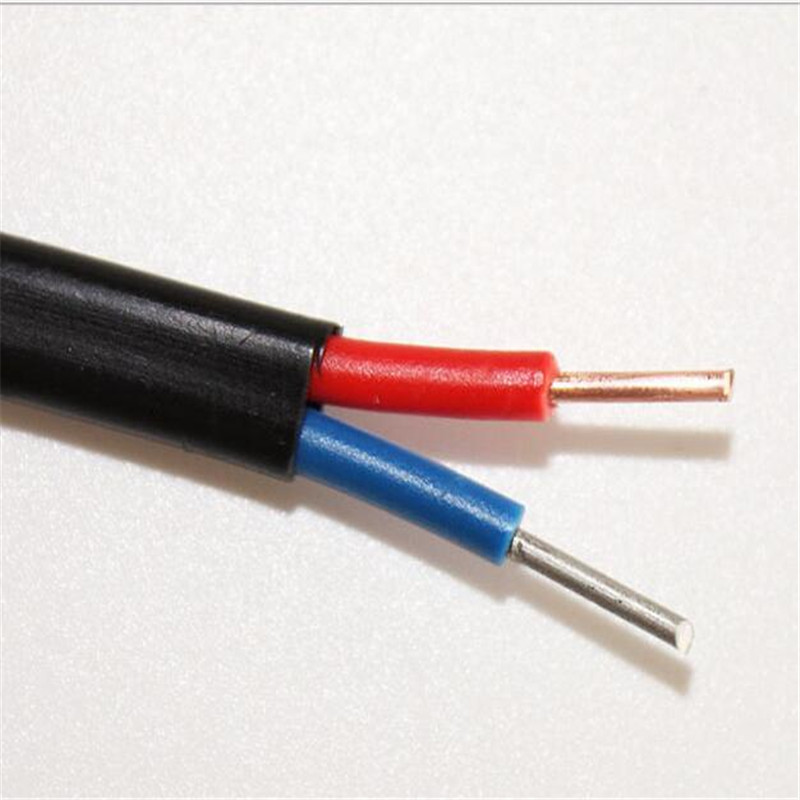

KX, JX, VX & TX Instrumentation & Thermocouple Cable

Thermocouple Cable are one pair or multi pair of insulated wire or cable with the same Pyro EMF value with matched thermocouple.

They are used connect thermocouple and measuring devices to compensate the error resulation from temperrature change on the connection part.

They are divided into two types including extension type and compensational type.

Executive Standard:

As GB/T4989-94&JB/T4795-94

Working Conditions:

*Max working temperature

Heat-resistant cable: 2kinds including 200º C & 260º C

Common cable: 2 kinds including 70º C & 105º C

*Min. Enironment Temperature:

Wire & Cable with fluoroplatics insulation & sheath:

Fixed Insulation: -60º C.

Otherwise: -20º C

Thermocouple Extension Wire Compensating Cable
Type of Compensating Conductor	Equipped Thermocouple	Thermocouple Index	Compensating Conductor Allong-wire		Insulation Layer Coloration
			Positive	Negative	Positive	Negative
SC	PtRh10-Platinum thermocouple10	S	SPC Cu	SNC	Red	Green
				Cu Ni
RC	PtRh13-Platinum thermocouple13	R	RPC Cu	RNC Cu Ni	Red	Green
KCA/KCB/KX	Ni Cr- Nisi-loy Thermocouple	K	KPCA Fe/	KNCA Cu Ni/	Red	Blue/
			KPCB Cu/	KNCB Cu Ni/		Blue/
			KPX Ni Cr	KNX Ni Si		Black
NC/NX	Ni Cr- Nisi-loy Thermocouple	N	NPC Fe	NNC Cu Ni	Red	Grey
			NPX	NNX Ni Si		Grey
			Ni Cr Si
EX	Ni Cr- Copper-nickel Thermocouple	E	EPX Ni Cr	ENX Cu Ni	Red	Brown
JX	Fe- Copper-nickel Thermocouple	J	JPX Fe	JNX Cu Ni	Red	Purple
TX	Cu- Copper-nickel	T	TPX Cu	TNX Cu Ni	Red	White
	Thermocouple
