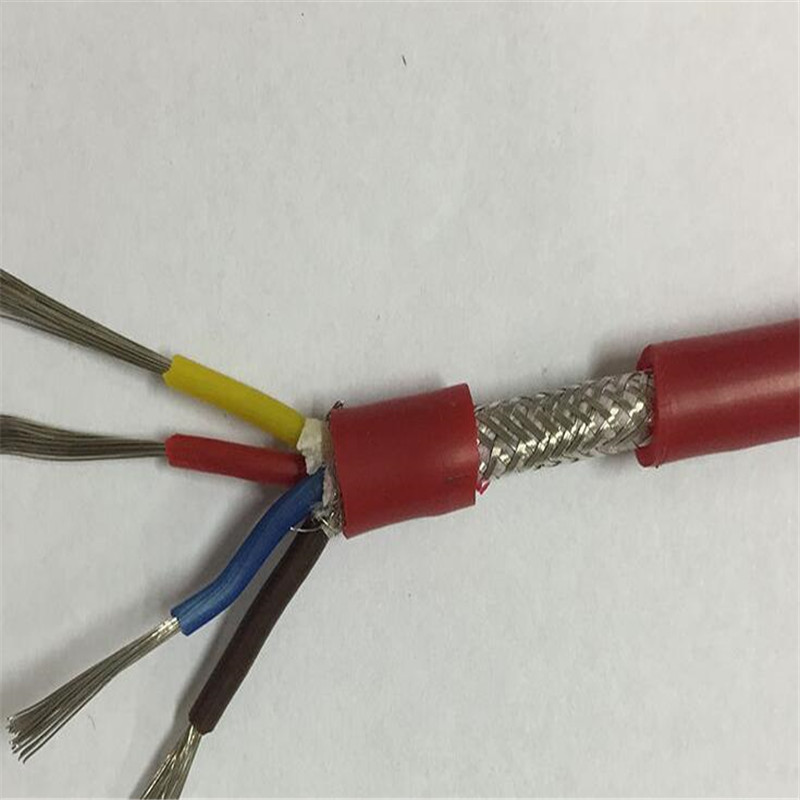

Silicon Insulation Copper Braiding Silicone Sheathed Cable

Product Name:

Silicon Insulation Copper Braiding Silicone Sheathed Cable

Number :

Product Description:

Silicon Insulation Copper Braiding Silicone Sheathed Cable

Cable structure

Conductor: Flexible copper conductors according to IEC 228 class 5. Available in bare, tin or nickel plated copper.

Insulation: Silicone rubber.

Sheath: Silicone rubber.

Braid: Fibreglass braid

Working Voltage : 300/ 500 V. Test Voltage : 2000 V.

Characteristics of cable

Continuous working temperature :

-60°C to +200°C. Peaks at +220°C

Minimum bending radius approx 15 x Cable Ø

Resistance to sunlight.

Halogen-free.

Does not spread flame.

Application

Used to power electrical devices located in areas with high continuous temperatures.

Suitable for wiring in metal industry

Lighting equipment

Electrical approved devicesrequiring a non - flammable cable.

Hot-rolling mills, coking plants, foundries.

Resistant to: Resistant to vegetable and animal fat, many types of oil and diluted acids.

No decomposition occurs when exposed to alcohol, alkaline solutions. Resistant to oxygen and ozone.

Copper Braiding Silicone Sheathed Cable
Cable Size (mm2)	Conductor structure (No./mm)	Cable OD (mm)	Copper weight (KG/KM)	Cable Weight (KG/KM)
2 x 1,5	30 x 0,26	8,2	69	103
3 x 1,5	30 x 0,26	8,6	85	128
4 x 1,5	30 x 0,26	9,4	103	158
5 x 1,5	30 x 0,26	10,2	127	188
7 x 1,5	30 x 0,26	11,2	162	250
12 x 1,5	30 x 0,26	15,4	253	433
3 x 2,5	50 x 0,26	10,3	127	189
4 x 2,5	50 x 0,26	11,4	153	249
5 x 2,5	50 x 0,26	12,4	184	293
