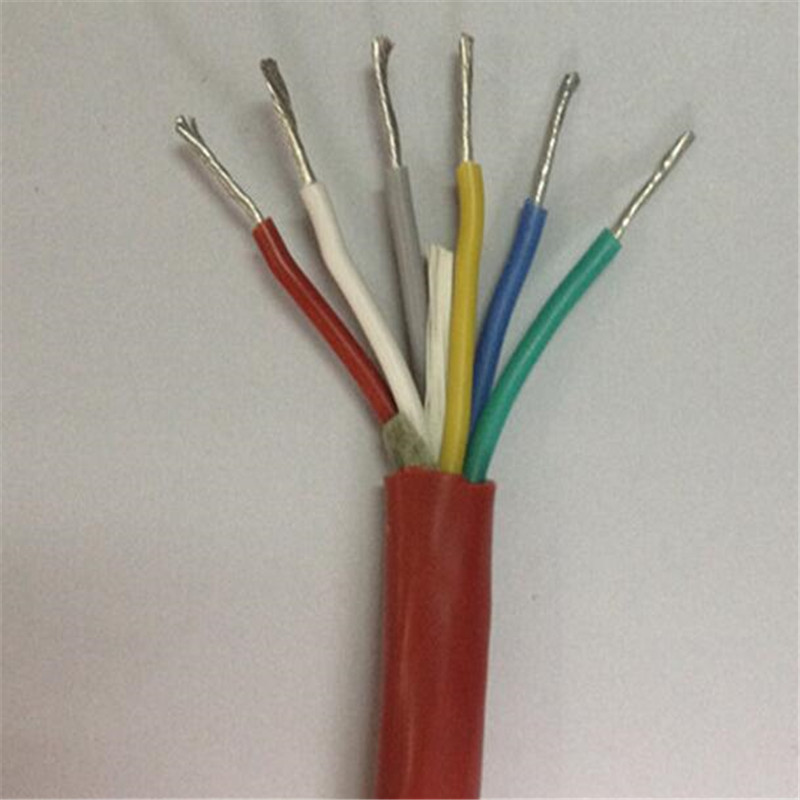

Multi Core Flexible Control Silicone Rubber Electronic Cable
 |
Product Name:
Multi Core Flexible Control Silicone Rubber Electronic Cable
Number :
 |
Product Description:
Multi Core Flexible Control Silicone Rubber Electronic Cable
Application
Silicone cables were evolved for use wherever insulation is subjected to extreme temperature changes. They are heat-resistant for permanent temperature up to +180°C,
for short time operation up to +220°C. The good performance of the environmental resistant properties means that silicone cables can be used at temperatures down to -60°C.
Cable structure
Conductor: Flexible tinned copper conductors to DIN VDE 0295 , BS 6360 and IEC 60228 Insulation: Silicone rubber.
Insulation: Silicone rubber.
Characteristics of cable
Continuous working temperature :
-60°C to +180°C. Max: at +220°C.
Minimum bending radius 7.5*OD
Resistance to sunlight.
Halogen-free.
Does not spread flame.
Working Voltage:300/500 V
Test Voltage:2000 V
Multi Core Flexible Control Silicone Rubber Electronic Cable
Multi Core Flexible Control Silicone Rubber Electronic Cable
|
Cable Size (mm2) |
Conductor (No./mm) |
Cable OD (mm) |
Copper weight (KG/KM) |
Cable Weight (KG/KM) |
| 2 x 2,5 | 50 x 0,26 | 9,2 | 50,0 | 146,0 |
| 3 x 2,5 | 50 x 0,26 | 9,7 | 75,0 | 179,0 |
| 4 x 2,5 | 50 x 0,26 | 10,6 | 100,0 | 222,0 |
| 5 x 2,5 | 50 x 0,26 | 11,6 | 125,0 | 268,0 |
| 7 x 2,5 | 50 x 0,26 | 12,6 | 175,0 | 339,0 |
| 12 x 2,5 | 50 x 0,26 | 17,1 | 300,0 | 609,0 |
