180oC Silicone Rubber Flexible Electric Wire Cables

Product Name:

180oC Silicone Rubber Flexible Electric Wire Cables

Number :

Product Description:

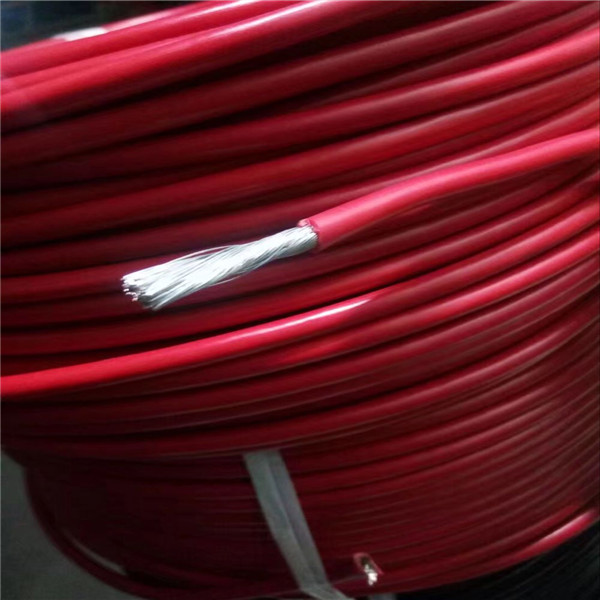

180oC Silicone Rubber Flexible Electric Wire Cables

Application

Silicone rubber insulated cables are intended for use wherever insulation is subjected to extreme temperature changes.
These cables are highly flexible and their electrical and mechanical properties remain unaltered with time both at high and
low temperatures, heat-resistant up to 180oC. Specially recommended for: household appliances, cooking surfaces, heating
apparatus, industrial converters, radiators, ovens and ventilators, electric motors, lighting (halogen lamps etc.), high voltage
electrical cabins and circuits, civil and industrial plant, the automobile industry, metallurgical facilities, steel mills, hot rolling mills
and casting houses.

Construction

Conductors: Annealed flexible stranded tin coated copper class 5 to DIN EN 60228

Separator: If needed suitable tape separator between the conductor and insulation

Insulation: Special silicone compound type EI2

Circuit identification: Natural, Green/yellow, Blue, Black, Brown or others colours

Minimum bending radius: 4xcable diameter

Flame propagation: IEC 60332-1-2:2004 ,EN 60332-1-2:2004.

Silicone Extra Flexible Insulated Wire
AWG	Conductor No./Dia	Overall Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Packing Length(metre)
30	7/0.103	0.31	0.76	1.83	610
28	7/0.127	0.38	0.76	1.9	610
26	7/0.160	0.49	0.76	2.01	305
24	7/0.203	0.61	0.76	2.13	305
22	7/0.254	0.76	0.76	2.28	305
20	7/0.310	0.94	0.76	2.47	305
18	7/0.39	1.17	0.76	2.71	305
16	7/0.5	1.5	0.76	3.02	305
