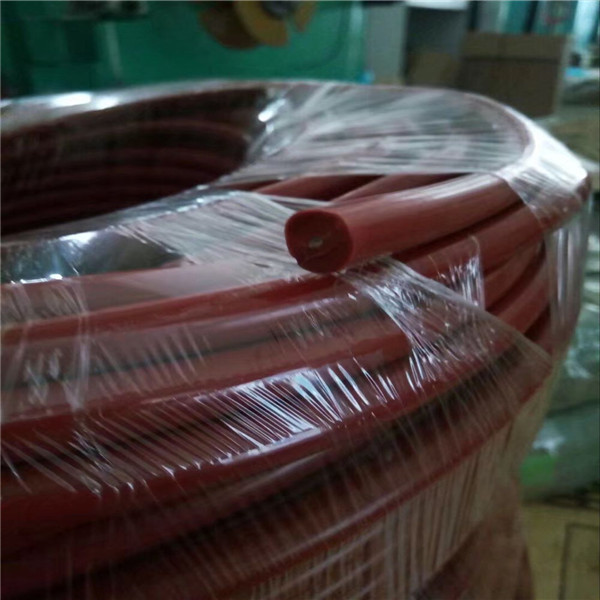

Flexible HV Silicone Rubber Wire

Product Name:

Flexible HV Silicone Rubber Wire

Number :

Product Description:

1.Description:

Voltage:10KV 20KV 30KV 50KV HV Silicone wire

Temperature Ratings: -100ºC~+250ºC

2.Cable Structure:

Conductor: Annealed Copper,Tinned Copper, Silver plated Copper wire

Insulation: Silicone Rubber

If need, as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded

Sheathing:Silicone Rubber

3.Standard:

1).UL ,IEC60502 BS ASTM

2).Different specification and standard can be customized

Flexible HV Silicone Rubber Wire
Conductor			Insulation
			3KV		6KV		10KV
AWG	Core No. /Dia. (No./mm)	Overall Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)	Insulation Thickness (mm)	Overall Diameter (mm)
26	7*0.15	0.49	0.5	1.49	0.7	1.89	1	2.49
24	7*0.20	0.6	0.5	1.6	0.7	2	1	2.6
22	7*0.26	0.78	0.5	1.76	0.7	2.14	1	2.78
20	7*0.30	0.91	0.5	1.91	0.7	2.31	1	2.91
18	7*0.40	1.17	0.5	2.17	0.7	2.57	1	3.17
16	7*0.50	1.5	0.5	2.5	0.7	2.9	1	3.5
14	43*0.25	1.83	0.6	3.03	0.8	3.43	1.2	4.23
