Product Name:

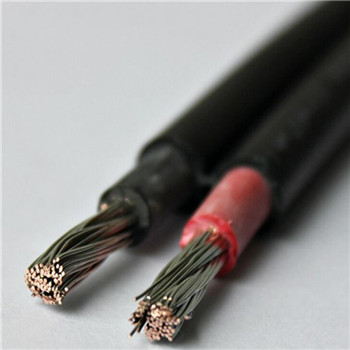

2*4mm dc solar cable for solar panel system
Number :
 |
|
solar cable specifications |
|
|
Core Conductor: |
Tinned annealed copper(stranded core) |
|
Popular Sizes: |
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
|
Cable Conductor: |
Stranded tinned annealed copper |
|
Insulation: |
XLPE |
|
Jacket: |
XLPE(black, red) |
|
Nominal Volvatage: |
Uo/U= 600/1000VAC, 1000/1800VDC |
|
Test Voltage: |
6500V, 50HZ, 5Min |
|
Fire Performance: |
IEC 60332-1, UL1581 VW-1 |
|
Bending Radius |
Fixed installation>4X, Occasionally moved>5X |
|
Twin Core Solar cable |
||||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Approx. Weight (kg/km) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
2×2.5 |
49/0.25 |
0.7 |
0.8 |
5.0±0.3×10.6±0.3 |
100 |
8.21 |
|
2×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3×13.8±0.3 |
143 |
5.09 |
|
2×6 |
84/0.30 |
0.8 |
1.0 |
7.2±0.3×15.3±0.3 |
194 |
3.39 |
|
2×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3×19.2±0.3 |
320 |
1.95 |
