Product Name:
UV twin core 2*6mm 2*4mm dc solar cable for solar panel system
Number :
 |
|
solar cable specifications |
|
|
Core Conductor: |
Tinned annealed copper(stranded core) |
|
Popular Sizes: |
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
|
Cable Conductor: |
Stranded tinned annealed copper |
|
Insulation: |
XLPE |
|
Jacket: |
XLPE(black, red) |
|
Nominal Volvatage: |
Uo/U= 600/1000VAC, 1000/1800VDC |
|
Test Voltage: |
6500V, 50HZ, 5Min |
|
Fire Performance: |
IEC 60332-1, UL1581 VW-1 |
|
Bending Radius |
Fixed installation>4X, Occasionally moved>5X |

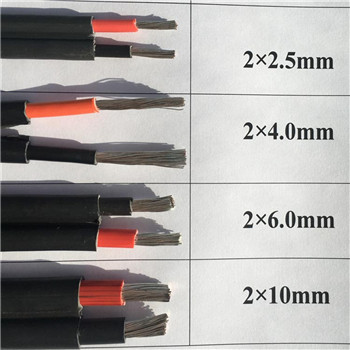

UV twin core 2*6mm 2*4mm dc solar cable for solar panel system
|
Twin Core Solar cable |
|||||||
|
Cable Type |
Nominal area |
Core construction |
Conductor Dia |
Outer Dia |
Max. Conductor Resis(20ºC) |
Rated voltage |
Rated current |
|
(mm2) |
Strand/Dia (mm) |
mm |
mm |
Ω/Km |
AC/DC(V) |
(A) |
|
|
2x1.5mm2 |
1.5 |
30X0.25 |
1.6 |
5.80*9.30 |
13.9 |
1000/1800 |
20 |
|
2x2.5mm2 |
2.5 |
48X0.25 |
2 |
6.20*9.90 |
8.06 |
1000/1800 |
30 |
|
2x4.0mm2 |
4 |
56X0.30 |
2.6 |
6.90*11.30 |
4.97 |
1000/1800 |
50 |
