Product Name:

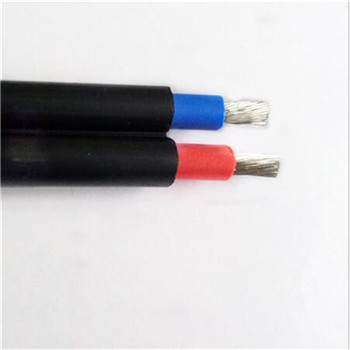

mc3 mc4 solar pv connector cable 1.5mm, 2.5mm TUV approval
Number :
 |
(1)Conductor: Tinned annealed copper wire
(2)Insulation: 120Degree XLPE
(3)Jacket: 120Degree XLPE
(4)Color: Core: black Jacket: black
Rated Voltage:600/1000V
Model: PV1-F
Certificate: TUV UL CCC CSA
Nominal cross section of conductor (mm2):
1.5, 2.5, 4, 6, 10, 6, 25, 35
|
Single-Core Solar Cable |
||||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Approx. Weight (kg/km) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
1×2.5 |
49/0.25 |
0.8 |
0.8 |
5.4±0.3 |
49 |
8.21 |
|
1×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3 |
71 |
5.09 |
|
1×6 |
84/0.30 |
0.8 |
0.9 |
6.8±0.3 |
94 |
3.39 |
|
1×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3 |
155 |
1.95 |
|
1×16 |
126/0.40 |
1.0 |
1.0 |
10.0±0.3 |
215 |
1.24 |
|
1×25 |
196/0.40 |
1.2 |
1.2 |
12.2±0.5 |
302 |
0.795 |
|
1×35 |
276/0.40 |
1.2 |
1.2 |
13.6±0.5 |
445 |
0.565 |
