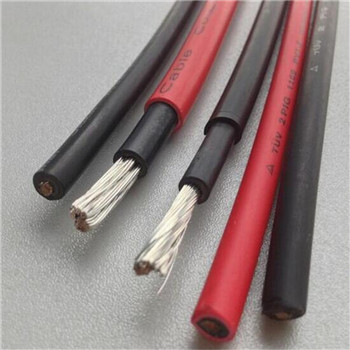

TUV certificate 4mm Single Core Cable 6mm 10mm solar pv cable with MC4 connector
 |
Product Name:
TUV certificate 4mm Single Core Cable 6mm 10mm solar pv cable with MC4 connector
Number :
 |
Product Description:
|
solar cable specifications |
|
|
Core Conductor: |
Tinned annealed copper(stranded core) |
|
Popular Sizes: |
1x2.5mm2,1x4mm2,1x6mm2,1x10mm2 2x2.5mm2,2x4mm2,2x6mm2,2x10mm2 |
|
Cable Conductor: |
Stranded tinned annealed copper |
|
Insulation: |
XLPE |
|
Jacket: |
XLPE(black, red) |
|
Nominal Volvatage: |
Uo/U= 600/1000VAC, 1000/1800VDC |
|
Test Voltage: |
6500V, 50HZ, 5Min |
|
Fire Performance: |
IEC 60332-1, UL1581 VW-1 |
|
Bending Radius |
Fixed installation>4X, Occasionally moved>5X |
|
Single-Core Solar Cable |
||||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Approx. Weight (kg/km) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
1×4 |
56/0.30 |
0.8 |
0.8 |
5.8±0.3 |
68 |
4.95 |
|
1×6 |
84/0.30 |
0.8 |
0.9 |
6.6±0.3 |
94 |
3.30 |
