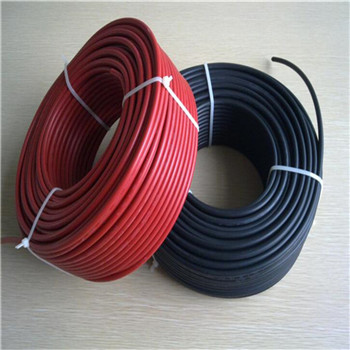

single core 600v 12AWG pv cable pv1-f
 |
Product Name:
single core 600v 12AWG pv cable pv1-f
Number :
 |
Product Description:
Product structure:
(1)Conductor: Tinned annealed copper wire
(2)Insulation: 120Degree XLPE
(3)Jacket: 120Degree XLPE
(4)Color: Core: black Jacket: black
Rated Voltage:600/1000V
Model: PV1-F
Certificate: TUV UL CCC CSA
Nominal cross section of conductor (mm2):
1.5, 2.5, 4, 6, 10, 6, 25, 35
|
Solar Cable |
||||
|
Size (AWG) |
Conductor Strand (mm) |
600V Cable OD (mm) |
1000V & 2000V Cable OD (mm) |
Max DC Resistance (20°C) (Ω/km) |
|
|
|
|
|
|
|
12 |
65/0.254 |
5.4 |
6.2 |
5.64 |
|
10 |
105/0.254 |
6.2 |
6.9 |
3.546 |
|
8 |
168/0.254 |
7.9 |
8.4 |
2.23 |
|
6 |
266/0.254 |
9.8 |
10.3 |
1.403 |
|
4 |
420/0.254 |
11.7 |
11.7 |
0.882 |
|
2 |
665/0.254 |
13.3 |
13.4 |
0.5548 |
|
1 |
836/0.254 |
15.2 |
16.1 |
0.4398 |
