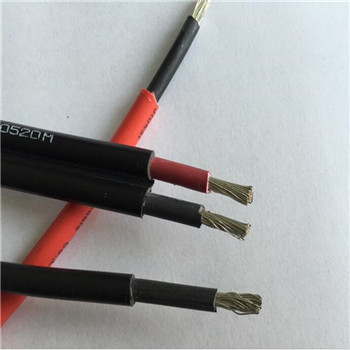

Dual-Core Solar Cable 2.5mm2 4mm2 6mm2 10mm2 TUV Certificate
 |
Product Name:
Dual-Core Solar Cable 2.5mm2 4mm2 6mm2 10mm2 TUV Certificate
Number :
 |
Product Description:
Dual Wall insulation , Electron beam cross-linked
Excellent reslstance to U.V.,water.ozone, flulds; salt.General Weathering
Excellent resistance to abrasion
Halogen free,flame retardant,low toxicity
Excelent flexibility and strippn performance
High current carrying capacity
TUV and UL approved
Dual-Core Solar Cable 2.5mm2 4mm2 6mm2 10mm2 TUV Certificate
|
Twin Core Solar cable |
||||||
|
Cable Size (mm2) |
Conductor Strand (mm) |
Nominal insulation thickness (mm) |
Nominal sheath thickness (mm) |
Overall Dia (mm) |
Approx. Weight (kg/km) |
Max. Conductor Resis(20ºC) (Ω/Km) |
|
2×2.5 |
49/0.25 |
0.7 |
0.8 |
5.0±0.3×10.6±0.3 |
100 |
8.21 |
|
2×4 |
56/0.30 |
0.8 |
0.9 |
6.2±0.3×13.8±0.3 |
143 |
5.09 |
|
2×6 |
84/0.30 |
0.8 |
1.0 |
7.2±0.3×15.3±0.3 |
194 |
3.39 |
|
2×10 |
84/0.40 |
1.0 |
1.0 |
9.0±0.3×19.2±0.3 |
320 |
1.95 |
