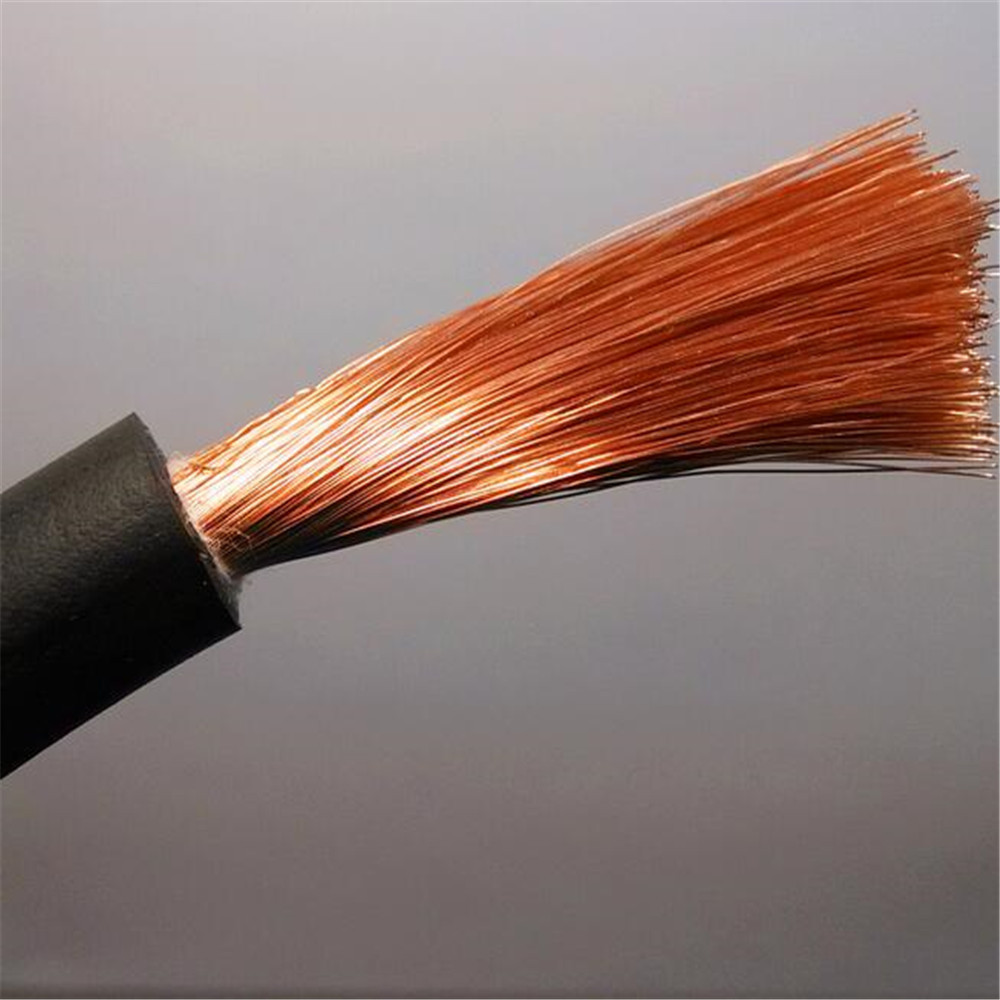

Cu/CCA Conductor Rubber /PVC Insulate Welding Cable/Machine Cable

Product Name:

Cu/CCA Conductor Rubber /PVC Insulate Welding Cable/Machine Cable

Number :

Product Description:

Application

Welding cable suitable for connecting cable between the hand electrode and the welding apparatus. Suitable for flexible use under adverse conditions such as automobile and ship manufacturing conveyors welding robots assembly lines etc. This cable maintains its high flexibility even when exposed to inert gas, ozone, light, oil etc. Suitable for use in dry and moist rooms as well as for outdoor installation.

Construction

Conductor:Plain copper conductors

Separator:Polyester foil or tape

Outer Sheath:Neoprene black

Stranding H01N2-D:According to VDE 0295 class 5

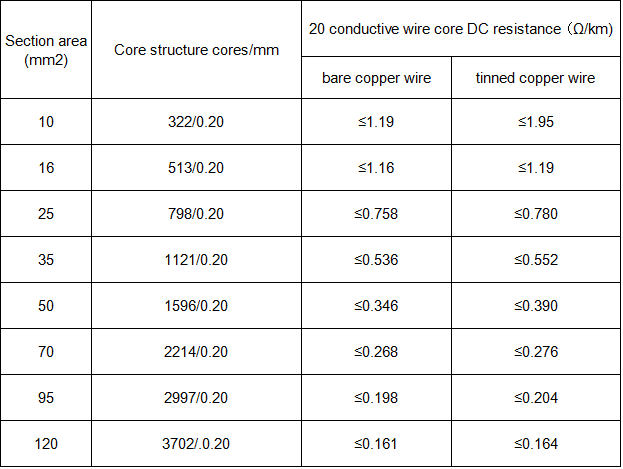

Technical Information

Rated Voltage:100V

Test Voltage: 1000V

Temperature Range:

Flexing: Static:

-25°C to + 80°C

-40°C to +80°C

Bending Radius:

H01N2-D: 12 x Ø

H01N2-E: 10 x Ø

Feature
1.High flexibility properties.
2.Outstanding toughness and durability.
3.High resistance to cuts, tears and abrasion.
4.Resistance to oil, solvents and chemicals.
5.The permissible continuous operating temperature is 65°C
