Usage/Application of welding cable:

Apply to the secondary side wiring and connecting welding clamp dedicated cables, the exchange does not exceed the rated voltage 200 V DC and pulse of 400 V peak.





Structure:

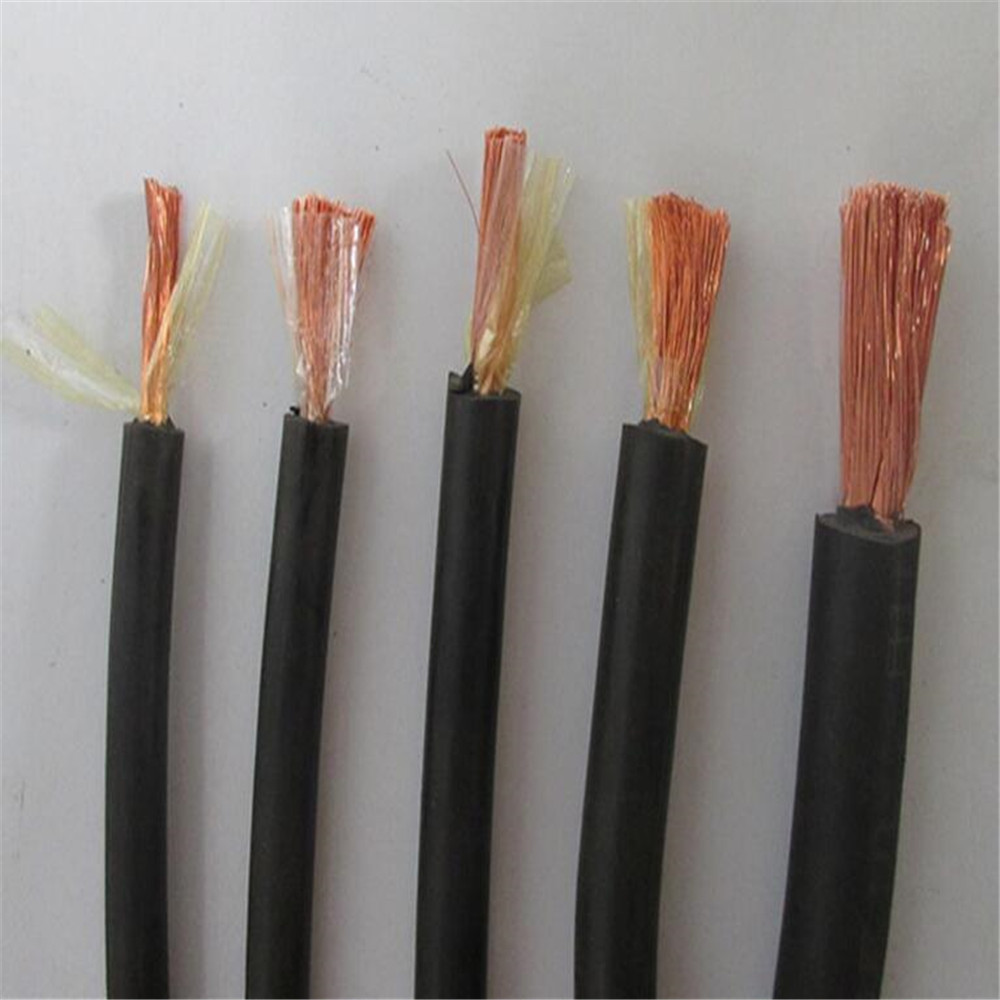

Conductor:Bare annealed copper wire,99.99% pure copper wire or Tinned Copper wire

Insulation: Neoprene or other synthetic rubber elastomer sheathed welding cable,EPR,EPDM

Features:

1. Soft Cables, having good bending properties

2. The sheath material made of natural rubber or chloroprene rubber mixture,

can be applied to different situations, good electrical physical properties

3. Chloroprene rubber mixture with heat oil and retardant performance

4. The maximum continuous operating temperature of the cable is 65 ℃

5.Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
