Zhengzhou Wubai Cable and Wire Co.,Ltd

 Application

Apply to the secondary side wiring and connecting welding clamp dedicated cables, the exchange does not exceed the rated voltage 200 V DC and pulse of 400 V peak.

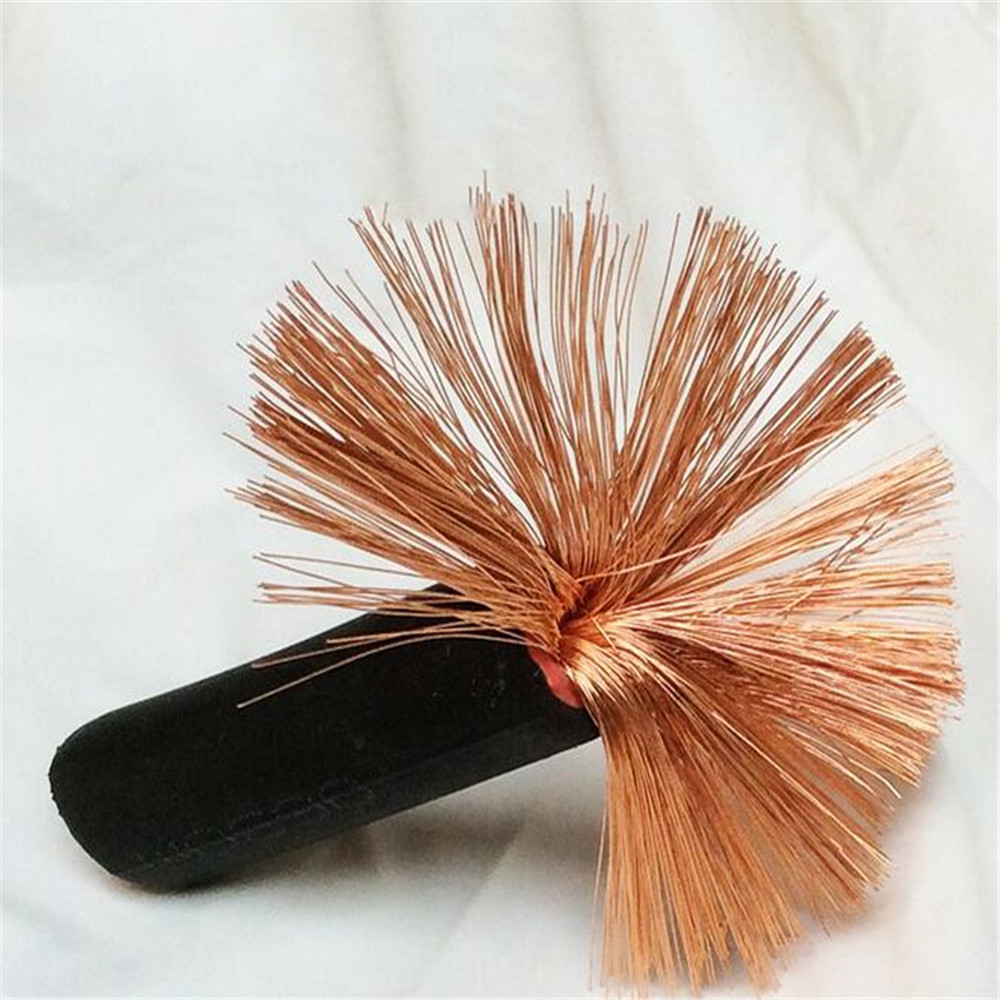

Single core structure, a multi-unit complex cutter made of soft wire. Conductive wire core heat-resistant polyester film used outside insulation wrap packages, with the outermost layer of insulation made of rubber sheathing as a protective layer.



Intrudction:

Welding Cables are suitable for the secondary side voltage exchange does not exceed 200 V and 400 V peak pulsating DC welding machine with secondary side wiring and connecting welding clamp purposes.

Features:

1.Soft Cables, having good bending properties

2.The sheath material made of natural rubber or chloroprene rubber mixture,

can be applied to different situations, good electrical physical properties

3.Chloroprene rubber mixture with heat oil and retardant performance

4.The maximum continuous operating temperature of the cable is 65 ℃

5.Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
