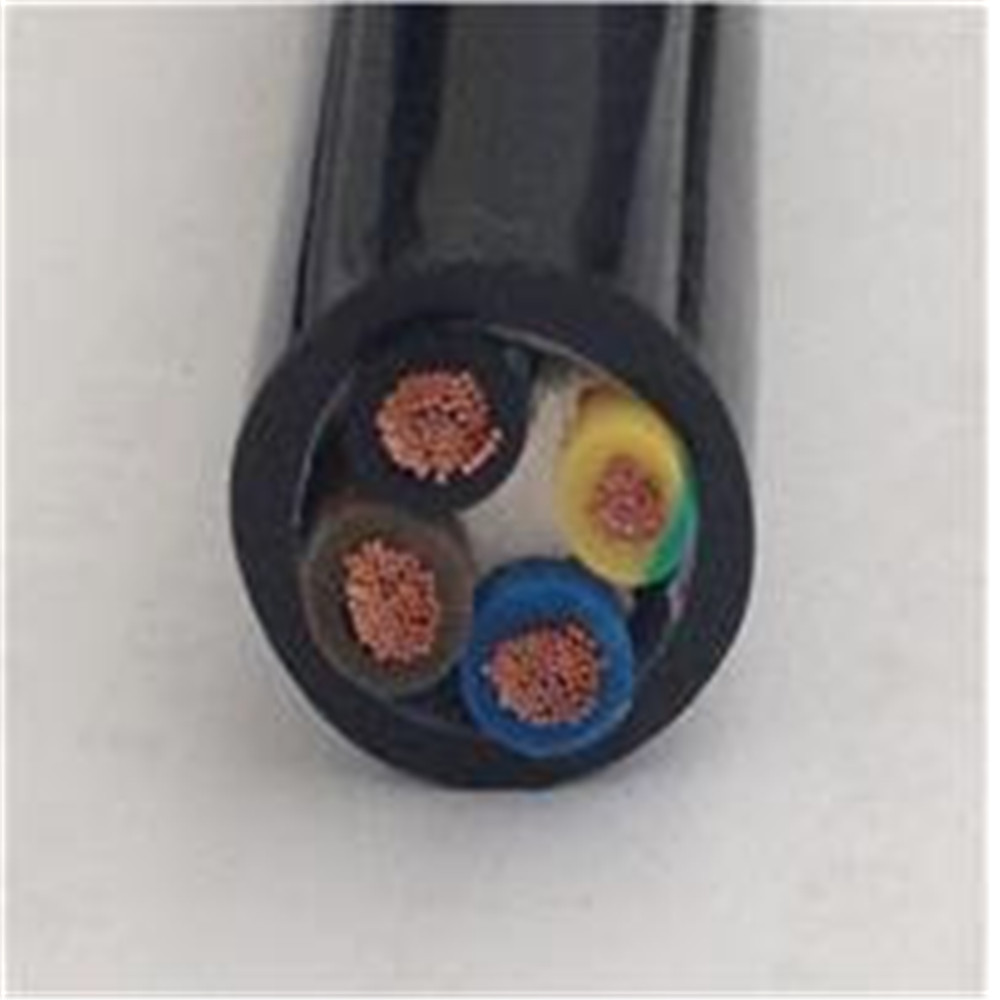

H07RN-F is designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy duty Harmonized cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant. Typical applications of the H07RN-F cable include transformers, pumps, welders, grinders, temporary lighting cable and feed cables to heavy mobile equipment.

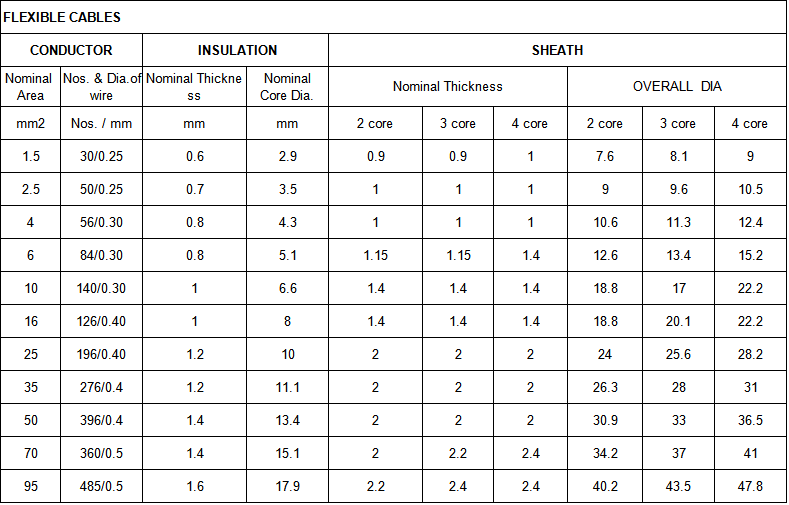

Construction

Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)

Insulation:EPR (Ethylene Propylene Rubber)

Sheath:Black neoprene (PCP) outer sheath to BS7919:2001

Conductor Identification

Single Core:Black

Two Core:Brown and blue

Three Core:Brown, blue and green/yellow

Four Core:Brown, black, grey and green/yellow

Five Core:Brown, blue, black, grey and green/yellow
