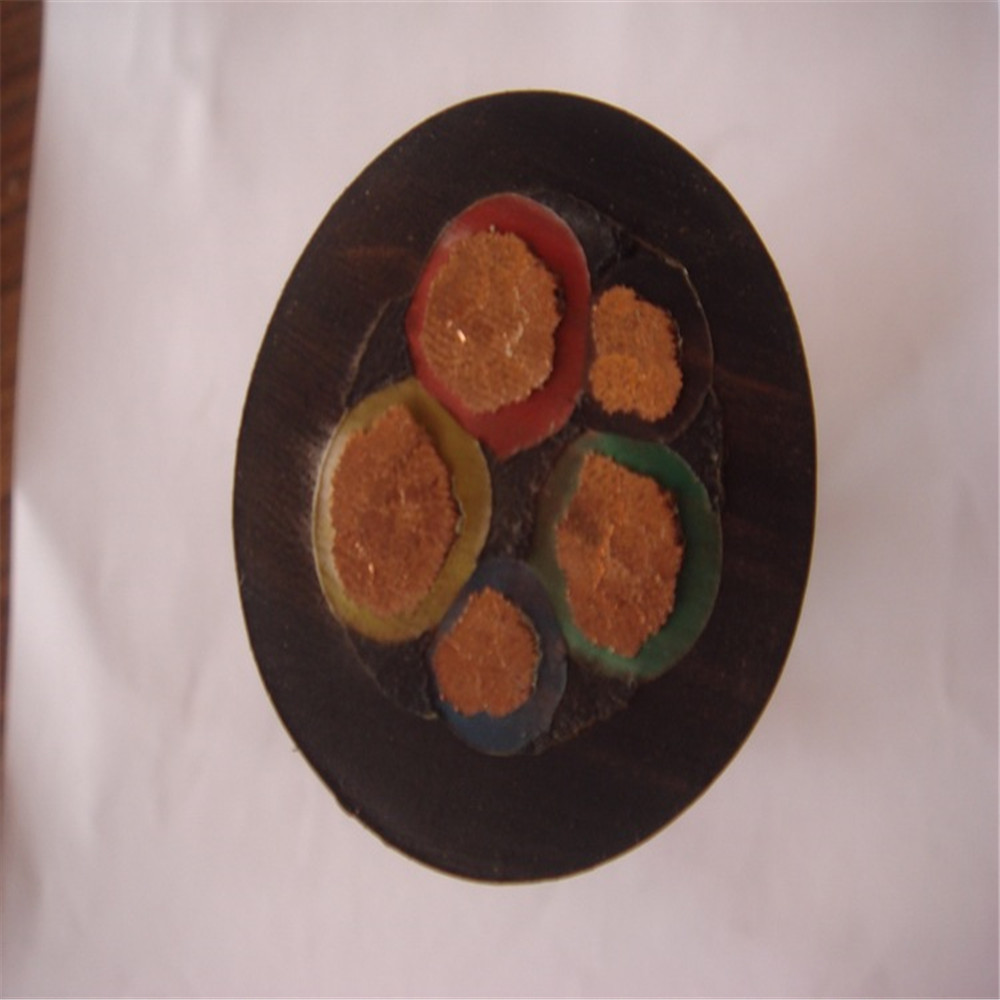

Rubber insulation Tower Crane Cable 450/750V
 |
Product Name:
Rubber insulation Tower Crane Cable 450/750V
Number :
 |
Product Description:
Rubber insulation Tower Crane Cable 450/750V
Application:
Very flexible cable for use on cable tender systems, festooned cable applications, pendant cable drops, overhead bridge cranes, warehouse stacking cranes, car dumper, poke car, moving trucking, car puller, reel trailer, crane, or any tough industrial application that requires both strength and flexibility. Approved for use in cable trays, in raceways supported by a messenger wire, in open air, and for direct burial applications.
Suitable for AC rated voltage 300/500V,450/750V,And the following tower cranes or other moving electrical equipment power control.
Very flexible cable for use on cable tender systems, festooned cable applications, pendant cable drops, overhead bridge cranes, warehouse stacking cranes, car dumper, poke car, moving trucking, car puller, reel trailer, crane, or any tough industrial application that requires both strength and flexibility. Approved for use in cable trays, in raceways supported by a messenger wire, in open air, and for direct burial applications.
Suitable for AC rated voltage 300/500V,450/750V,And the following tower cranes or other moving electrical equipment power control.
Construction
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow
Technical Information
Rated Voltage:450/750V
Test Voltage:3000V
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x Ø for cables not exceeding 25mm
Static:8 x Ø for cables exceeding 25mm
Flexing:15 x Ø
Rubber insulation Tower Crane Cable 450/750V
|
Model
|
Specification(mm2)
|
Overall Dia (mm)
|
Weight(kg)
|
Max Electrical Resistance at 20°C(Ω/KM)
|
|
YCW
|
3*10
|
19
|
130
|
1.91
|
|
YCW
|
3*16
|
24
|
187
|
1.21
|
|
YCW
|
3*25
|
27
|
293
|
0.78
|
|
YCW
|
3*35
|
30
|
333
|
0.554
|
|
YCW
|
3*10+1*6
|
21
|
163
|
1.91/3.3
|
|
YCW
|
3*16+1*6
|
25
|
245
|
1.21/3.3
|
|
YCW
|
3*25+1*10
|
30
|
330
|
0.78/1.91
|
|
YCW
|
3*35+1*10
|
33
|
479
|
0.554/1.91
|
|
YCW
|
3*10+2*6
|
23
|
185
|
|
|
|
|
1.91/3.3
|
FEATURES & PROPERTIES :
Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
Excellent Electrical Properties. Designed for heavy duty use.
Cur, tear & abrasion resistant.
Exceptional long term performance.
Excellent resistant to oils, acids, chemicals, ozone & solvents.
Excellent Impact Resistant.
Excellent Weather Resistant.
Performs & Looks like Vulcanize Rubber.
