H05RR-F,H05RN-F light-medium duty rubber flexible cable
 |
Product Name:
H05RR-F,H05RN-F light-medium duty rubber flexible cable
Number :
 |
Product Description:
H05RR-F,H05RN-F light-medium duty rubber flexible cable

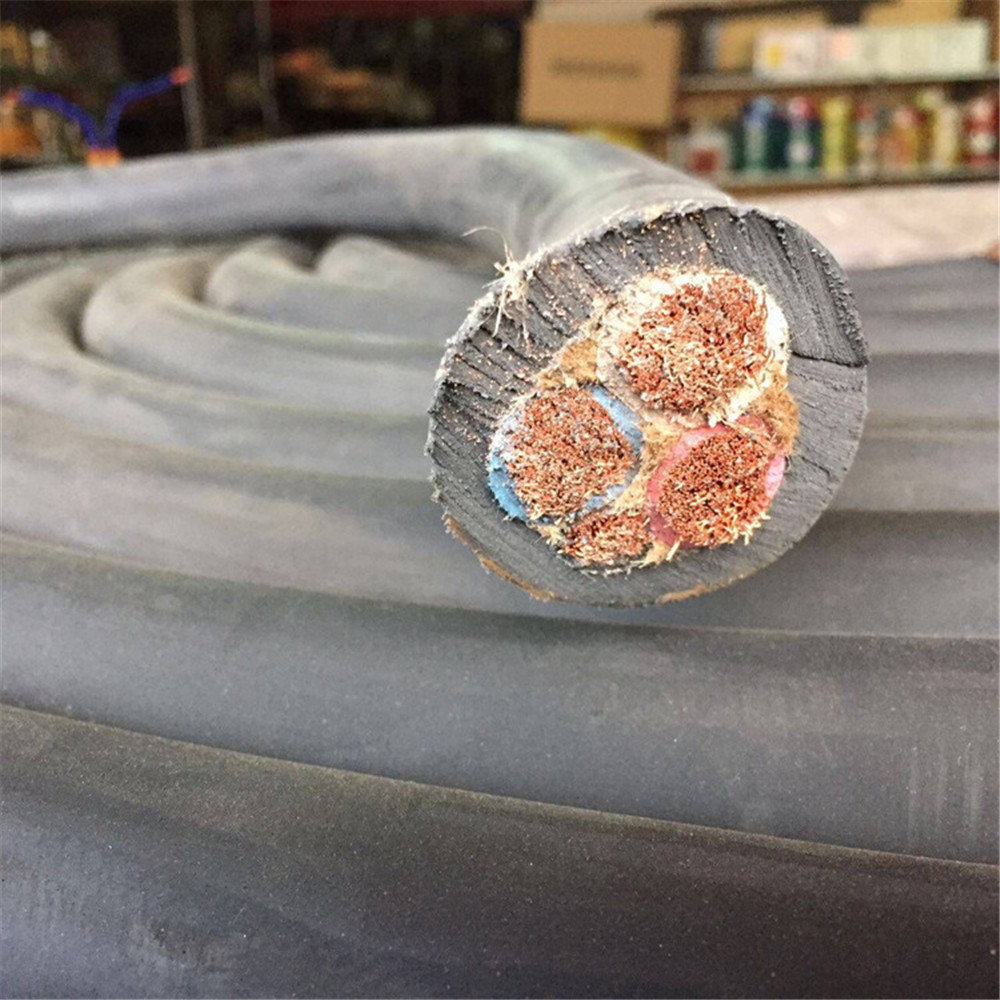

Construction
stranded plain or tinned copper conductors
rubber core insulation
H05RR-F = black natural or synthetic rubber outer sheath
H05RN-F = black polychloroprene rubber (PCP neoprene) outer sheath
Application
H05RR-F,H05RN-F light-medium duty rubber flexible cable is designed for the connection of electrical appliances.
|
Model
|
Name
|
Application
|
|
HO5RR-F
|
Lightweight cable designed to withstand only light mechanical stress.
|
Suitable for internal applications in dry and damp areas and can be used temporarily outdoors. Commonly connected to a variety of handheld household items such as office and kitchen appliances. Not for industrial/commercial or agricultural usage. |
|
HO5RN-F
|
Medium duty cable designed to withstand light to medium mechanical stress. |
Suitable for internal or external applications, including in damp or dry areas. Commonly connected to horticulture or workshop tools. Can also be used for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. |
|
H05RR-F,H05RN-F light-medium duty rubber flexible cable
|
|||||||
|
bend radius:
|
3x overall diameter (O/D) fixed, 6x O/D flexing
|
||||||
|
voltage rating:
|
300/500V operating, 2000V test
|
||||||
|
temperature range:
|
-25°C to +60°C operating
|
||||||
|
core identification:
|
2 cores = coloured to VDE 0293 without earth (green/yellow)
|
||||||
|
3-5 cores = as above with earth (inc. in core count),
|
|||||||
|
Electric Flexible Rubber Insulated Cable (H05RR-F)
|
|||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
|
H05RR-F
|
2× 0.75
|
24/0.2
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
|
H05RR-F
|
2× 1.0
|
32/0.2
|
0.6
|
0.9
|
6.7± 0.2
|
19.5
|
|
|
H05RR-F
|
2× 1.5
|
30/0.25
|
0.8
|
1.0
|
8.3± 0.3
|
13.3
|
|
|
H05RR-F
|
2× 2.5
|
49/0.25
|
0.9
|
1.1
|
10± 0.2
|
7.98
|
|
|
H05RR-F
|
2× 4.0
|
56/0.30
|
1.0
|
1.2
|
11.7± 0.4
|
4.95
|
|
|
H05RR-F
|
2× 6.0
|
84/0.30
|
1.0
|
1.3
|
13± 0.4
|
3.30
|
|
|
H05RR-F
|
3× 0.75
|
24/0.2
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
|
H05RR-F
|
3× 1.0
|
32/0.2
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
|
H05RR-F
|
3× 1.5
|
30/0.25
|
0.8
|
1.0
|
8.9± 0.3
|
|
|
|
13.3
|
