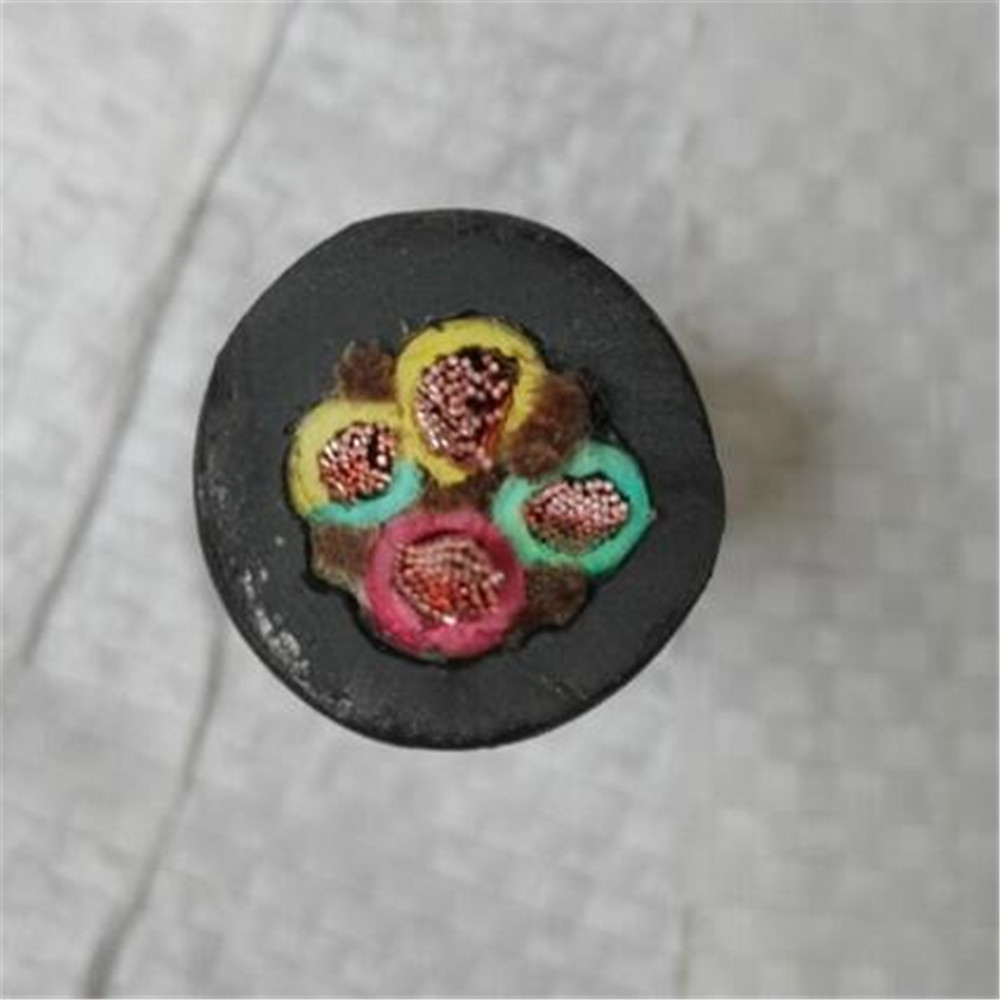

H05RR-F Flexible Rubber Cable 300/500V
 |
Product Name:
H05RR-F Flexible Rubber Cable 300/500V
Number :
 |
Product Description:
H05RR-F Flexible Rubber Cable 300/500V
Product Description
Application
Lightweight and flexible cable for light mechanical stress. Used in a variety of handheld household items such as office and kitchen appliances. Dry and damp rooms and only temporary use outdoors. Not for industrial/commercial or agricultural usage.
Product description
1)Type: H05RR-F
2)Rated voltage: 300/500V
3)Insulation material: EPR/EPDM
4)Jacket material: CPE
5)Executive standard: VDE0282
6)Color
2 cores: Blue and Brown
3 cores: Yellow/Green, Blue and Brown
|
Electric Flexible Rubber Insulated Cable (H05RR-F)
|
||||||
|
Cable Model
|
Conductor Section-area (mm2)
|
Core No. /Dia. (No./mm)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath (mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
H05RR-F
|
2× 0.75
|
24/0.2
|
0.6
|
0.8
|
6.3± 0.2
|
26.0
|
|
H05RR-F
|
2× 1.0
|
32/0.2
|
0.6
|
0.9
|
6.7± 0.2
|
19.5
|
|
H05RR-F
|
2× 1.5
|
30/0.25
|
0.8
|
1.0
|
8.3± 0.3
|
13.3
|
|
H05RR-F
|
2× 2.5
|
49/0.25
|
0.9
|
1.1
|
10± 0.2
|
7.98
|
|
H05RR-F
|
2× 4.0
|
56/0.30
|
1.0
|
1.2
|
11.7± 0.4
|
4.95
|
|
H05RR-F
|
2× 6.0
|
84/0.30
|
1.0
|
1.3
|
13± 0.4
|
3.30
|
|
H05RR-F
|
3× 0.75
|
24/0.2
|
0.6
|
0.9
|
6.8± 0.2
|
26.0
|
|
H05RR-F
|
3× 1.0
|
32/0.2
|
0.6
|
0.9
|
7.2± 0.2
|
19.5
|
|
H05RR-F
|
3× 1.5
|
30/0.25
|
0.8
|
1.0
|
8.9± 0.3
|
13.3
|
|
H05RR-F
|
3× 2.5
|
49/0.25
|
0.9
|
1.1
|
10.5± 0.4
|
7.98
|
|
H05RR-F
|
3× 4.0
|
56/0.30
|
1.0
|
1.2
|
12.4± 0.4
|
4.95
|
|
H05RR-F
|
3× 6.0
|
84/0.30
|
1.0
|
1.3
|
13.8± 0.5
|
3.30
|
|
H05RR-F
|
4× 0.75
|
24/0.2
|
0.6
|
0.9
|
7.5± 0.3
|
26.0
|
|
H05RR-F
|
4× 1.0
|
32/0.2
|
0.6
|
0.9
|
7.8± 0.3
|
19.5
|
|
H05RR-F
|
4× 1.5
|
30/0.25
|
0.8
|
1.1
|
9.9± 0.3
|
13.3
|
|
H05RR-F
|
4× 2.5
|
49/0.25
|
0.9
|
1.2
|
11.8± 0.4
|
7.98
|
|
H05RR-F
|
4× 4.0
|
56/0.30
|
1.0
|
1.3
|
13.8± 0.4
|
4.95
|
|
H05RR-F
|
4× 6.0
|
84/0.30
|
1.0
|
1.4
|
15.4± 0.5
|
3.30
|
|
H05RR-F
|
5× 0.75
|
24/0.2
|
0.6
|
1.0
|
8.4± 0.3
|
26.0
|
|
H05RR-F
|
5× 1.0
|
32/0.2
|
0.6
|
1.0
|
8.4± 0.3
|
19.5
|
|
H05RR-F
|
5× 1.5
|
30/0.25
|
0.8
|
1.1
|
11.8± 0.4
|
13.3
|
|
H05RR-F
|
5× 2.5
|
49/0.25
|
0.9
|
1.3
|
13.2± 0.5
|
7.98
|
|
H05RR-F
|
5× 4.0
|
56/0.30
|
1.0
|
1.4
|
15.3± 0.5
|
4.95
|
|
H05RR-F
|
5× 6.0
|
84/0.30
|
1.0
|
1.6
|
17.3± 0.5
|
|
|
3.30
|
