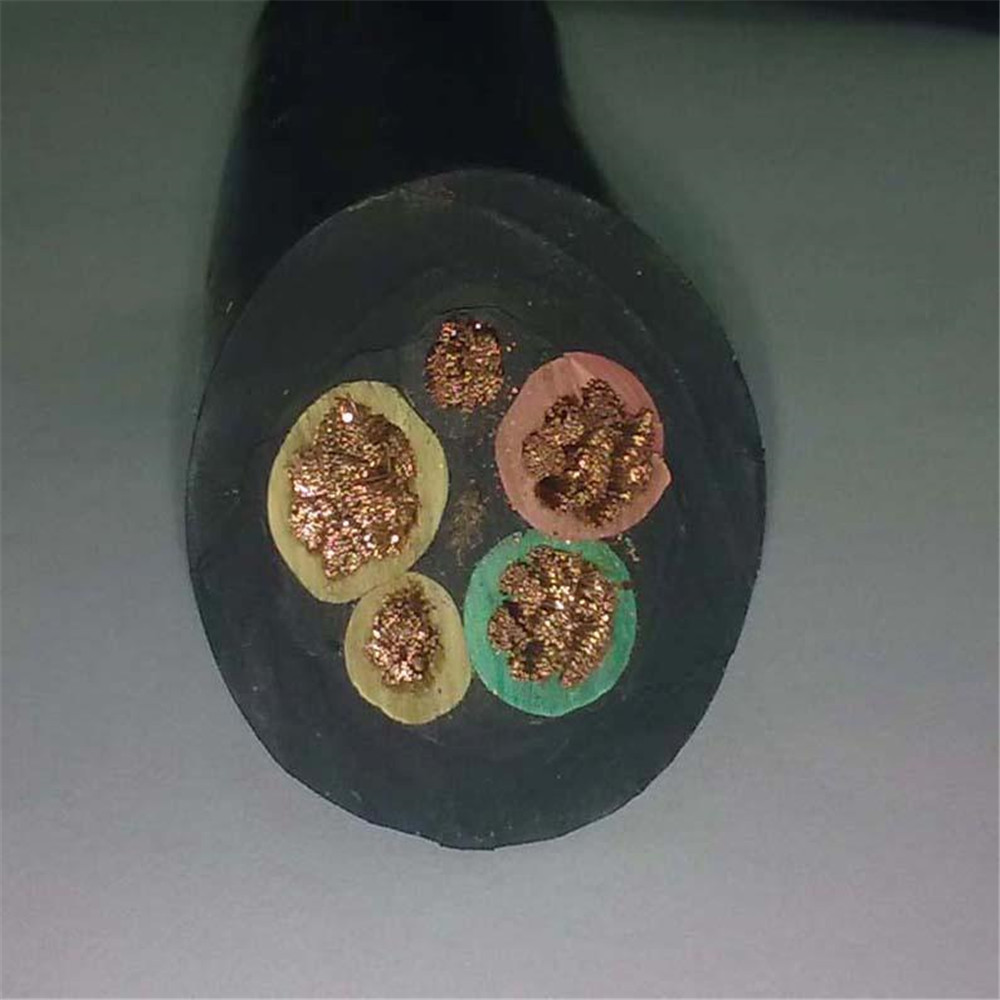

YC/YZ/YCW Flexible Rubber Cable
 |
Product Name:
YC/YZ/YCW Flexible Rubber Cable
Number :
 |
Product Description:
YC/YZ/YCW Flexible Rubber Cable
Specifications
Rubber cable is mainly used in various movable electric equipment, electric equipment bearing large outer mechanical force
Rubber cable is mainly used in various movable electric equipment, electric equipment
Bearing large outer mechanical force, equipment for mine use and electric welding.
This series include:
1) General rubber sheathed flexible cables:
* Common rubber sheathed flexible cables (245IEC53 YZ)
* Common chloroprene cabtyre flexible cables (245IEC57 YZW)
* Medium duty rubber sheathed flexible cables (YZ YZW)
* Heavy duty rubber sheathed flexible cables (245IEC66 YCW)
2) Rubber sheathed flexible mine cables:
* Rubber sheathed, flexible coal cutter cables
* Screened, rubber sheathed, flexible cutter cables
* Electric drill cables for mine
* Rubber sheathed, moveable and flexible mine cables
More description of the above two type
Rated voltage: 300/500V, 450/750V
Number of cores: 1~63)
Welding cable
Welding cable
* Rubber sheathed welding cable 245 IEC81
* Rubber sheathed welding cable which is made of chloroprene or the compositive stretchy
Materials
Materials
Earth voltage of low voltage is no more than AC200V and pulsant DC peak value is
400V Long term permissible working temperature is no more than 65° C
|
Rubber Insulated and Rubber Sheathed Cable
|
||||
|
Conductor Section-area (mm2)
|
Nominal thickness of insulation (mm)
|
Nominal thickness of sheath(mm)
|
Overall Diameter (mm)
|
Max. DC resistance at 20°C(Ω/km)
|
|
1x1.5
|
0.8
|
5.9
|
50
|
13.3
|
|
1x2.5
|
0.9
|
6.5
|
65
|
7.98
|
|
1x4
|
1
|
7.4
|
89
|
4.95
|
|
1x6
|
1
|
8.1
|
115
|
3.3
|
|
1x10
|
1.2
|
10.4
|
190
|
1.91
|
|
1x16
|
1.2
|
11.6
|
259
|
1.21
|
|
1x25
|
1.4
|
13.7
|
375
|
0.78
|
|
1x35
|
1.4
|
15.4
|
492
|
0.554
|
|
1x50
|
1.6
|
17.7
|
675
|
0.386
|
|
1x70
|
1.6
|
20
|
908
|
0.272
|
|
1x95
|
1.8
|
22.1
|
1171
|
0.206
|
|
1x120
|
1.8
|
24.5
|
1445
|
0.161
|
|
1x150
|
2
|
26.9
|
1783
|
0.129
|
